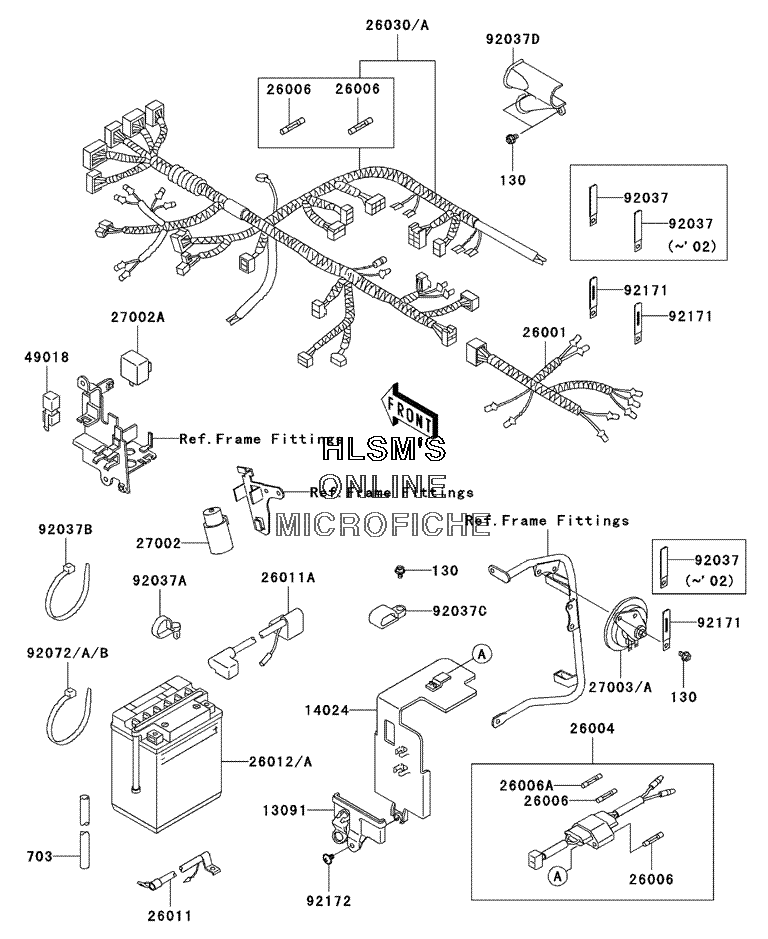

ELECTRICAL - CHASSIS для Kawasaki KLR650 - 2003 года выпуска`
-
№АртикулНазвание
-
130130J0610 BOLT, FLANGEDBOLT, FLANGED
-
703703A08580 TUBE, RUBBER, 8X12X580TUBE, RUBBER, 8X12X580
-
1309113091-1484 HOLDER, BATTERY COVERHOLDER, BATTERY COVER
-
1402414024-1375 COVER, BATTERYCOVER, BATTERY
-
2600126001-1822 HARNESS, REARHARNESS, REAR
-
2600426004-1076 FUSE, ASSY.FUSE, ASSY.
-
2600626006-1002 FUSE, 10A, L=30FUSE, 10A, L=30
-
26006A26006-1056 FUSE, 20A, L=30FUSE, 20A, L=30
-
2601126011-1387 WIRE, LEAD, BATTERY (-)WIRE, LEAD, BATTERY (-)
-
26011A26011-1623 WIRE, LEAD, BATTERY (+)WIRE, LEAD, BATTERY (+)
-
2601226012-0023 BATTERY, FB14L, A2, 12V 14AHBATTERY, FB14L, A2, 12V 14AH
-
26030A26030-1979 HARNESS, MAINHARNESS, MAIN
-
2700227002-1051 RELAY, ASSY.RELAY, ASSY.
-
27002A27002-1053 RELAY, ASSY., TURN SIGNALRELAY, ASSY., TURN SIGNAL
-
27003A27003-1273 HORNHORN
-
4901849018-1052 DIODEDIODE
-
92037A92037-1163 CLAMP, SPEED, L=58CLAMP, SPEED, L=58
-
92037B92037-1173 CLAMPCLAMP
-
92037C92037-1608 CLAMPCLAMP
-
92037D92037-1906 CLAMP, HARNESSCLAMP, HARNESS
-
9207292072-1195 BAND, L=202BAND, L=202
-
92072A92072-1197 BAND, L=365BAND, L=365
-
92072B92072-1237 BAND, L=250BAND, L=250
-
9217192171-1425 CLAMP, WIRING HARNESS, L=60CLAMP, WIRING HARNESS, L=60
-
9217292172-0005 SCREW, 6X10SCREW, 6X10
