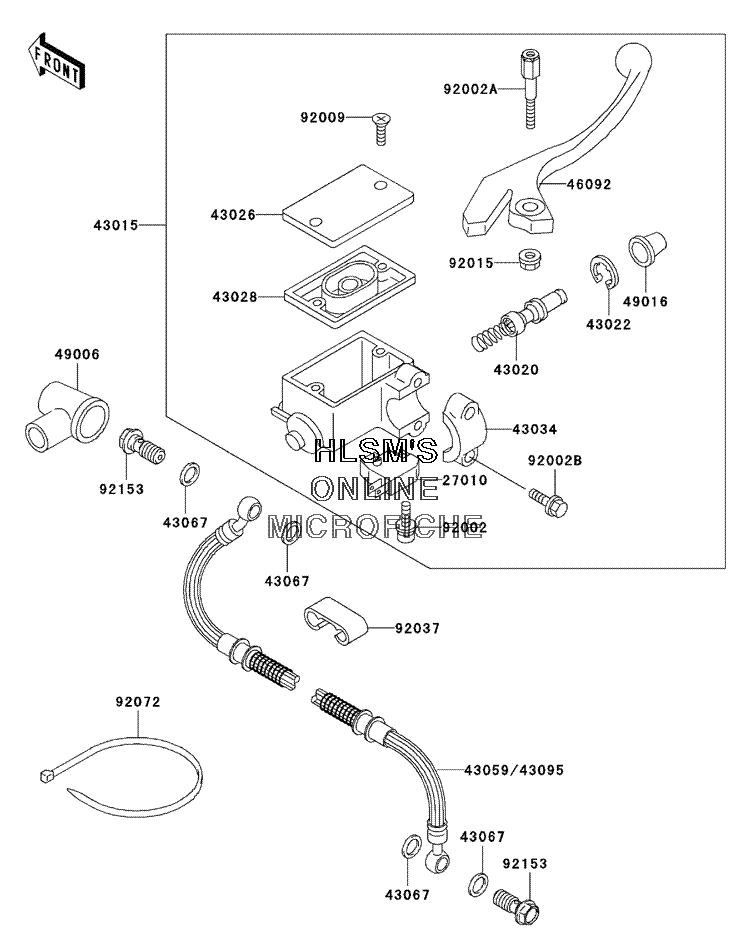

BRAKE - MASTER CYLINDER - FRONT для Kawasaki KLR650 - 2003 года выпуска

  • №
    Артикул
    Название
  • 27010
    27010-1170 SWITCH, BRAKE
    SWITCH, BRAKE
  • 43015
    43015-1475 CYLINDER, ASSY., MASTER, FRONT
    CYLINDER, ASSY., MASTER, FRONT
  • 43020
    43020-1031 PISTON, COMP, BRAKE
    PISTON, COMP, BRAKE
  • 43022
    43022-1010 STOPPER, BRAKE, PISTON
    STOPPER, BRAKE, PISTON
  • 43026
    43026-1074 CAP, BRAKE
    CAP, BRAKE
  • 43028
    43028-1061 DIAPHRAGM
    DIAPHRAGM
  • 43034
    43034-1016 HOLDER, BRAKE, MASTER CYLINDER
    HOLDER, BRAKE, MASTER CYLINDER
  • 43067
    43067-001 WASHER, 10.5X15X1.5
    WASHER, 10.5X15X1.5
  • 43095
    43095-1340 HOSE, BRAKE, FRONT
    HOSE, BRAKE, FRONT
  • 46092
    46092-1135 LEVER, GRIP, FRONT BRAKE
    LEVER, GRIP, FRONT BRAKE
  • 49006
    49006-1040 BOOT, DUST
    BOOT, DUST
  • 49016
    49016-1044 COVER, SEAL, MASTER CYLINDER
    COVER, SEAL, MASTER CYLINDER
  • 92002
    92002-1323 BOLT, SCREW, 4X12
    BOLT, SCREW, 4X12
  • 92002A
    92002-1879 BOLT, LEVER SET
    BOLT, LEVER SET
  • 92002B
    92002-1894 BOLT
    BOLT
  • 92009
    92009-1458 SCREW, 4MM
    SCREW, 4MM
  • 92015
    92015-1233 NUT, FLANGED, 6MM (BLACK)
    NUT, FLANGED, 6MM (BLACK)
  • 92037
    92037-1529 CLAMP, BRAKE HOSE
    CLAMP, BRAKE HOSE
  • 92072
    92072-1197 BAND, L=365
    BAND, L=365
  • 92153
    92153-0627 BOLT, OIL, L=23
    BOLT, OIL, L=23
