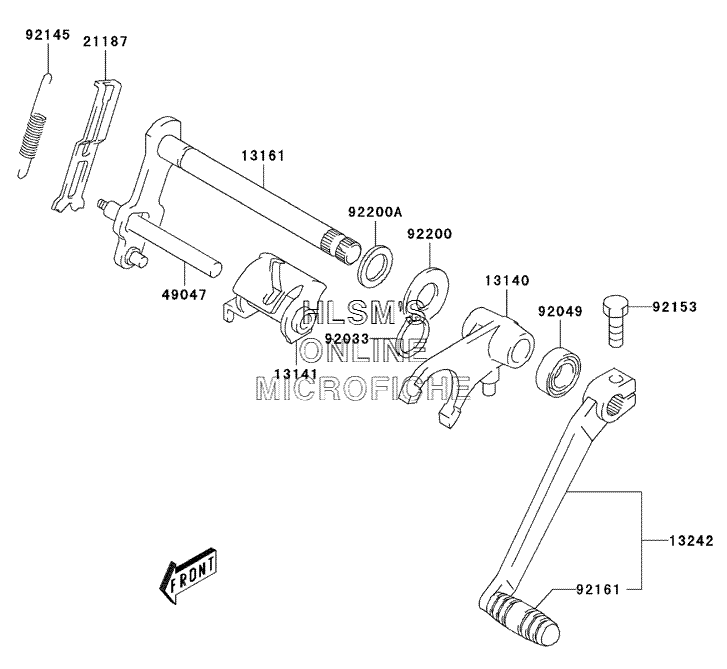

GEAR CHANGE MECHANISM для Kawasaki KDX 50 - 2003 года выпуска`
-
№АртикулНазвание
-
1314013140-S011 FORK, SHIFTFORK, SHIFT
-
1314113141-S006 DRUM, CHANGEDRUM, CHANGE
-
1316113161-S005 LEVER, COMP, CHANGE SHAFTLEVER, COMP, CHANGE SHAFT
-
1324213242-S004 LEVER, ASSY, CHANGELEVER, ASSY, CHANGE
-
2118721187-S007 ARM, ASSY, CAM STOPPERARM, ASSY, CAM STOPPER
-
4904749047-S005 ROD, SHIFTROD, SHIFT
-
9203392033-S023 RING, SNAPRING, SNAP
-
9204992049-S020 SEAL, OIL, 12X22X9SEAL, OIL, 12X22X9
-
9214592145-S116 SPRING, GEAR SHIFT CAMSPRING, GEAR SHIFT CAM
-
9215392153-S127 BOLTBOLT
-
9216192161-S093 DAMPER, PEDALDAMPER, PEDAL
-
9220092200-S170 WASHER, GEAR SHIFT SHAFTWASHER, GEAR SHIFT SHAFT
-
92200A92200-S171 WASHER, GEAR SHIFT SHAFTWASHER, GEAR SHIFT SHAFT
