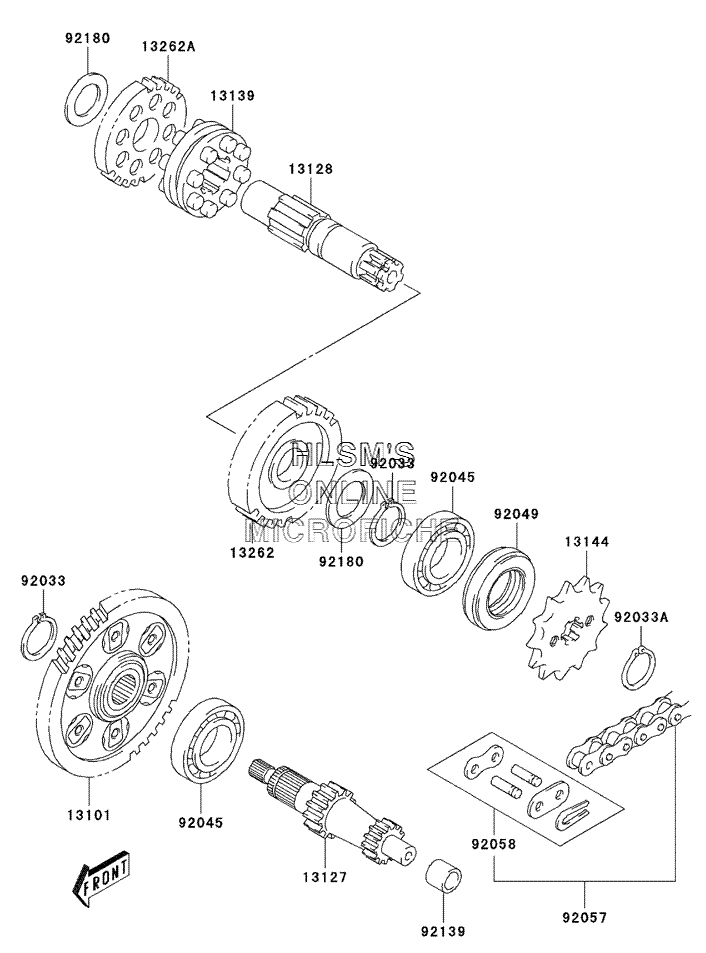

TRANSMISSION для Kawasaki KDX 50 - 2003 года выпуска

  • №
    Артикул
    Название
  • 13101
    13101-S001 GEAR, ASSY, PRIMARY DRIVEN
    GEAR, ASSY, PRIMARY DRIVEN
  • 13127
    13127-S007 SHAFT, TRANSMISSION INPUT
    SHAFT, TRANSMISSION INPUT
  • 13128
    13128-S009 SHAFT, TRANSMISSION OUTPUT
    SHAFT, TRANSMISSION OUTPUT
  • 13139
    13139-S003 SHIFTER
    SHIFTER
  • 13144
    13144-S007 SPROCKET, OUTPUT (13 TEETH)
    SPROCKET, OUTPUT (13 TEETH)
  • 13262
    13262-S022 GEAR, OUTPUT LOW (40 TEETH)
    GEAR, OUTPUT LOW (40 TEETH)
  • 13262A
    13262-S023 GEAR, OUTPUT 2ND (29 TEETH)
    GEAR, OUTPUT 2ND (29 TEETH)
  • 92033
    92033-S026 RING, SNAP, DRIVEN GEAR
    RING, SNAP, DRIVEN GEAR
  • 92033A
    92033-S027 RING, SNAP, ENGINE SPROCKET
    RING, SNAP, ENGINE SPROCKET
  • 92045
    92045-S035 BEARING, BALL, 17X40X12
    BEARING, BALL, 17X40X12
  • 92049
    92049-S028 SEAL, OIL, CRANKSHAFT OIL (LEFT)
    SEAL, OIL, CRANKSHAFT OIL (LEFT)
  • 92057
    92057-S008 CHAIN, DRIVE 78LJ
    CHAIN, DRIVE 78LJ
  • 92058
    92058-S002 JOINT, CHAIN
    JOINT, CHAIN
  • 92139
    92139-S009 BUSHING, COUNTER SHAFT
    BUSHING, COUNTER SHAFT
  • 92180
    92180-S014 SHIM, 17X30X1.0
    SHIM, 17X30X1.0
