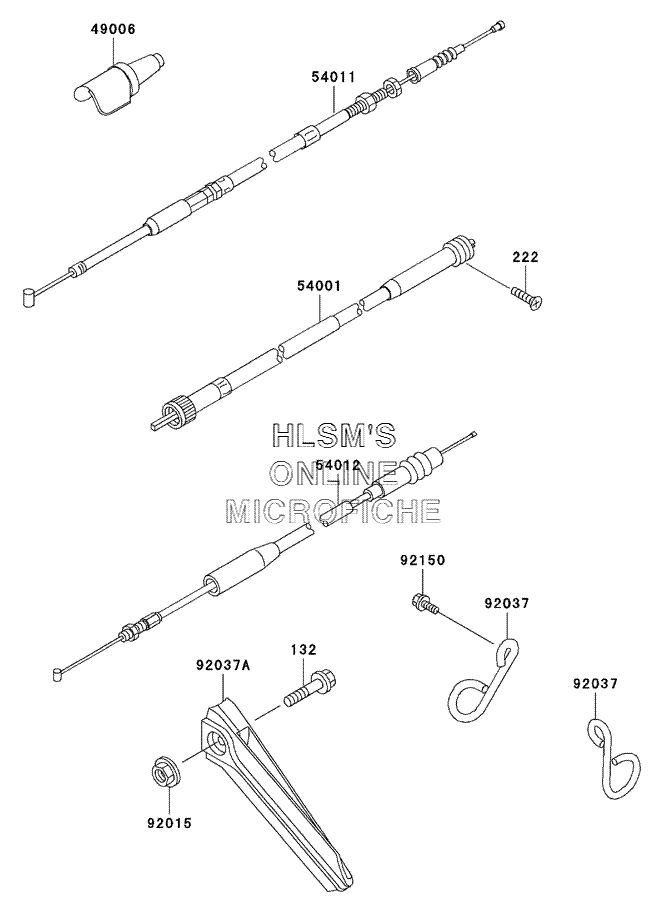

CABLES для Kawasaki KDX 220R - 2003 года выпуска
-
№АртикулНазвание
-
132132G0630 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
222222C0520 SCREW, CSK, RD, CROSSCREW, CSK, RD, CROS
-
4900649006-1189 BOOTBOOT
-
5400154001-1201 CABLE, SPEEDMETERCABLE, SPEEDMETER
-
5401154011-1342 CABLE, CLUTCHCABLE, CLUTCH
-
5401254012-1485 CABLE, THROTTLECABLE, THROTTLE
-
9201592015-1193 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9203792037-1064 CLAMP, CABLECLAMP, CABLE
-
92037A92037-1481 CLAMP, CABLECLAMP, CABLE
-
9215092150-1340 BOLT, 6X14BOLT, 6X14
Все узлы модели:
- AIR CLEANER
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER - FRONT
- BRAKE - MASTER CYLINDER - REAR
- BRAKE - REAR
- BRAKE PEDAL
- • CABLES
- CARBURETOR
- CLUTCH
- CRANKCASE
- CRANKSHAFT - PISTON(S)
- CYLINDER HEAD W/CYLINDER
- DECALS (GREEN)
- ENGINE COVER
- ENGINE MOUNT
- FENDER(S)
- FOOTRESTS
- FRAME
- FRONT FORK
- FRONT HUB
- FUEL TANK
- GEAR CHANGE DRUM W/ SHIFT FORK(S)
- GEAR CHANGE MECHANISM
- GENERATOR
- HANDLEBAR
- HEADLIGHT(S)
- IGNITION SYSTEM
- KICKSTARTER MECHANISM
- LABELS
- MANUALS
- METER(S)
- MUFFLER(S)
- OWNER TOOLS
- RADIATOR
- REAR HUB
- REFLECTORS (CANADA ONLY)
- SEAT
- SIDE COVER(S) W/ CHAIN COVER
- STAND(S)
- SUSPENSION - REAR
- SUSPENSION - SHOCK ABSORBER
- SUSPENSION - SWINGARM
- TAILLIGHT(S)
- TRANSMISSION
- WHEELS/TIRES
