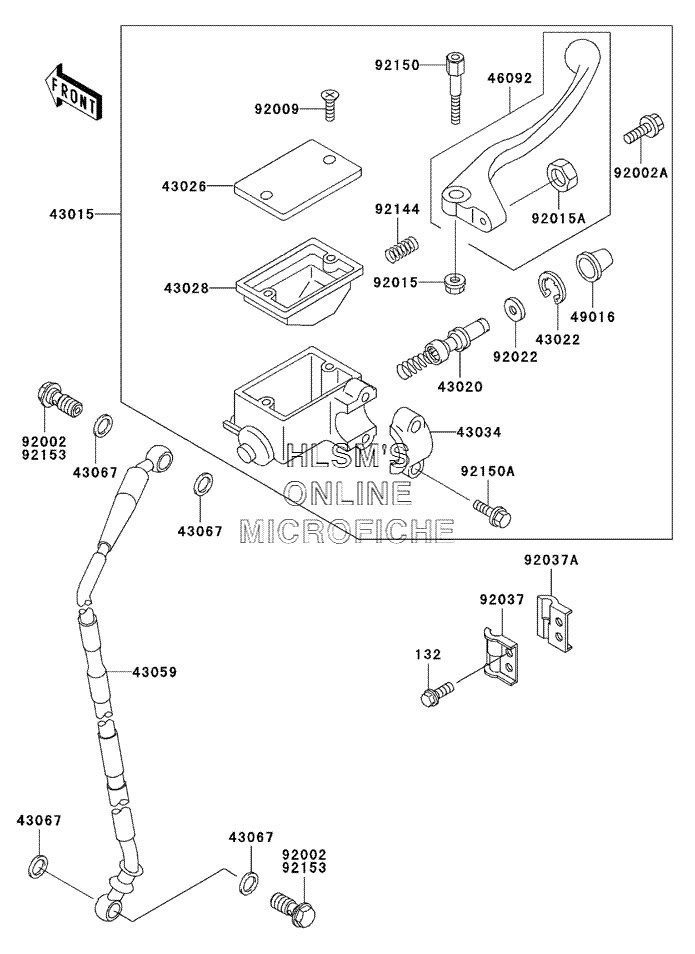

BRAKE - MASTER CYLINDER - FRONT для Kawasaki KDX 220R - 2003 года выпуска
-
№АртикулНазвание
-
132132G0616 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
4301543015-1588 CYLINDER, ASSY, MASTER, FRONTCYLINDER, ASSY, MASTER, FRONT
-
4302043020-1109 PISTON, COMP, BRAKEPISTON, COMP, BRAKE
-
4302243022-1010 STOPPER, BRAKE, PISTONSTOPPER, BRAKE, PISTON
-
4302643026-1075 CAP, BRAKECAP, BRAKE
-
4302843028-1067 DIAPHRAGMDIAPHRAGM
-
4303443034-1110 HOLDER, BRAKEHOLDER, BRAKE
-
4305943059-1812 HOSE, BRAKE, FRONTHOSE, BRAKE, FRONT
-
4306743067-001 WASHER, 10.5X15X1.5WASHER, 10.5X15X1.5
-
4609246092-1186 LEVER, GRIP, FRONT BRAKELEVER, GRIP, FRONT BRAKE
-
4901649016-1044 COVER, SEAL, MASTER CYLINDERCOVER, SEAL, MASTER CYLINDER
-
9200292002-1888 BOLT, OIL, L=23BOLT, OIL, L=23
-
92002A92002-1893 BOLT, ADJUSTBOLT, ADJUST
-
9200992009-1458 SCREW, 4MMSCREW, 4MM
-
9201592015-1528 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
92015A92015-1642 NUT, ADJUSTNUT, ADJUST
-
9202292022-1814 WASHERWASHER
-
9203792037-1362 CLAMP, BRAKE HOSE, OUTSIDECLAMP, BRAKE HOSE, OUTSIDE
-
92037A92037-1363 CLAMP, BRAKE HOSE, INSIDECLAMP, BRAKE HOSE, INSIDE
-
9214492144-1725 SPRING, RETURNSPRING, RETURN
-
9215092150-1383 BOLT, LEVER SETBOLT, LEVER SET
-
92150A92150-1452 BOLTBOLT
