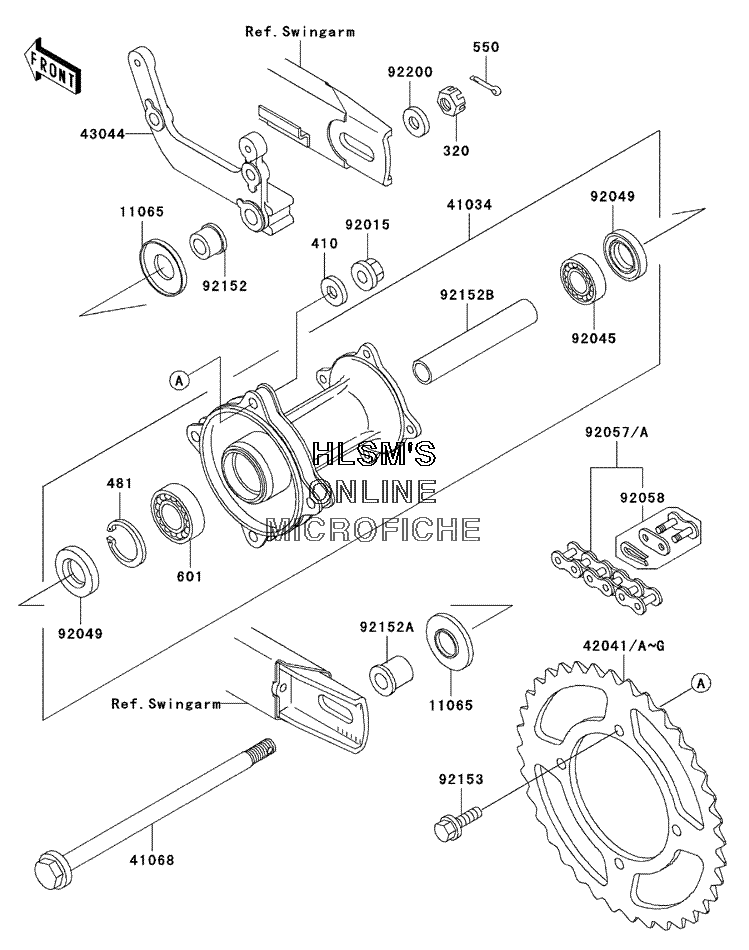

REAR HUB для Kawasaki KX 65 - 2002 года выпуска

  • №
    Артикул
    Название
  • 320
    320G1200 NUT, CASTLE
    NUT, CASTLE
  • 410
    410B0800 WASHER, PLAIN, SMALL, 8MM
    WASHER, PLAIN, SMALL, 8MM
  • 481
    481J3700 CIRCLIP, TYPE, C, 37MM
    CIRCLIP, TYPE, C, 37MM
  • 550
    550D3025 PIN, COTTER, 3.0X25
    PIN, COTTER, 3.0X25
  • 601
    601B6301UU BEARING, BALL, #6201UUC3
    BEARING, BALL, #6201UUC3
  • 11065
    11065-1137 CAP
    CAP
  • 41034
    41034-1303 DRUM, ASSY., REAR BRAKE
    DRUM, ASSY., REAR BRAKE
  • 41068
    41068-1419 AXLE, REAR
    AXLE, REAR
  • 42041A
    42041-1526 SPROCKET, HUB (45 TEETH) (OPT)
    SPROCKET, HUB (45 TEETH) (OPT)
  • 42041C
    42041-1527 SPROCKET, HUB (46 TEETH) (OPT)
    SPROCKET, HUB (46 TEETH) (OPT)
  • 42041D
    42041-1528 SPROCKET, HUB (47 TEETH)
    SPROCKET, HUB (47 TEETH)
  • 42041F
    42041-1529 SPROCKET, HUB (48 TEETH) (OPT)
    SPROCKET, HUB (48 TEETH) (OPT)
  • 42041G
    42041-1549 SPROCKET, HUB (49 TEETH) (OPT)
    SPROCKET, HUB (49 TEETH) (OPT)
  • 43044
    43044-1127 HOLDER, COMP, CALIPER, REAR
    HOLDER, COMP, CALIPER, REAR
  • 92015
    92015-1432 NUT, 8MM
    NUT, 8MM
  • 92045
    92045-1062 BEARING, BALL, TMB201LLUC3/2A
    BEARING, BALL, TMB201LLUC3/2A
  • 92049
    92049-1257 SEAL, OIL, TC20376.5
    SEAL, OIL, TC20376.5
  • 92057A
    92057-1504 CHAIN, DRIVE, DID420MBK1X110L
    CHAIN, DRIVE, DID420MBK1X110L
  • 92058
    92058-1073 JOINT, CHAIN, DRIVE
    JOINT, CHAIN, DRIVE
  • 92152
    92152-1196 COLLAR, AXLE, L=15.5
    COLLAR, AXLE, L=15.5
  • 92152A
    92152-1198 COLLAR, REAR AXLE, L=22
    COLLAR, REAR AXLE, L=22
  • 92152B
    92152-1199 COLLAR, REAR BRAKE DRUM, L=89
    COLLAR, REAR BRAKE DRUM, L=89
  • 92153
    92153-1101 BOLT, FLANGED, 8X28
    BOLT, FLANGED, 8X28
  • 92200
    92200-1004 WASHER, 12.3X23X2.3
    WASHER, 12.3X23X2.3
