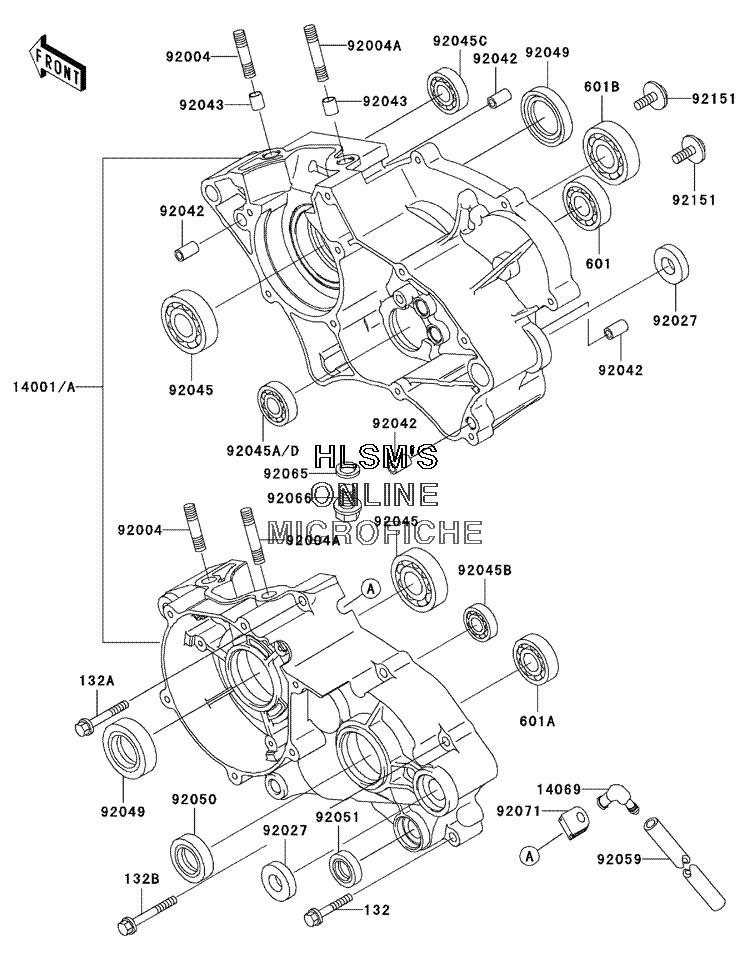

CRANKCASE для Kawasaki KX 65 - 2002 года выпуска

  • №
    Артикул
    Название
  • 132
    132G0635 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 132A
    132G0640 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 132B
    132G0655 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 601
    601A6002 BEARING, BALL, #6002
    BEARING, BALL, #6002
  • 601A
    601A6004 BEARING, BALL, #6004
    BEARING, BALL, #6004
  • 601B
    601A6203 BEARING, BALL, #6203
    BEARING, BALL, #6203
  • 14001A
    14001-1318 SET, CRANKCASE
    SET, CRANKCASE
  • 14069
    14069-002 BREATHER, CRANKCASE
    BREATHER, CRANKCASE
  • 92004
    92004-1245 STUD, 8X28.5
    STUD, 8X28.5
  • 92004A
    92004-1246 STUD, 8X37
    STUD, 8X37
  • 92027
    92027-1744 COLLAR, 12.1X26X6
    COLLAR, 12.1X26X6
  • 92042
    92042-007 PIN, DOWEL, 6.3X8X14
    PIN, DOWEL, 6.3X8X14
  • 92043
    92043-1264 PIN, 8.2X10X14
    PIN, 8.2X10X14
  • 92045
    92045-1059 BEARING, BAL(LEFT, RIGHT) 6304C3
    BEARING, BAL(LEFT, RIGHT) 6304C3
  • 92045B
    92045-1235 BEARING, BALL, 6001C3ML01
    BEARING, BALL, 6001C3ML01
  • 92045C
    92045-1304 BEARING, BALL, 626MC3
    BEARING, BALL, 626MC3
  • 92045D
    92045-1432 BEARING, BALL, 6805JRZ
    BEARING, BALL, 6805JRZ
  • 92049
    92049-1188 SEAL, OIL, SD20407GS
    SEAL, OIL, SD20407GS
  • 92050
    92050-013 SEAL, OIL, SC25376
    SEAL, OIL, SC25376
  • 92051
    92051-005 SEAL, OIL, TB13225.5
    SEAL, OIL, TB13225.5
  • 92059
    92059-1074 TUBE, 6X9X280
    TUBE, 6X9X280
  • 92065
    92065-058 GASKET, 10.5X16X1
    GASKET, 10.5X16X1
  • 92066
    92066-1437 PLUG, DRAIN
    PLUG, DRAIN
  • 92071
    92071-042 GROMMET, BREATHER
    GROMMET, BREATHER
  • 92151
    92151-1762 BOLT, 6X16
    BOLT, 6X16
