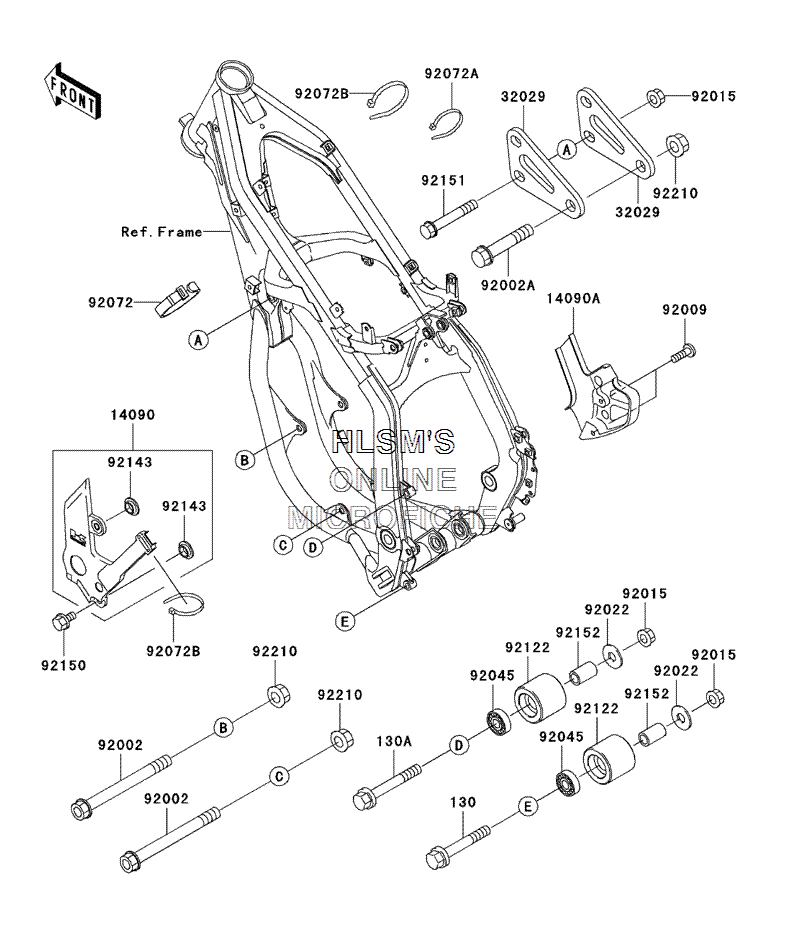

FRAME FITTING(S) для Kawasaki KX 125 - 2002 года выпуска`
-
№АртикулНазвание
-
130130G0855 BOLT, FLANGED, 8X55BOLT, FLANGED, 8X55
-
130A130G0860 BOLT, FLANGED, 8X60BOLT, FLANGED, 8X60
-
1409014090-1970-6Z COVER, FRAME PIVOT (LEFT) (F.BLACK)COVER, FRAME PIVOT (LEFT) (F.BLACK)
-
14090A14090-1971-6Z COVER, FRAME PIVOT (RIGHT) (F.BLACK)COVER, FRAME PIVOT (RIGHT) (F.BLACK)
-
3202932029-1896 BRACKET, ENGINEBRACKET, ENGINE
-
9200292002-1491 BOLT, FLANGED, 10X105BOLT, FLANGED, 10X105
-
92002A92002-1936 BOLT, FLANGED, 10X53BOLT, FLANGED, 10X53
-
9200992009-1111 SCREW, 6X18 (WHITE)SCREW, 6X18 (WHITE)
-
9201592015-1432 NUT, 8MMNUT, 8MM
-
9202292022-1629 WASHER, 8.5X22X1.5WASHER, 8.5X22X1.5
-
9204592045-1009 BEARING, BALL, 608LLU/2ABEARING, BALL, 608LLU/2A
-
9207292072-031 BAND, MIDDLEBAND, MIDDLE
-
92072A92072-056 BAND, WIRING HARNESSBAND, WIRING HARNESS
-
92072B92072-1195 BAND, L=202BAND, L=202
-
9212292122-1216 ROLLER, CHAIN GUIDEROLLER, CHAIN GUIDE
-
9214392143-1196 COLLARCOLLAR
-
9215092150-1435 BOLT, 6X12BOLT, 6X12
-
9215192151-1377 BOLT, FLANGED, 8X52BOLT, FLANGED, 8X52
-
9215292152-1340 COLLAR, 8.5X12.5X20.5COLLAR, 8.5X12.5X20.5
-
9221092210-1080 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
