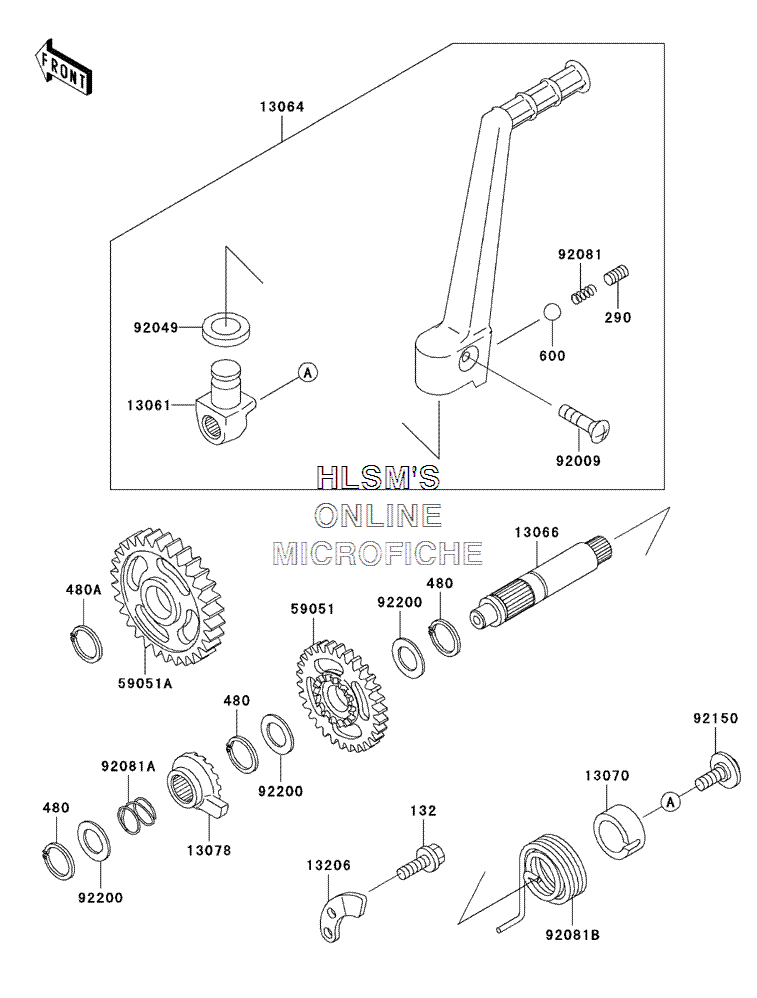

KICKSTARTER MECHANISM для Kawasaki KX 125 - 2002 года выпуска

  • №
    Артикул
    Название
  • 132
    132G0616 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 290
    290P0808 SCREW, SET, SOCKET
    SCREW, SET, SOCKET
  • 480
    480J1600 CIRCLIP, TYPE, C, 16MM
    CIRCLIP, TYPE, C, 16MM
  • 480A
    480J1700 CIRCLIP, TYPE, C, 17MM
    CIRCLIP, TYPE, C, 17MM
  • 600
    600A0800 BALL, STEEL, 1/4"
    BALL, STEEL, 1/4"
  • 13061
    13061-1713 BOSS, KICK
    BOSS, KICK
  • 13064
    13064-1189 LEVER, ASSY, KICK, PEDAL
    LEVER, ASSY, KICK, PEDAL
  • 13066
    13066-1101 SHAFT, KICK
    SHAFT, KICK
  • 13070
    13070-1007 GUIDE, KICK SPRING
    GUIDE, KICK SPRING
  • 13078
    13078-1052 RATCHET
    RATCHET
  • 13206
    13206-1061 GUIDE, KICK
    GUIDE, KICK
  • 59051
    59051-1364 GEAR, SPUR, KICK (30 TEETH)
    GEAR, SPUR, KICK (30 TEETH)
  • 59051A
    59051-1365 GEAR, SPUR, IDLER (31 TEETH)
    GEAR, SPUR, IDLER (31 TEETH)
  • 92009
    92009-1607 SCREW, 6X27
    SCREW, 6X27
  • 92049
    92049-1387 SEAL, OIL, KICK PEDAL
    SEAL, OIL, KICK PEDAL
  • 92081
    92081-020 SPRING, KICK PEDAL
    SPRING, KICK PEDAL
  • 92081A
    92081-122 SPRING, RATCHET
    SPRING, RATCHET
  • 92081B
    92081-1768 SPRING, KICKSTARTER
    SPRING, KICKSTARTER
  • 92150
    92150-1673 BOLT, SOCKET, 6X16
    BOLT, SOCKET, 6X16
  • 92200
    92200-1209 WASHER, KICKSHAFT
    WASHER, KICKSHAFT
