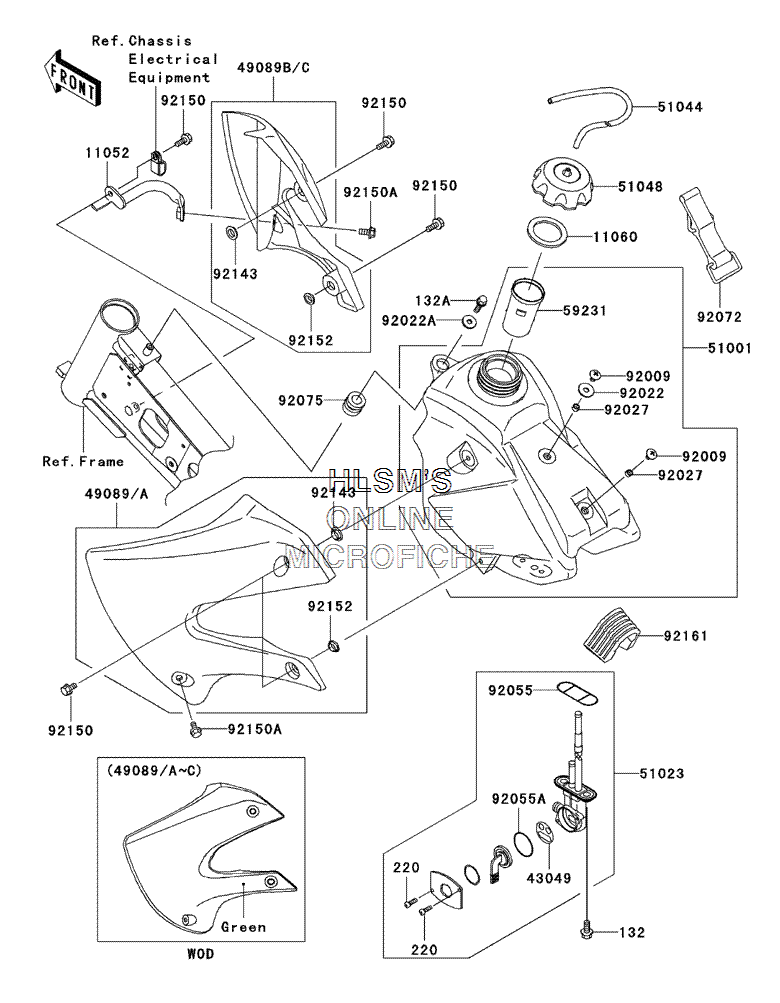

FUEL TANK для Kawasaki KLX 110 - 2002 года выпуска

  • №
    Артикул
    Название
  • 132
    132G0612 BOLT, FLANGED, SMALL 6X12
    BOLT, FLANGED, SMALL 6X12
  • 132A
    132G0614 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 220
    220B0308 SCREW, PAN, CROS 3X8
    SCREW, PAN, CROS 3X8
  • 11052
    11052-1639 BRACKET, SHROUD (RIGHT)
    BRACKET, SHROUD (RIGHT)
  • 11060
    11060-1340 GASKET, FUEL TANK CAP
    GASKET, FUEL TANK CAP
  • 43049
    43049-1091 PACKING, TAP VALVE
    PACKING, TAP VALVE
  • 49089A
    49089-1144-6W SHROUD, ENGINE (LEFT) (L.GREEN)
    SHROUD, ENGINE (LEFT) (L.GREEN)
  • 49089C
    49089-1145-6W SHROUD, ENGINE (RIGHT) (L.GREEN)
    SHROUD, ENGINE (RIGHT) (L.GREEN)
  • 51001
    51001-1676-6Z TANK, COMP, FUEL (F.BLACK)
    TANK, COMP, FUEL (F.BLACK)
  • 51023
    51023-1342 TAP, ASSY, FUEL
    TAP, ASSY, FUEL
  • 51044
    51044-1185 TUBE, ASSY
    TUBE, ASSY
  • 51048
    51048-1124 CAP, ASSY, TANK, FUEL
    CAP, ASSY, TANK, FUEL
  • 59231
    59231-1096 FILLER
    FILLER
  • 92009
    92009-1530 SCREW, 6X10
    SCREW, 6X10
  • 92022
    92022-165 WASHER, PLAIN, 6MM
    WASHER, PLAIN, 6MM
  • 92022A
    92022-1690 WASHER, 6.5X24X2
    WASHER, 6.5X24X2
  • 92027
    92027-2096 COLLAR, 6.2X7.8X5
    COLLAR, 6.2X7.8X5
  • 92055
    92055-1348 O-RING, FUEL TAP PACKING
    O-RING, FUEL TAP PACKING
  • 92055A
    92055-1419 O-RING, TAP LEVER
    O-RING, TAP LEVER
  • 92072
    92072-1229 BAND, FUEL TANK
    BAND, FUEL TANK
  • 92075
    92075-1787 DAMPER
    DAMPER
  • 92143
    92143-1196 COLLAR
    COLLAR
  • 92150
    92150-1435 BOLT, 6X12
    BOLT, 6X12
  • 92150A
    92150-1506 BOLT, FLANGED, 6X16
    BOLT, FLANGED, 6X16
  • 92152
    92152-1235 COLLAR
    COLLAR
  • 92161
    92161-1077 DAMPER, FUEL TANK, REAR
    DAMPER, FUEL TANK, REAR
