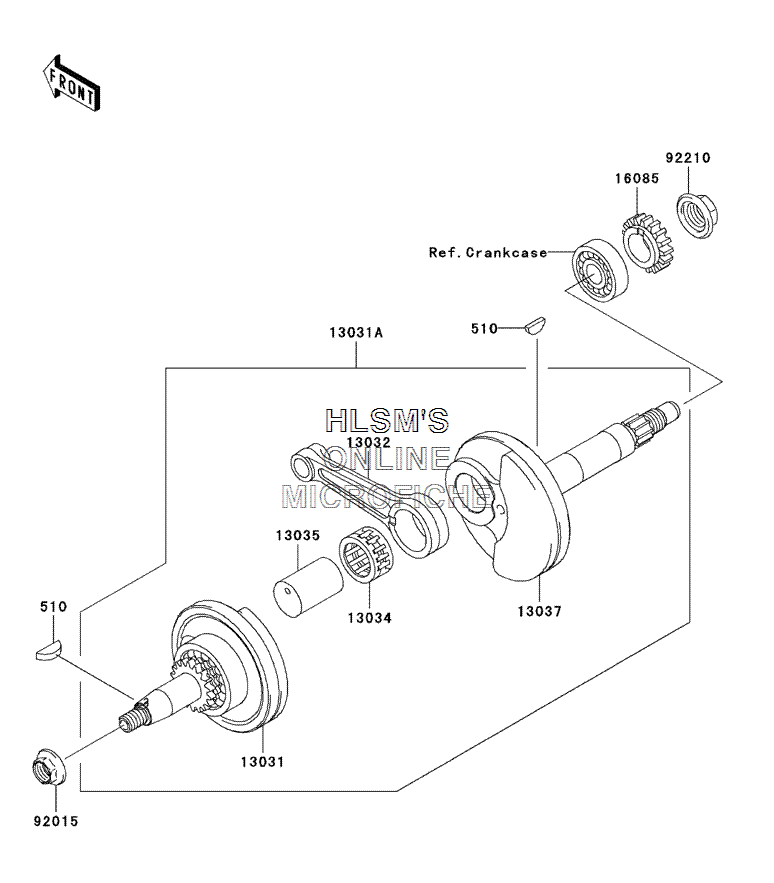

CRANKSHAFT для Kawasaki KLX 110 - 2002 года выпуска
-
№АртикулНазвание
-
510510A3200 KEY, WOODRUFFKEY, WOODRUFF
-
1303113031-1462 CRANKSHAFT, COMP (LEFT)CRANKSHAFT, COMP (LEFT)
-
13031A13031-1486 CRANKSHAFT, COMPCRANKSHAFT, COMP
-
1303213032-1250 ROD, CONNECTINGROD, CONNECTING
-
1303413034-1100 BEARING, BIG END, B4BEARING, BIG END, B4
-
1303513035-1083 PIN, CRANKPIN, CRANK
-
1303713037-1481 CRANKSHAFT (RIGHT)CRANKSHAFT (RIGHT)
-
1608516085-1267 GEAR, OIL PUMP (28 TEETH)GEAR, OIL PUMP (28 TEETH)
-
9201592015-077 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
9221092210-1374 NUT, 14MMNUT, 14MM
