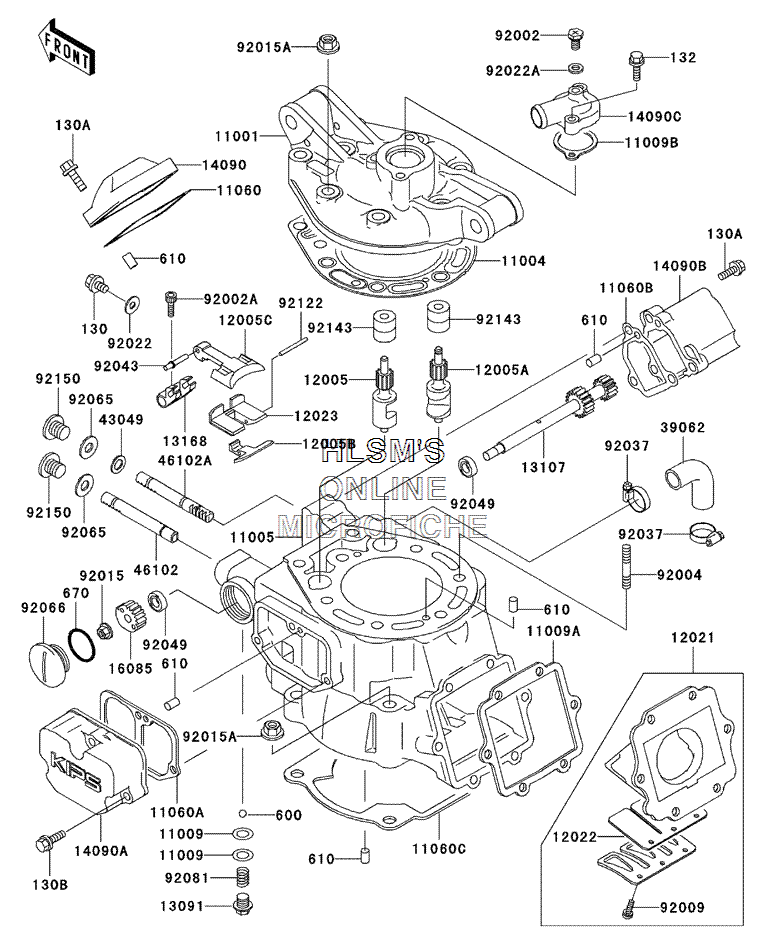

CYLINDER HEAD W/CYLINDER для Kawasaki KDX 220R - 2002 года выпуска`
-
№АртикулНазвание
-
1100111001-1410 HEAD, CYLINDERHEAD, CYLINDER
-
1100411004-1299 GASKET, HEADGASKET, HEAD
-
1100511005-1744 CYLINDER, ENGINECYLINDER, ENGINE
-
1100911009-1344 GASKET, OIL PIPE, 8.2X14X1.0GASKET, OIL PIPE, 8.2X14X1.0
-
11009A11009-1941 GASKET, REED VALVEGASKET, REED VALVE
-
11009B11009-1993 GASKET, ELBOWGASKET, ELBOW
-
1106011060-1627 GASKET, CENTER VALVE COVERGASKET, CENTER VALVE COVER
-
11060A11060-1628 GASKET, RESONATOR COVERGASKET, RESONATOR COVER
-
11060B11060-1629 GASKET COVER (RIGHT)GASKET COVER (RIGHT)
-
11060C11060-1659 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
1200512005-1199 VALVE, EXHAUST (LEFT)VALVE, EXHAUST (LEFT)
-
12005A12005-1200 VALVE, EXHAUST (RIGHT)VALVE, EXHAUST (RIGHT)
-
12005B12005-1272 VALVE, EXHAUST, MAINVALVE, EXHAUST, MAIN
-
12005C12005-1273 VALVE, EXHAUST, MAINVALVE, EXHAUST, MAIN
-
1202112021-1067 VALVE, ASSY, REEDVALVE, ASSY, REED
-
1202212022-1063 VALVE, REEDVALVE, REED
-
1202312023-1085 HOLDER, VALVE, MAINHOLDER, VALVE, MAIN
-
1309113091-1889 HOLDERHOLDER
-
1310713107-1324 SHAFT, CENTERSHAFT, CENTER
-
1316813168-1499 LEVER, MAIN VALVELEVER, MAIN VALVE
-
1409014090-1441 COVER, CENTER VALVECOVER, CENTER VALVE
-
14090A14090-1442 COVER (LEFT) RESONATORCOVER (LEFT) RESONATOR
-
14090B14090-1443 COVER (RIGHT)COVER (RIGHT)
-
14090C14090-1534 COVER, THERMOSTATCOVER, THERMOSTAT
-
1608516085-1274 GEAR (LEFT) VALVE RODGEAR (LEFT) VALVE ROD
-
3906239062-1419 HOSE, COOLING, PUMP, CYLINDERHOSE, COOLING, PUMP, CYLINDER
-
4304943049-1076 PACKINGPACKING
-
4610246102-1383 ROD (LEFT)ROD (LEFT)
-
46102A46102-1384 ROD (RIGHT)ROD (RIGHT)
-
9200292002-1222 BOLT, 6X10BOLT, 6X10
-
92002A92002-1403 BOLT, SOCKET, 4X8BOLT, SOCKET, 4X8
-
9200492004-1197 STUD, 8X32STUD, 8X32
-
9200992009-1014 SCREW, REED VALVESCREW, REED VALVE
-
9201592015-1386 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
92015A92015-1406 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
9202292022-1380 WASHER, 5.2X13X1WASHER, 5.2X13X1
-
92022A92022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9203792037-1589 CLAMP, COOLING HOSECLAMP, COOLING HOSE
-
9204392043-1470 PIN, MAIN VALVEPIN, MAIN VALVE
-
9204992049-1238 SEAL, OIL, SD088144SEAL, OIL, SD088144
-
130130Y0508 BOLT, FLANGEDBOLT, FLANGED
-
130A130Y0520 BOLT, FLANGEDBOLT, FLANGED
-
130B130Y0525 BOLT, FLANGEDBOLT, FLANGED
-
132132Y0625 BOLT, FLANGED, SMALL 6X25BOLT, FLANGED, SMALL 6X25
-
600600A0600 BALL, STEEL, 3/16"BALL, STEEL, 3/16"
-
610610A0408 ROLLER, 4X8ROLLER, 4X8
-
670670B2022 O-RING, 22MMO-RING, 22MM
-
9206592065-058 GASKET, 10.5X16X1GASKET, 10.5X16X1
-
9206692066-1414 PLUGPLUG
-
9208192081-1527 SPRING, CLUTCH PLATESPRING, CLUTCH PLATE
-
9212292122-1187 ROLLER, 3X31.8ROLLER, 3X31.8
-
9214392143-1725 COLLARCOLLAR
-
9215092150-1867 BOLT, 10X10BOLT, 10X10
