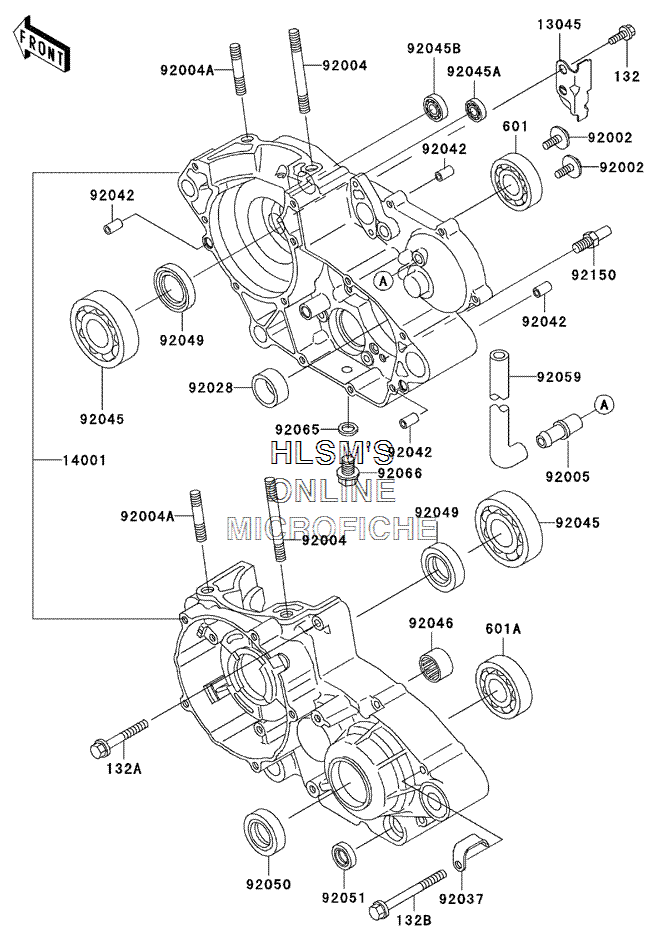

CRANKCASE для Kawasaki KDX 220R - 2002 года выпуска

  • №
    Артикул
    Название
  • 132
    132Y0614 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 132A
    132Y0640 BOLT, FLANGED, SMALL 6X40
    BOLT, FLANGED, SMALL 6X40
  • 132B
    132Y0660 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 601
    601B6204 BEARING, BALL, #6204C3
    BEARING, BALL, #6204C3
  • 601A
    601B6205 BEARING, BALL, #6205C3
    BEARING, BALL, #6205C3
  • 13045
    13045-1056 RECEIVER, OIL
    RECEIVER, OIL
  • 14001
    14001-1212 SET, CRANKCASE
    SET, CRANKCASE
  • 92002
    92002-1659 BOLT, 6X16
    BOLT, 6X16
  • 92004
    92004-1132 STUD, 8X60
    STUD, 8X60
  • 92004A
    92004-1142 STUD, 8X28.5
    STUD, 8X28.5
  • 92005
    92005-1210 FITTING, BREATHER
    FITTING, BREATHER
  • 92028
    92028-132 BUSHING, 23X30X13
    BUSHING, 23X30X13
  • 92037
    92037-1318 CLAMP, HARNESS
    CLAMP, HARNESS
  • 92042
    92042-007 PIN, DOWEL, 6.3X8X14
    PIN, DOWEL, 6.3X8X14
  • 92045
    92045-1120 BEARING, BALL, 6305JR2C3
    BEARING, BALL, 6305JR2C3
  • 92045A
    92045-1304 BEARING, BALL, 626MC3
    BEARING, BALL, 626MC3
  • 92045B
    92045-1305 BEARING, BALL, 608MC3
    BEARING, BALL, 608MC3
  • 92046
    92046-026 BEARING, NEEDLE, #7E, HKS162412, 1
    BEARING, NEEDLE, #7E, HKS162412, 1
  • 92049
    92049-1365 SEAL, OIL, TBY25X40X6
    SEAL, OIL, TBY25X40X6
  • 92050
    92050-033 SEAL, OIL, TB3040
    SEAL, OIL, TB3040
  • 92051
    92051-005 SEAL, OIL, TB13225.5
    SEAL, OIL, TB13225.5
  • 92059
    92059-1805 TUBE, 5X9X400 (BLUE)
    TUBE, 5X9X400 (BLUE)
  • 92065
    92065-058 GASKET, 10.5X16X1
    GASKET, 10.5X16X1
  • 92066
    92066-1334 PLUG, 10MM
    PLUG, 10MM
  • 92150
    92150-1467 BOLT, RETURN SPRING
    BOLT, RETURN SPRING
