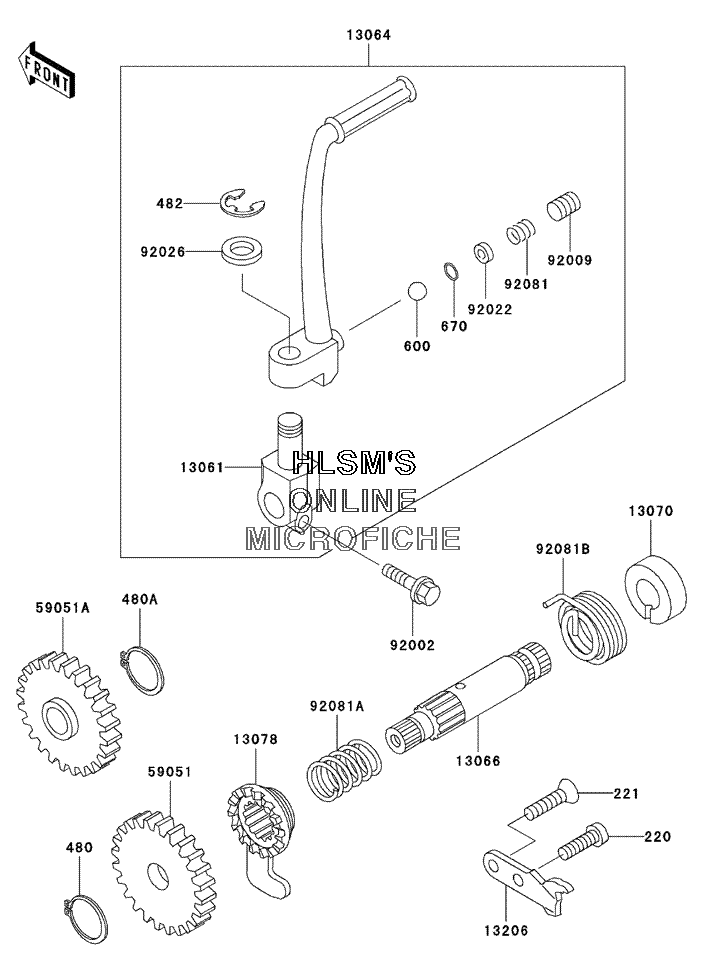

KICKSTARTER MECHANISM для Kawasaki KX 60 - 2001 года выпуска
-
№АртикулНазвание
-
220220B0616 SCREW, PAN, CROS, 6X16SCREW, PAN, CROS, 6X16
-
221221B0618 SCREW, CSK, CROS, 6X18SCREW, CSK, CROS, 6X18
-
480480J1200 CIRCLIP, TYPE, C, 12MMCIRCLIP, TYPE, C, 12MM
-
480A480J1500 CIRCLIP, TYPE, C, 15MMCIRCLIP, TYPE, C, 15MM
-
482482K8000 CIRCLIP, TYPE, E, 8MMCIRCLIP, TYPE, E, 8MM
-
600600A0800 BALL, STEEL, 1/4"BALL, STEEL, 1/4"
-
670670B1504 O-RING, 4MMO-RING, 4MM
-
1306113061-1301 BOSS, KICK LEVERBOSS, KICK LEVER
-
1306413064-1154 LEVER, ASSY., KICK, PEDALLEVER, ASSY., KICK, PEDAL
-
1306613066-1093 SHAFT, KICK, STARTERSHAFT, KICK, STARTER
-
1307013070-1034 GUIDE, KICK SPRINGGUIDE, KICK SPRING
-
1307813078-1004 RATCHETRATCHET
-
1320613206-1065 GUIDE, KICKGUIDE, KICK
-
5905159051-1026 GEAR, SPUR (32 TEETH)GEAR, SPUR (32 TEETH)
-
59051A59051-1027 GEAR, SPUR (30 TEETH)GEAR, SPUR (30 TEETH)
-
9200292002-1237 BOLT, 6X20BOLT, 6X20
-
9200992009-1312 SCREW, SOCKET, 8X8SCREW, SOCKET, 8X8
-
9202292022-1481 WASHERWASHER
-
9202692026-1527 SPACER, 12.2X20X1.6SPACER, 12.2X20X1.6
-
9208192081-020 SPRING, KICK PEDALSPRING, KICK PEDAL
-
92081A92081-122 SPRING, RATCHETSPRING, RATCHET
-
92081B92081-1434 SPRING, RETURNSPRING, RETURN
