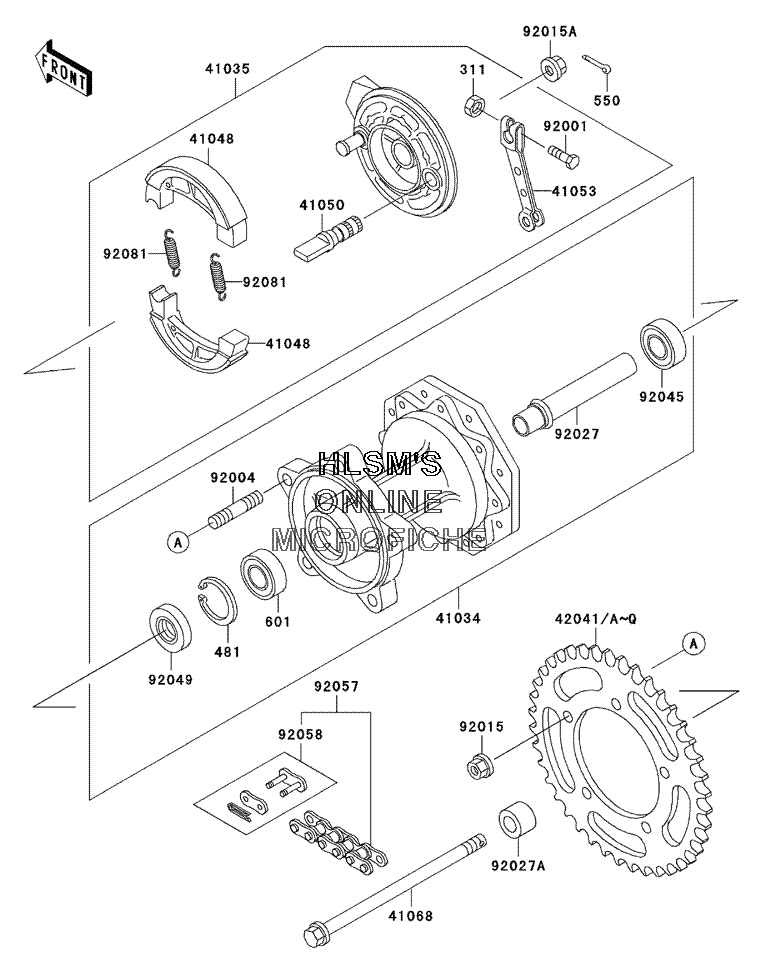

REAR HUB для Kawasaki KX 60 - 2001 года выпуска

  • №
    Артикул
    Название
  • 41034
    41034-1169 DRUM, ASSY., REAR BRAKE
    DRUM, ASSY., REAR BRAKE
  • 41035
    41035-1286 PANEL, ASSY., BRAKE, REAR
    PANEL, ASSY., BRAKE, REAR
  • 41048
    41048-1083 SHOE, BRAKE
    SHOE, BRAKE
  • 41050
    41050-1031 CAM, BRAKE
    CAM, BRAKE
  • 41053
    41053-1058 LEVER, BRAKE CAM, REAR
    LEVER, BRAKE CAM, REAR
  • 41068
    41068-1306 AXLE, REAR
    AXLE, REAR
  • 42041
    42041-1114 SPROCKET, HUB (44 TEETH)
    SPROCKET, HUB (44 TEETH)
  • 42041A
    42041-1116 SPROCKET, HUB (43 TEETH) (OPT)
    SPROCKET, HUB (43 TEETH) (OPT)
  • 42041B
    42041-1117 SPROCKET, HUB (45 TEETH) (OPT)
    SPROCKET, HUB (45 TEETH) (OPT)
  • 42041C
    42041-1121 SPROCKET, HUB (49 TEETH) (OPT)
    SPROCKET, HUB (49 TEETH) (OPT)
  • 42041D
    42041-1122 SPROCKET, HUB (48 TEETH) (OPT)
    SPROCKET, HUB (48 TEETH) (OPT)
  • 42041E
    42041-1123 SPROCKET, HUB (50 TEETH) (OPT)
    SPROCKET, HUB (50 TEETH) (OPT)
  • 42041F
    42041-1129 SPROCKET, HUB (47 TEETH) (OPT)
    SPROCKET, HUB (47 TEETH) (OPT)
  • 42041G
    42041-1167 SPROCKET, HUB (43 TEETH) AL (OPT)
    SPROCKET, HUB (43 TEETH) AL (OPT)
  • 42041H
    42041-1168 SPROCKET, HUB (44 TEETH) AL (OPT)
    SPROCKET, HUB (44 TEETH) AL (OPT)
  • 42041I
    42041-1169 SPROCKET, HUB (48 TEETH) AL (OPT)
    SPROCKET, HUB (48 TEETH) AL (OPT)
  • 42041J
    42041-1170 SPROCKET, HUB (49 TEETH) AL (OPT)
    SPROCKET, HUB (49 TEETH) AL (OPT)
  • 42041K
    42041-1171 SPROCKET, HUB (50 TEETH) AL (OPT)
    SPROCKET, HUB (50 TEETH) AL (OPT)
  • 42041L
    42041-1175 SPROCKET, HUB (45 TEETH) AL (OPT)
    SPROCKET, HUB (45 TEETH) AL (OPT)
  • 42041M
    42041-1176 SPROCKET, HUB (46 TEETH) AL (OPT)
    SPROCKET, HUB (46 TEETH) AL (OPT)
  • 42041N
    42041-1177 SPROCKET, HUB (47 TEETH) AL (OPT)
    SPROCKET, HUB (47 TEETH) AL (OPT)
  • 42041O
    42041-1178 SPROCKET, HUB (46 TEETH) (OPT)
    SPROCKET, HUB (46 TEETH) (OPT)
  • 42041P
    42041-1181 SPROCKET, HUB (51 TEETH) (OPT)
    SPROCKET, HUB (51 TEETH) (OPT)
  • 42041Q
    42041-1182 SPROCKET, HUB (51 TEETH) AL (OPT)
    SPROCKET, HUB (51 TEETH) AL (OPT)
  • 92001
    92001-1695 BOLT, 5X25
    BOLT, 5X25
  • 311
    311G0500 NUT, HEX
    NUT, HEX
  • 481
    481J3700 CIRCLIP, TYPE, C, 37MM
    CIRCLIP, TYPE, C, 37MM
  • 550
    550D2520 PIN, COTTER, 2.5X20
    PIN, COTTER, 2.5X20
  • 601
    601B6301UU BEARING, BALL, #6201UUC3
    BEARING, BALL, #6201UUC3
  • 92004
    92004-1182 STUD, 8X16
    STUD, 8X16
  • 92015
    92015-1143 NUT, 8MM
    NUT, 8MM
  • 92015A
    92015-1433 NUT, FLANGED, 12MM
    NUT, FLANGED, 12MM
  • 92027
    92027-1471 COLLAR, REAR DRUM, L=115
    COLLAR, REAR DRUM, L=115
  • 92027A
    92027-1473 COLLAR, REAR AXLE, L=14.5
    COLLAR, REAR AXLE, L=14.5
  • 92045
    92045-1062 BEARING, BALL, TMB201LLUC3/2A
    BEARING, BALL, TMB201LLUC3/2A
  • 92049
    92049-1096 SEAL, OIL, DD20377
    SEAL, OIL, DD20377
  • 92057
    92057-1436 CHAIN, DRIVE, DID420MBK1X104L
    CHAIN, DRIVE, DID420MBK1X104L
  • 92058
    92058-1073 JOINT, CHAIN, DRIVE
    JOINT, CHAIN, DRIVE
  • 92081
    92081-1766 SPRING, BRAKE SHOE
    SPRING, BRAKE SHOE
