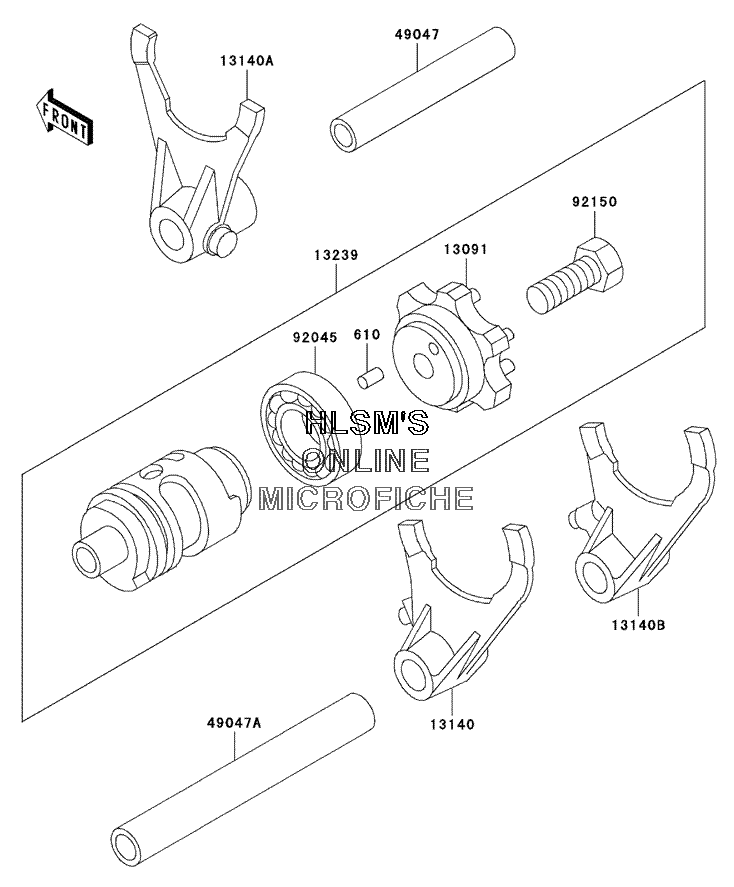

GEAR CHANGE DRUM W/ SHIFT FORK(S) для Kawasaki KX 500 - 2001 года выпуска`
-
№АртикулНазвание
-
610610A0408 ROLLER, 4X8ROLLER, 4X8
-
1309113091-1555 HOLDER, CHANGE DRUMHOLDER, CHANGE DRUM
-
1314013140-1058 FORK, SHIFT, 2ND AND 3RDFORK, SHIFT, 2ND AND 3RD
-
13140A13140-1059 FORK, SHIFT, 4TH AND TOPFORK, SHIFT, 4TH AND TOP
-
13140B13140-1142 FORK, SHIFT, LOWFORK, SHIFT, LOW
-
1323913239-1143 DRUM, ASSY., CHANGEDRUM, ASSY., CHANGE
-
4904749047-1063 ROD, SHIFT, 5.9X10X64.5ROD, SHIFT, 5.9X10X64.5
-
49047A49047-1064 ROD, SHIFT, 5.9X10X81ROD, SHIFT, 5.9X10X81
-
9204592045-036 BEARING, BALL, #6905BEARING, BALL, #6905
-
9215092150-1490 BOLT, 8X18BOLT, 8X18
