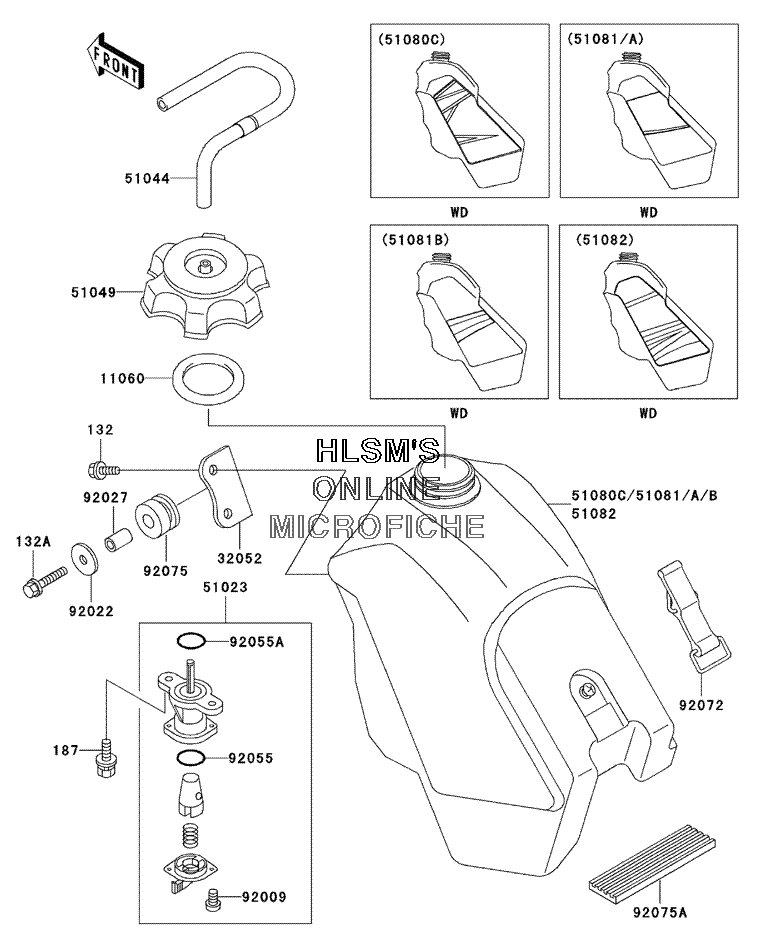

FUEL TANK для Kawasaki KX 500 - 2001 года выпуска

  • №
    Артикул
    Название
  • 132
    132G0612 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 132A
    132G0630 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 187
    187B0616 BOLT, UPSET, WSP
    BOLT, UPSET, WSP
  • 11060
    11060-1340 GASKET, FUEL TANK CAP
    GASKET, FUEL TANK CAP
  • 32052
    32052-1169 BRACKET, TANK
    BRACKET, TANK
  • 51023
    51023-1115 TAP, ASSY., FUEL
    TAP, ASSY., FUEL
  • 51044
    51044-1185 TUBE, ASSY.
    TUBE, ASSY.
  • 51049
    51049-1108 CAP, TANK, FUEL
    CAP, TANK, FUEL
  • 51081B
    51081-5379-6W TANK, COMP, FUEL (L.GREEN)
    TANK, COMP, FUEL (L.GREEN)
  • 92009
    92009-1386 SCREW, 3X8
    SCREW, 3X8
  • 92022
    92022-1690 WASHER, 6.5X24X2
    WASHER, 6.5X24X2
  • 92027
    92027-1833 COLLAR, 6.8X10X17
    COLLAR, 6.8X10X17
  • 92055
    92055-1299 O-RING, FUEL TAP LEVER
    O-RING, FUEL TAP LEVER
  • 92055A
    92055-1300 O-RING, FUEL TAP PACKING
    O-RING, FUEL TAP PACKING
  • 92072
    92072-1229 BAND, FUEL TANK
    BAND, FUEL TANK
  • 92075
    92075-1660 DAMPER
    DAMPER
  • 92075A
    92075-1987 DAMPER, FUEL TANK
    DAMPER, FUEL TANK
