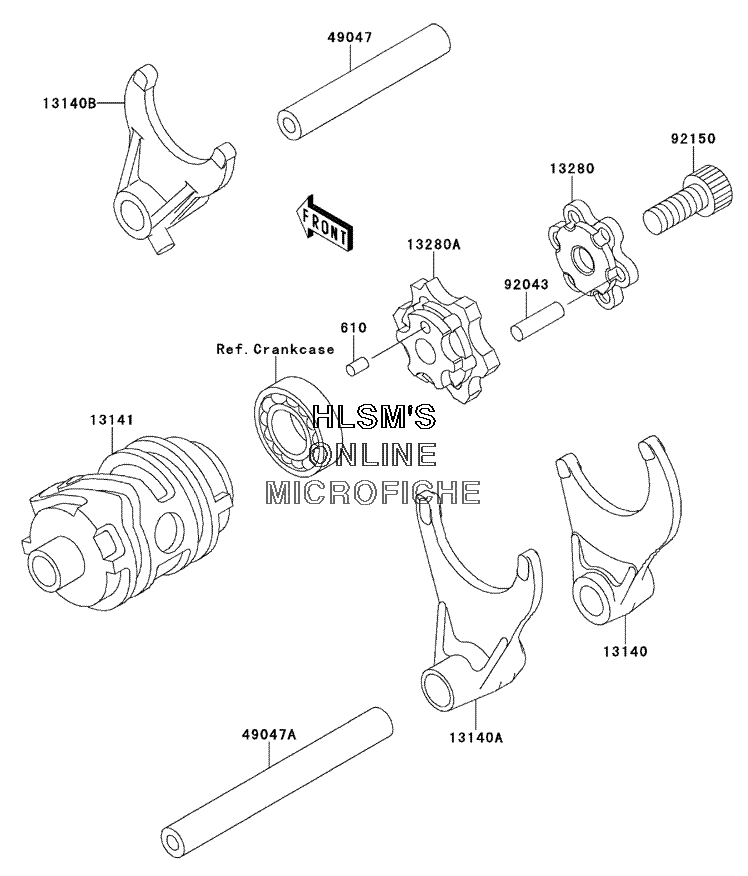

GEAR CHANGE DRUM W/ SHIFT FORK(S) для Kawasaki KX 250 - 2001 года выпуска`
-
№АртикулНазвание
-
610610A0408 ROLLER, 4X8ROLLER, 4X8
-
1314013140-1248 FORK, SHIFT, LOWFORK, SHIFT, LOW
-
13140A13140-1249 FORK, SHIFT, 2ND AND 3RDFORK, SHIFT, 2ND AND 3RD
-
13140B13140-1250 FORK, SHIFT, 4TH AND TOPFORK, SHIFT, 4TH AND TOP
-
1314113141-1200 DRUM, CHANGEDRUM, CHANGE
-
1328013280-1182 HOLDERHOLDER
-
13280A13280-1223 HOLDERHOLDER
-
4904749047-1107 ROD, SHIFT, L=64.5ROD, SHIFT, L=64.5
-
49047A49047-1108 ROD, SHIFT, L=90ROD, SHIFT, L=90
-
9204392043-1444 PIN, 17.9X5.0PIN, 17.9X5.0
-
9215092150-1604 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
