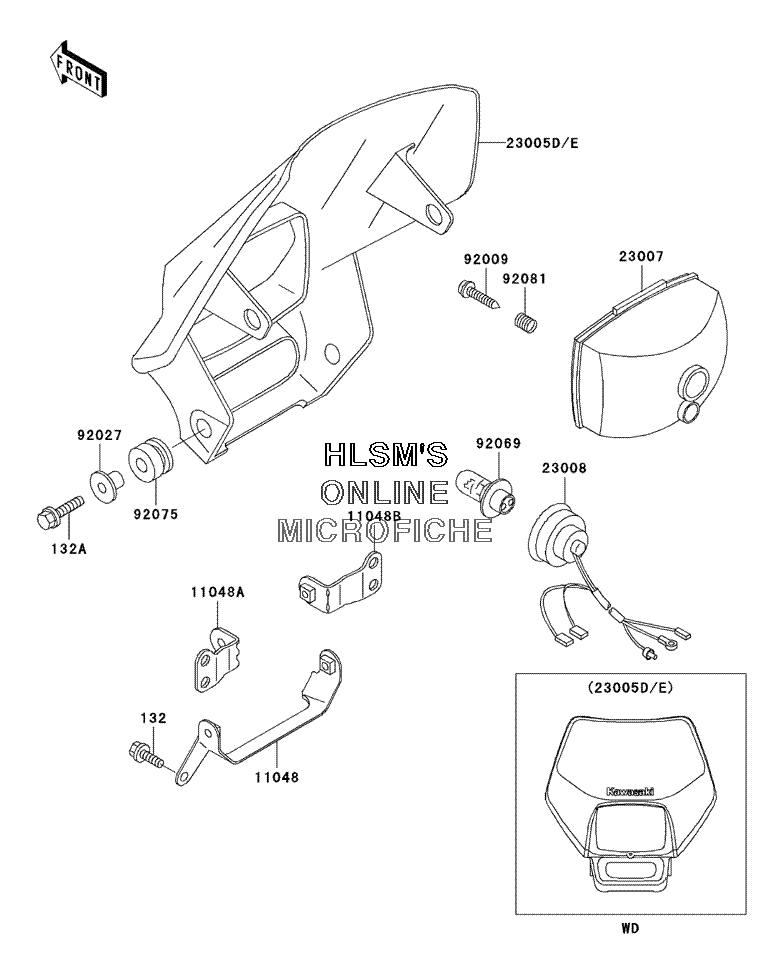

HEADLIGHT(S) для Kawasaki KDX 200 - 2001 года выпуска

  • №
    Артикул
    Название
  • 132
    132G0612 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 132A
    132G0620 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 11048
    11048-1089 BRACKET, HEAD LAMP, LOWER
    BRACKET, HEAD LAMP, LOWER
  • 11048A
    11048-1534 BRACKET, HEAD LAMP, UPPER (LEFT)
    BRACKET, HEAD LAMP, UPPER (LEFT)
  • 11048B
    11048-1535 BRACKET, HEAD LAMP, UPPER (RIGHT)
    BRACKET, HEAD LAMP, UPPER (RIGHT)
  • 23005D
    23005-5040-6W BODY, COMP, HEAD LAMP (L.GREEN)
    BODY, COMP, HEAD LAMP (L.GREEN)
  • 23007
    23007-1246 LENS, COMP, HEAD LAMP
    LENS, COMP, HEAD LAMP
  • 23008
    23008-1513 SOCKET, ASSY., HEAD LAMP
    SOCKET, ASSY., HEAD LAMP
  • 92009
    92009-1695 SCREW, TAPPING
    SCREW, TAPPING
  • 92027
    92027-1183 COLLAR
    COLLAR
  • 92069
    92069-1080 BULB, 12V 30/30W
    BULB, 12V 30/30W
  • 92075
    92075-1123 DAMPER, RUBBER
    DAMPER, RUBBER
  • 92081
    92081-1519 SPRING, FOUCUS ADJUSTING
    SPRING, FOUCUS ADJUSTING
