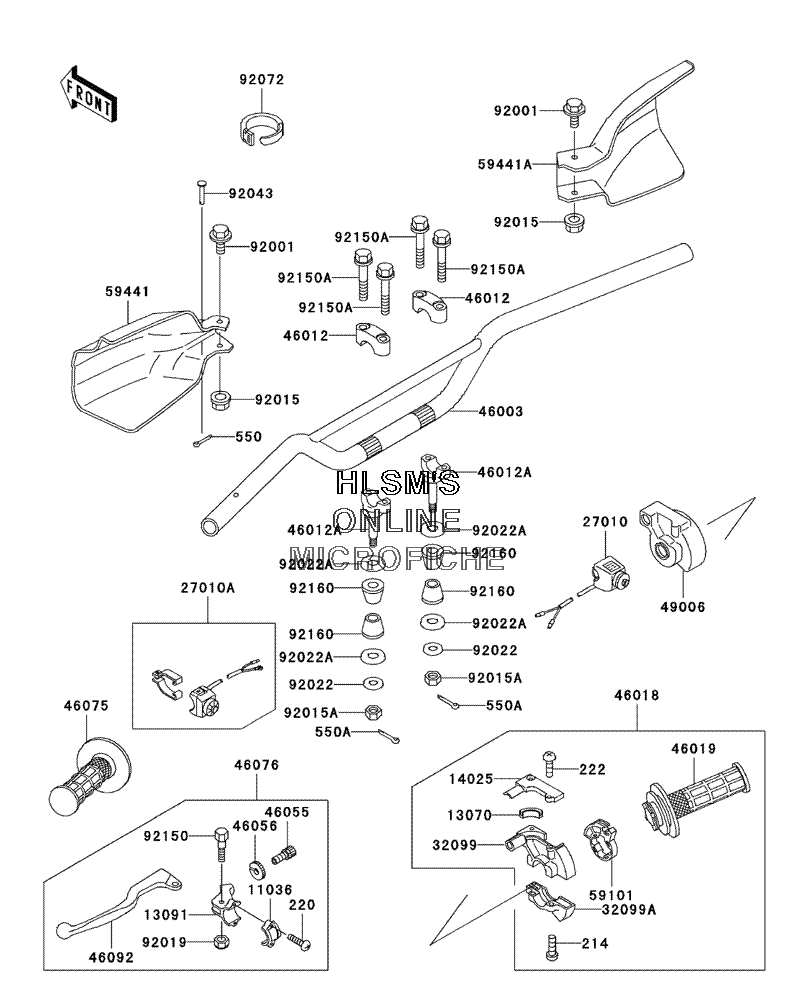

HANDLEBAR для Kawasaki KDX 200 - 2001 года выпуска

  • №
    Артикул
    Название
  • 214
    214C0518 SCREW, PAN+,
    SCREW, PAN+,
  • 220
    220C0514 SCREW, PAN, CROS
    SCREW, PAN, CROS
  • 222
    222E0412 SCREW, CSK, RD, CROS
    SCREW, CSK, RD, CROS
  • 550
    550D1210 PIN, COTTER, 1.2X10
    PIN, COTTER, 1.2X10
  • 550A
    550D2020 PIN, COTTER, 2.0X20
    PIN, COTTER, 2.0X20
  • 11036
    11036-1297 BRACKET, A, LEVER HOLDER
    BRACKET, A, LEVER HOLDER
  • 13070
    13070-1073 GUIDE, THROTTLE PEACE
    GUIDE, THROTTLE PEACE
  • 13091
    13091-1131 HOLDER, CLUTCH LEVER
    HOLDER, CLUTCH LEVER
  • 14025
    14025-1646 COVER, THROTTLE CASE UPPER
    COVER, THROTTLE CASE UPPER
  • 27010
    27010-1279 SWITCH, LIGHTING
    SWITCH, LIGHTING
  • 27010A
    27010-1350 SWITCH, ENGINE STOP
    SWITCH, ENGINE STOP
  • 32099
    32099-1036 CASE, THROTTLE UPPER
    CASE, THROTTLE UPPER
  • 32099A
    32099-1044 CASE, THROTTLE LOWER
    CASE, THROTTLE LOWER
  • 46003
    46003-1399-CE HANDLE (SILVER NO.25)
    HANDLE (SILVER NO.25)
  • 46012
    46012-1191 HOLDER, HANDLE, UPPER
    HOLDER, HANDLE, UPPER
  • 46012A
    46012-1263 HOLDER, HANDLE, LOWER
    HOLDER, HANDLE, LOWER
  • 46018
    46018-1161 GRIP, ASSY., THROTTLE
    GRIP, ASSY., THROTTLE
  • 46019
    46019-1054 GRIP, ASSY., THROTTLE
    GRIP, ASSY., THROTTLE
  • 46055
    46055-009 SCREW, CABLE ADJUST, 8MM
    SCREW, CABLE ADJUST, 8MM
  • 46056
    46056-006 NUT, CABLE ADJUST
    NUT, CABLE ADJUST
  • 46075
    46075-1024 GRIP (LEFT)
    GRIP (LEFT)
  • 46076
    46076-1163 LEVER, ASSY., GRIP, CLUTCH
    LEVER, ASSY., GRIP, CLUTCH
  • 46092
    46092-1110 LEVER, GRIP, CLUTCH
    LEVER, GRIP, CLUTCH
  • 49006
    49006-1097 BOOT, THROTTLE CASE
    BOOT, THROTTLE CASE
  • 59101
    59101-1103 REEL, THROTTLE
    REEL, THROTTLE
  • 59441
    59441-1094-6W COVER, HANDLE (LEFT) (L.GREEN)
    COVER, HANDLE (LEFT) (L.GREEN)
  • 59441A
    59441-1108-6W COVER, HANDLE (RIGHT) (L.GREEN)
    COVER, HANDLE (RIGHT) (L.GREEN)
  • 92001
    92001-1034 BOLT, FLANGED, 6X10
    BOLT, FLANGED, 6X10
  • 92015
    92015-1603 NUT, LOCK, FLANGED, 6MM
    NUT, LOCK, FLANGED, 6MM
  • 92015A
    92015-1962 NUT, LOCK, 10MM
    NUT, LOCK, 10MM
  • 92019
    92019-008 NUT, LOCK, 6MM
    NUT, LOCK, 6MM
  • 92022
    92022-1088 WASHER, 10.2X28X2
    WASHER, 10.2X28X2
  • 92022A
    92022-1737 WASHER
    WASHER
  • 92043
    92043-1434 PIN, 5X27.5
    PIN, 5X27.5
  • 92072
    92072-1293 BAND, L=140
    BAND, L=140
  • 92150
    92150-1291 BOLT
    BOLT
  • 92150A
    92150-1696 BOLT, FLANGED, 8X35
    BOLT, FLANGED, 8X35
  • 92160
    92160-1521 DAMPER
    DAMPER
