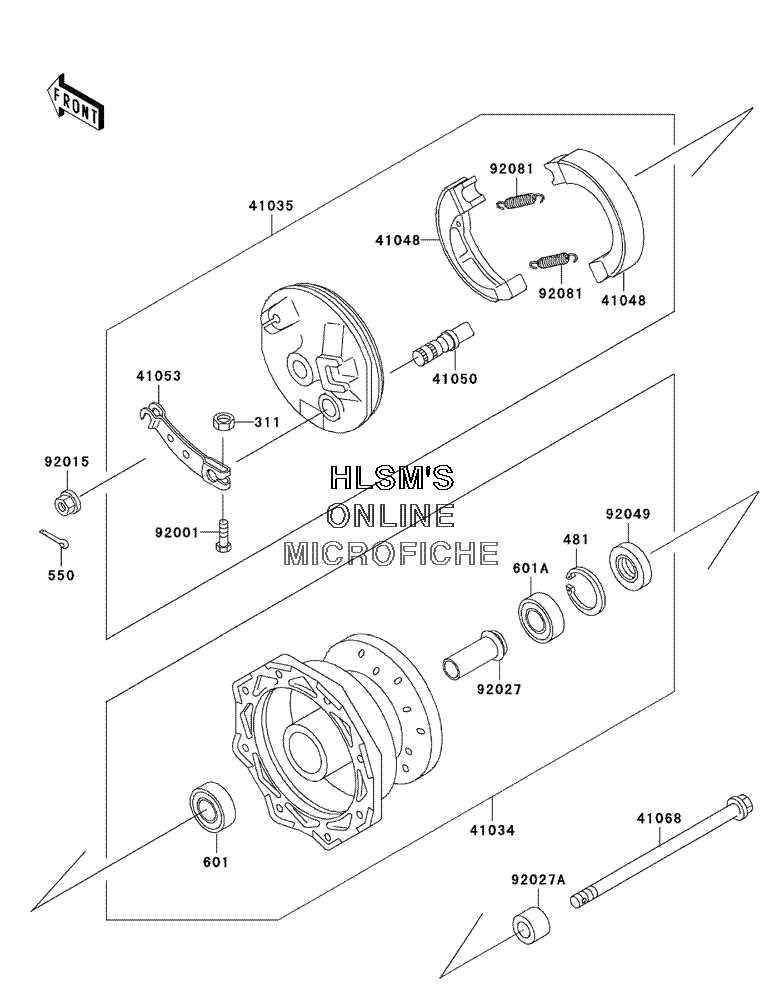

FRONT HUB для Kawasaki KX 60 - 2000 года выпуска

  • №
    Артикул
    Название
  • 311
    311G0500 NUT, HEX
    NUT, HEX
  • 481
    481J3500 CIRCLIP, TYPE, C, 35MM
    CIRCLIP, TYPE, C, 35MM
  • 550
    550D2520 PIN, COTTER, 2.5X20
    PIN, COTTER, 2.5X20
  • 601
    601B6200UU BEARING, BALL, #6200UUC3
    BEARING, BALL, #6200UUC3
  • 601A
    601B6300UU BEARING, BALL, #6300UUC3
    BEARING, BALL, #6300UUC3
  • 41034
    41034-1168 DRUM, ASSY., FRONT BRAKE
    DRUM, ASSY., FRONT BRAKE
  • 41035
    41035-1285 PANEL, ASSY., BRAKE, FRONT
    PANEL, ASSY., BRAKE, FRONT
  • 41048
    41048-1083 SHOE, BRAKE
    SHOE, BRAKE
  • 41050
    41050-1031 CAM, BRAKE
    CAM, BRAKE
  • 41053
    41053-1027 LEVER, BRAKE CAM, FRONT
    LEVER, BRAKE CAM, FRONT
  • 41068
    41068-1305 AXLE, FRONT
    AXLE, FRONT
  • 92001
    92001-1695 BOLT, 5X25
    BOLT, 5X25
  • 92015
    92015-1335 NUT, FLANGED, 10MM
    NUT, FLANGED, 10MM
  • 92027
    92027-1470 COLLAR, FRONT DRUM, L=54
    COLLAR, FRONT DRUM, L=54
  • 92027A
    92027-1472 COLLAR, FRONT AXLE, L=14.5
    COLLAR, FRONT AXLE, L=14.5
  • 92049
    92049-1095 SEAL, OIL, DD20357
    SEAL, OIL, DD20357
  • 92081
    92081-1564 SPRING, BRAKE SHOE
    SPRING, BRAKE SHOE
