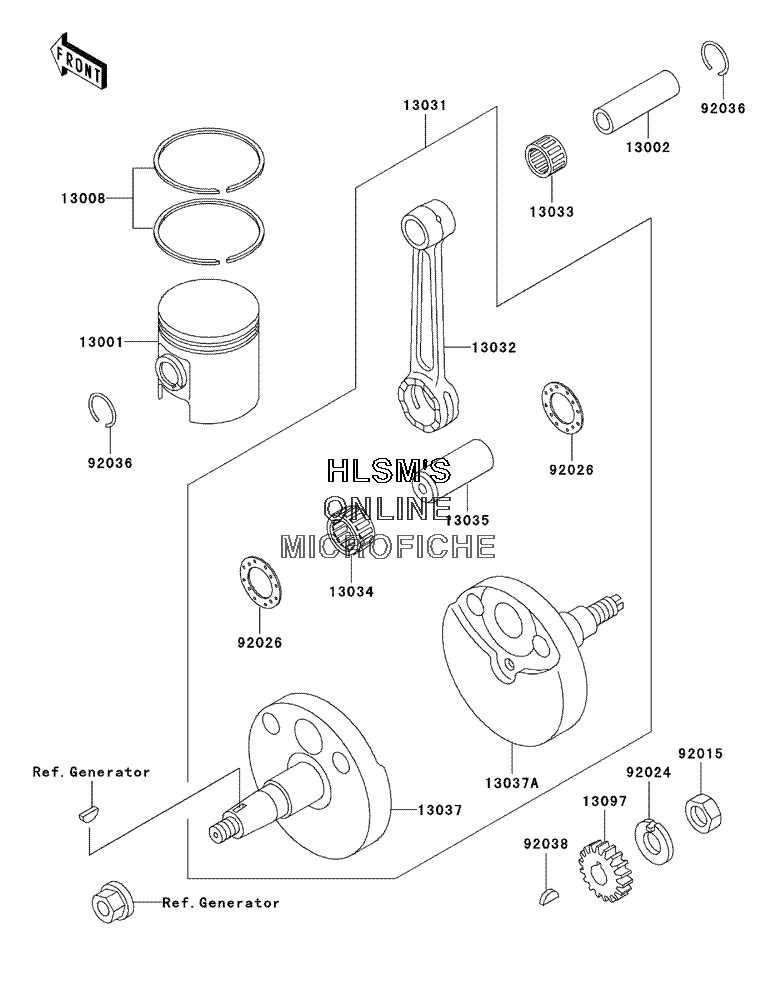

CRANKSHAFT - PISTON(S) для Kawasaki KX 60 - 2000 года выпуска
-
№АртикулНазвание
-
1300113001-1536 PISTON, ENGINE, BPISTON, ENGINE, B
-
1300213002-1119 PIN, PISTONPIN, PISTON
-
1300813008-5050 RING, SET, PISTONRING, SET, PISTON
-
1303113031-1448 CRANKSHAFT, COMPCRANKSHAFT, COMP
-
1303213032-1246 ROD, CONNECTINGROD, CONNECTING
-
1303313033-028 BEARING, NEEDLE, 72KTV030BEARING, NEEDLE, 72KTV030
-
1303413034-1107 BEARING, BIG END, B4BEARING, BIG END, B4
-
1303513035-1002 PIN, CRANKPIN, CRANK
-
1303713037-1204 CRANKSHAFT (LEFT)CRANKSHAFT (LEFT)
-
13037A13037-1220 CRANKSHAFT (RIGHT)CRANKSHAFT (RIGHT)
-
1309713097-1055 GEAR, PRIMARY SPUR (22 TEETH)GEAR, PRIMARY SPUR (22 TEETH)
-
9201592015-006 NUT, 12MMNUT, 12MM
-
9202492024-003 WASHER, CLAW, 12.5X25X0.8WASHER, CLAW, 12.5X25X0.8
-
9202692026-1522 SPACERSPACER
-
9203692036-007 RING, SNAP, PISTON PINRING, SNAP, PISTON PIN
-
9203892038-003 KEY, WOODRUFFKEY, WOODRUFF
