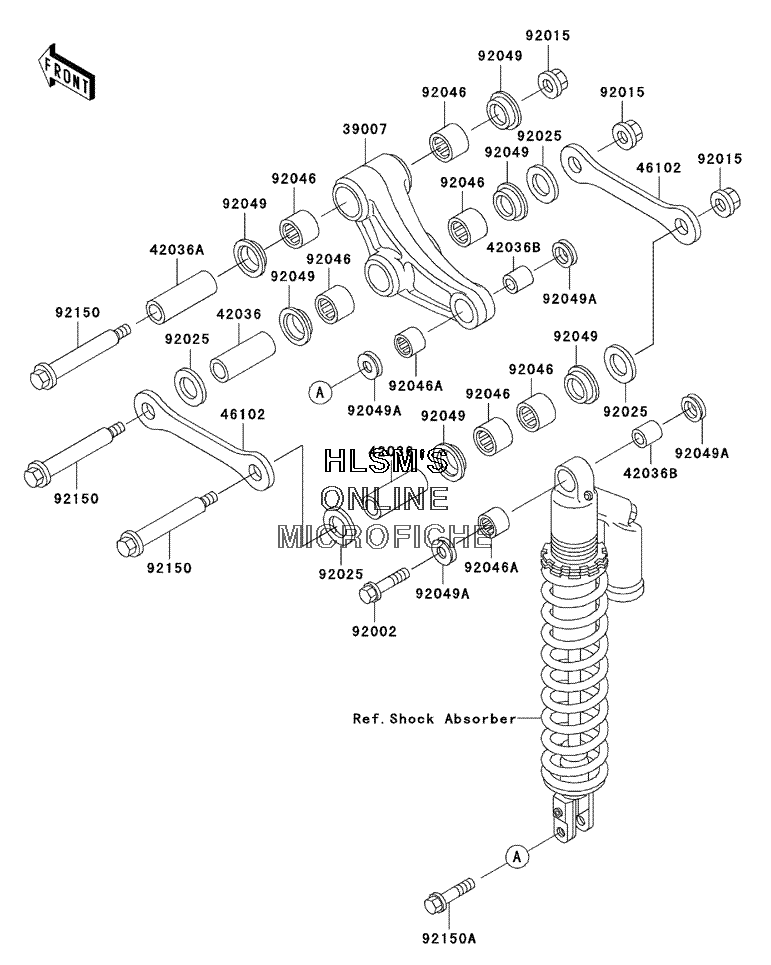

SUSPENSION - REAR для Kawasaki KX 500 - 2000 года выпуска
-
№АртикулНазвание
-
3900739007-1186 ARM, SUSP, UNI TRAKARM, SUSP, UNI TRAK
-
4203642036-1245 SLEEVE, 15X22X57SLEEVE, 15X22X57
-
42036A42036-1246 SLEEVE, 15X22X63SLEEVE, 15X22X63
-
42036B42036-1248 SLEEVE, 10X16X19SLEEVE, 10X16X19
-
4610246102-1253 ROD, SUSPENSIONROD, SUSPENSION
-
9200292002-1936 BOLT, FLANGED, 10X53BOLT, FLANGED, 10X53
-
9201592015-1433 NUT, FLANGED, 12MMNUT, FLANGED, 12MM
-
9202592025-1135 SHIM, 15.3X27.5X0.6SHIM, 15.3X27.5X0.6
-
9204692046-1162 BEARING, NEEDLE, F, 2220BEARING, NEEDLE, F, 2220
-
92046A92046-1192 BEARING, NEEDLE, 16BM2212BEARING, NEEDLE, 16BM2212
-
9204992049-1254 SEAL, OIL, MHA22 28 5.7FSEAL, OIL, MHA22 28 5.7F
-
92049A92049-1330 SEAL, OILSEAL, OIL
-
9215092150-1195 BOLT, ARM, 12MMBOLT, ARM, 12MM
-
92150A92150-1711 BOLT, FLANGED, 10X40BOLT, FLANGED, 10X40
