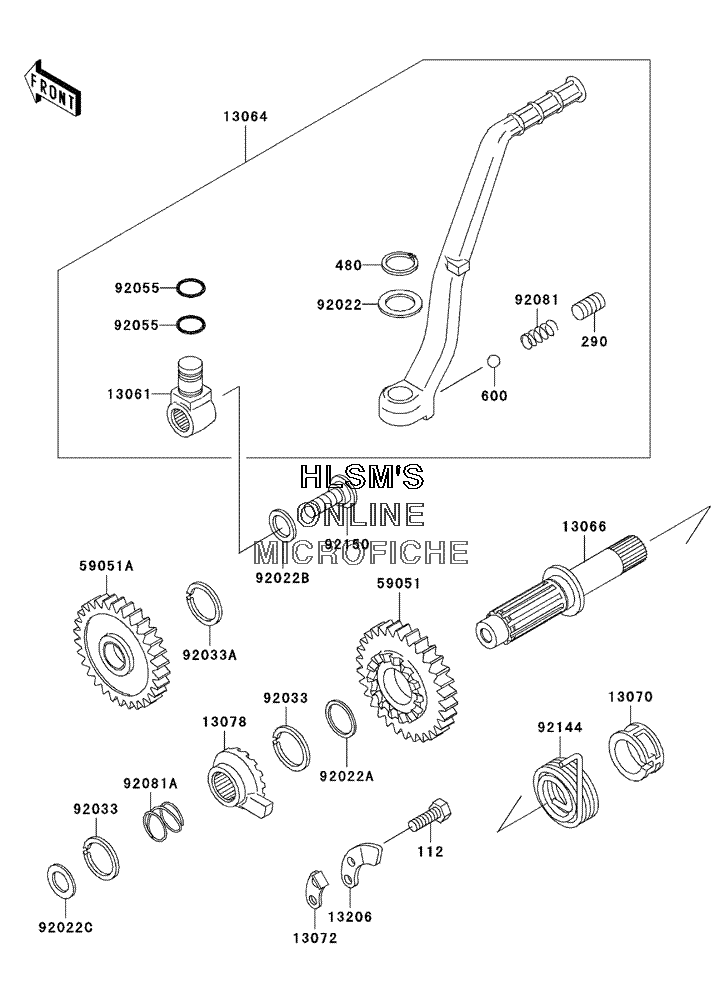

KICKSTARTER MECHANISM для Kawasaki KX 500 - 2000 года выпуска

  • №
    Артикул
    Название
  • 112
    112G0618 BOLT, UPSET
    BOLT, UPSET
  • 290
    290P0812 SCREW, SET, SOCKET
    SCREW, SET, SOCKET
  • 480
    480J1500 CIRCLIP, TYPE, C, 15MM
    CIRCLIP, TYPE, C, 15MM
  • 600
    600A0800 BALL, STEEL, 1/4"
    BALL, STEEL, 1/4"
  • 13061
    13061-1408 BOSS, KICK PEDAL
    BOSS, KICK PEDAL
  • 13064
    13064-1201 LEVER, ASSY., KICK, PEDAL
    LEVER, ASSY., KICK, PEDAL
  • 13066
    13066-1056 SHAFT, KICK
    SHAFT, KICK
  • 13070
    13070-011 GUIDE, KICK SPRING
    GUIDE, KICK SPRING
  • 13072
    13072-014 STOPPER, KICKSTARTER
    STOPPER, KICKSTARTER
  • 13078
    13078-007 RATCHET
    RATCHET
  • 13206
    13206-1003 GUIDE, KICK
    GUIDE, KICK
  • 59051
    59051-1149 GEAR, SPUR, KICKSTARTER (26 TEETH)
    GEAR, SPUR, KICKSTARTER (26 TEETH)
  • 59051A
    59051-1150 GEAR, SPUR, IDLE (26 TEETH)
    GEAR, SPUR, IDLE (26 TEETH)
  • 92022
    92022-1205 WASHER, 16.3X24X1
    WASHER, 16.3X24X1
  • 92022A
    92022-159 WASHER, 25.3X30X0.5
    WASHER, 25.3X30X0.5
  • 92022B
    92022-1944 WASHER
    WASHER
  • 92022C
    92022-252 WASHER, 20.5X25.5X0.5
    WASHER, 20.5X25.5X0.5
  • 92033
    92033-026 RING, SNAP, 24MM
    RING, SNAP, 24MM
  • 92033A
    92033-029 RING, SNAP, 18MM
    RING, SNAP, 18MM
  • 92055
    92055-061 O-RING, 10X1.5
    O-RING, 10X1.5
  • 92081
    92081-020 SPRING, KICK PEDAL
    SPRING, KICK PEDAL
  • 92081A
    92081-097 SPRING
    SPRING
  • 92144
    92144-1115 SPRING, KICKSTARTER
    SPRING, KICKSTARTER
  • 92150
    92150-1800 BOLT, KICK PEDAL
    BOLT, KICK PEDAL
