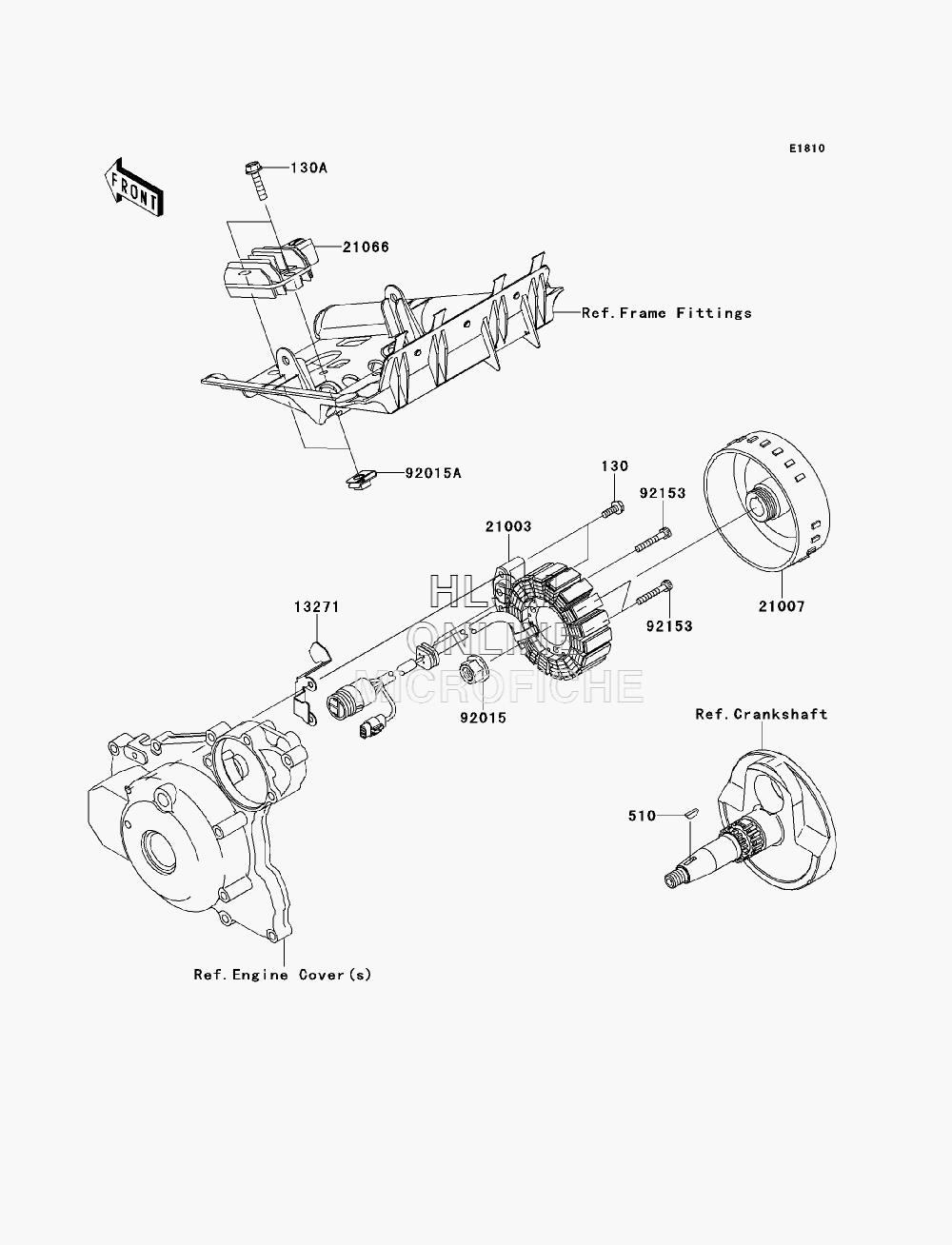

GENERATOR для Kawasaki KFX450R (KSF450BDF) - 2013 года выпуска
-
№АртикулНазвание
-
130130BA0514 BOLT-FLANGED, 5X14BOLT-FLANGED, 5X14
-
130A130BB0625 BOLT-FLANGED, 6X25BOLT-FLANGED, 6X25
-
510510A3200 KEY-WOODRUFFKEY-WOODRUFF
-
1327113271-0760 PLATEPLATE
-
2100321003-0067 STATORSTATOR
-
2100721007-0107 ROTORROTOR
-
2106621066-0042 REGULATOR-VOLTAGEREGULATOR-VOLTAGE
-
9201592015-1426 NUT, 12MMNUT, 12MM
-
92015A92015-1602 NUT, 6MMNUT, 6MM
-
9215392153-1894 BOLT, SOCKET, 5X30BOLT, SOCKET, 5X30
