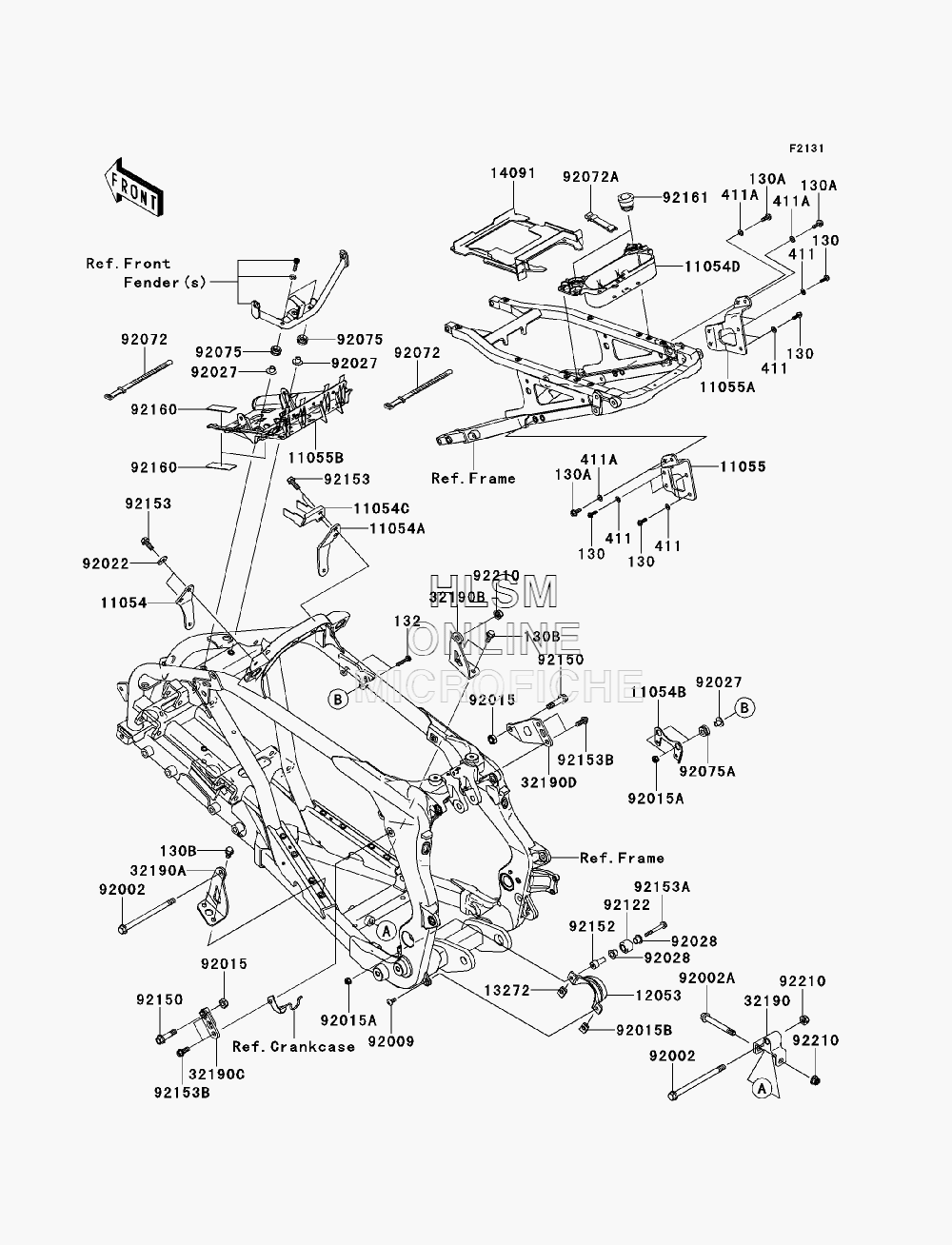

FRAME FITTINGS для Kawasaki KFX450R (KSF450BDF) - 2013 года выпуска

  • №
    Артикул
    Название
  • 130
    130BA0516 BOLT-FLANGED, 5X16
    BOLT-FLANGED, 5X16
  • 130A
    130BA0616 BOLT-FLANGED, 6X16
    BOLT-FLANGED, 6X16
  • 130B
    130CD0818 BOLT-FLANGED, 8X18
    BOLT-FLANGED, 8X18
  • 132
    132BA0630 BOLT-FLANGED-SMALL, 6X30
    BOLT-FLANGED-SMALL, 6X30
  • 411
    411AA0500 WASHER-PLAIN, 5MM
    WASHER-PLAIN, 5MM
  • 411A
    411AA0600 WASHER-PLAIN, 6.5X13X1
    WASHER-PLAIN, 6.5X13X1
  • 11054
    11054-0279 BRACKET, PAD, UPPER, LEFT HAND
    BRACKET, PAD, UPPER, LEFT HAND
  • 11054A
    11054-0280 BRACKET, PAD, UPPER, RIGHT HAND
    BRACKET, PAD, UPPER, RIGHT HAND
  • 11054B
    11054-1805 BRACKET, IGNITION COIL
    BRACKET, IGNITION COIL
  • 11054C
    11054-1819 BRACKET
    BRACKET
  • 11054D
    11054-1881 BRACKET, TOOL CASE
    BRACKET, TOOL CASE
  • 11055
    11055-0070 BRACKET, AIR CLEANER BOX, LEFT HAND
    BRACKET, AIR CLEANER BOX, LEFT HAND
  • 11055A
    11055-0071 BRACKET, AIR CLEANER BOX, RIGHT HAND
    BRACKET, AIR CLEANER BOX, RIGHT HAND
  • 11055B
    11055-1003 BRACKET, ELECTRIC
    BRACKET, ELECTRIC
  • 12053
    12053-0077 GUIDE-CHAIN
    GUIDE-CHAIN
  • 13272
    13272-0080 PLATE, CHAIN GUIDE
    PLATE, CHAIN GUIDE
  • 14091
    14091-0744 COVER, AIR CLEANER
    COVER, AIR CLEANER
  • 32190
    32190-0281 BRACKET-ENGINE
    BRACKET-ENGINE
  • 32190A
    32190-0296 BRACKET-ENGINE, FRONT, LOWER, LEFT HAND
    BRACKET-ENGINE, FRONT, LOWER, LEFT HAND
  • 32190B
    32190-0297 BRACKET-ENGINE, FRONT, LOWER, RIGHT HAND
    BRACKET-ENGINE, FRONT, LOWER, RIGHT HAND
  • 32190C
    32190-0298 BRACKET-ENGINE, HEAD, LEFT HAND
    BRACKET-ENGINE, HEAD, LEFT HAND
  • 32190D
    32190-0299 BRACKET-ENGINE, HEAD, RIGHT HAND
    BRACKET-ENGINE, HEAD, RIGHT HAND
  • 92002
    92002-1348 BOLT, 10X145
    BOLT, 10X145
  • 92002A
    92002-1576 BOLT, ARM, 10MM
    BOLT, ARM, 10MM
  • 92009
    92009-3830 SCREW, 6X15
    SCREW, 6X15
  • 92015
    92015-1189 NUT, LOCK, 10MM, (BLACK)
    NUT, LOCK, 10MM, (BLACK)
  • 92015A
    92015-1339 NUT, LOCK, FLANGED, 6MM
    NUT, LOCK, FLANGED, 6MM
  • 92015B
    92015-1602 NUT, 6MM
    NUT, 6MM
  • 92022
    92022-3744 WASHER, 8.4X23X2.5
    WASHER, 8.4X23X2.5
  • 92027
    92027-1651 COLLAR, FLANGED, L=12.1, (BLACK)
    COLLAR, FLANGED, L=12.1, (BLACK)
  • 92028
    92028-1507 BUSHING
    BUSHING
  • 92072
    92072-056 BAND, L=186
    BAND, L=186
  • 92072A
    92072-1085 BAND
    BAND
  • 92075
    92075-1634 DAMPER
    DAMPER
  • 92075A
    92075-277 DAMPER
    DAMPER
  • 92122
    92122-0020 ROLLER
    ROLLER
  • 92150
    92150-1711 BOLT, FLANGED, 10X40
    BOLT, FLANGED, 10X40
  • 92152
    92152-0585 COLLAR
    COLLAR
  • 92153
    92153-0892 BOLT, 8X20
    BOLT, 8X20
  • 92153A
    92153-0925 BOLT, 6X50, (WHITE)
    BOLT, 6X50, (WHITE)
  • 92153B
    92153-0995 BOLT, FLANGED, 8X20
    BOLT, FLANGED, 8X20
  • 92160
    92160-1075 DAMPER
    DAMPER
  • 92161
    92161-0048 DAMPER
    DAMPER
  • 92210
    92210-1080 NUT, LOCK, FLANGED, 10MM
    NUT, LOCK, FLANGED, 10MM
