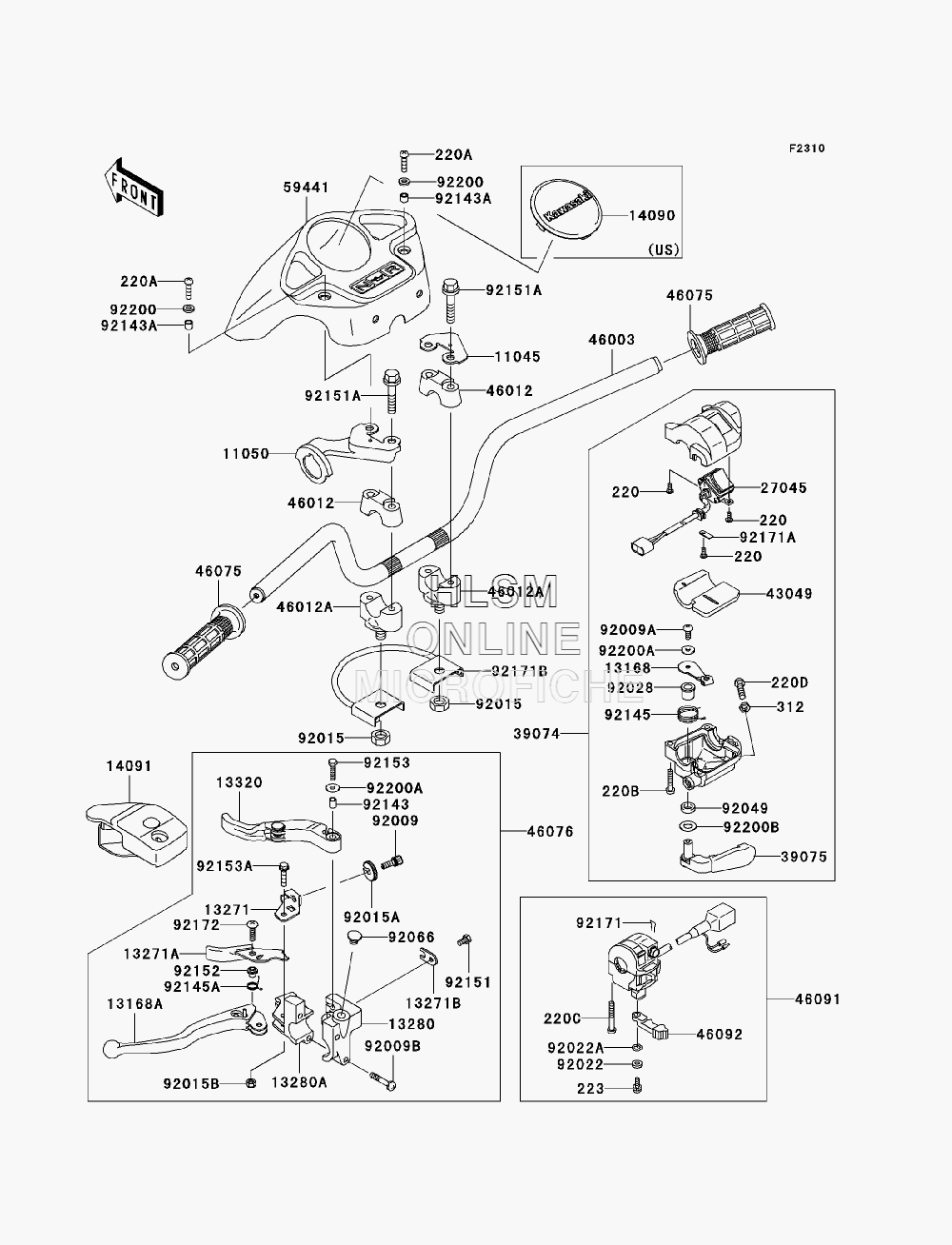

HANDLEBAR для Kawasaki PRAIRIE 360 4X4 REALTREE APG HD (KVF360CBF) - 2011 года выпуска

  • №
    Артикул
    Название
  • 11045
    11045-1925 BRACKET, HANDLE COVER (RIGHT)
    BRACKET, HANDLE COVER (RIGHT)
  • 11050
    11050-1727 BRACKET, HANDLE COVER (LEFT)
    BRACKET, HANDLE COVER (LEFT)
  • 13168
    13168-1715 LEVER (RIGHT)
    LEVER (RIGHT)
  • 13168A
    13168-1736 LEVER (LEFT)
    LEVER (LEFT)
  • 13271
    13271-1259 PLATE, LOCK
    PLATE, LOCK
  • 13271A
    13271-1635 PLATE, LEVER LOCK
    PLATE, LEVER LOCK
  • 13271B
    13271-1636 PLATE, WIRE OUTER STOPPER
    PLATE, WIRE OUTER STOPPER
  • 13280
    13280-1226 HOLDER, DIFF LOCK LEVER
    HOLDER, DIFF LOCK LEVER
  • 13280A
    13280-1227 HOLDER, LEVER (LEFT)
    HOLDER, LEVER (LEFT)
  • 13320
    13320-1018 LEVER-ASSY, DIFF LOCK
    LEVER-ASSY, DIFF LOCK
  • 14090
    14090-1945-6Z COVER, BLIND CAP (F.BLACK) (USA ONLY) (FOR 16P)
    COVER, BLIND CAP (F.BLACK) (USA ONLY) (FOR 16P)
  • 14091
    14091-1403 COVER, DIFF LOCK LEVER
    COVER, DIFF LOCK LEVER
  • 27045
    27045-0010 SWITCH-ASSY
    SWITCH-ASSY
  • 39074
    39074-0002 LEVER-ASSY-THROTTLE
    LEVER-ASSY-THROTTLE
  • 39075
    39075-1062 LEVER-THROTTLE
    LEVER-THROTTLE
  • 43049
    43049-1088 PACKING
    PACKING
  • 46003
    46003-7503 HANDLE
    HANDLE
  • 46012
    46012-1168 HOLDER-HANDLE
    HOLDER-HANDLE
  • 46012A
    46012-7501 HOLDER-HANDLE
    HOLDER-HANDLE
  • 46075
    46075-7501 GRIP, HANDLE
    GRIP, HANDLE
  • 46076
    46076-1238 LEVER-ASSY-GRIP, DIFF LOCK
    LEVER-ASSY-GRIP, DIFF LOCK
  • 46091
    46091-1848 HOUSING-ASSY-CONTROL (LEFT)
    HOUSING-ASSY-CONTROL (LEFT)
  • 46092
    46092-1217 LEVER-GRIP, CHOKE
    LEVER-GRIP, CHOKE
  • 59441
    59441-7501-6Z COVER-HANDLE (F.BLACK) (FOR 16P)
    COVER-HANDLE (F.BLACK) (FOR 16P)
  • 92009
    92009-1435 SCREW, CABLE ADJUST, 8MM
    SCREW, CABLE ADJUST, 8MM
  • 92009A
    92009-1959 SCREW
    SCREW
  • 92009B
    92009-1961 SCREW, 6X30
    SCREW, 6X30
  • 92015
    92015-1429 NUT, LOCK, 10MM
    NUT, LOCK, 10MM
  • 92015A
    92015-1596 NUT, CABLE ADJUST LOCK, 8MM
    NUT, CABLE ADJUST LOCK, 8MM
