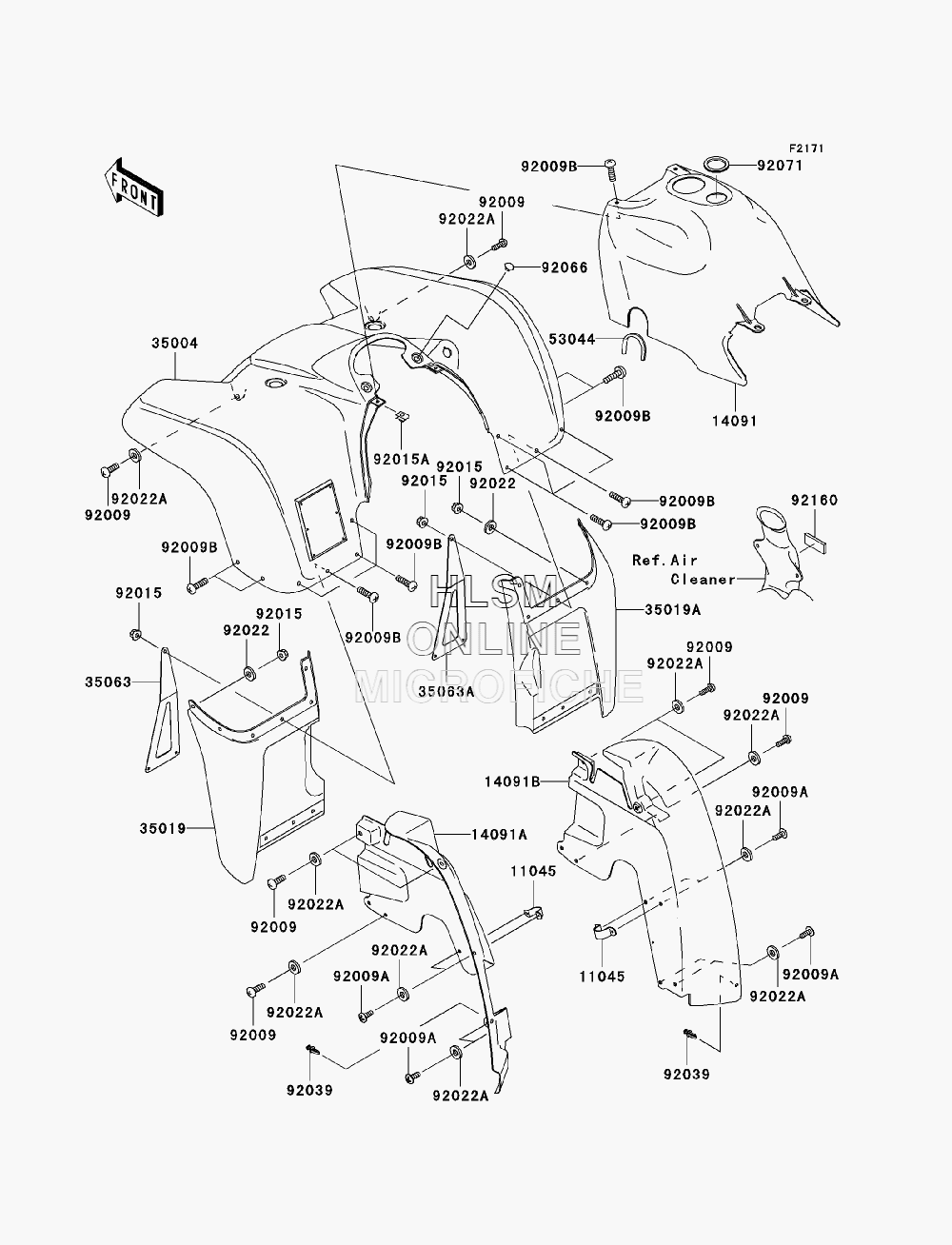

FENDER - FRONT для Kawasaki PRAIRIE 360 4X4 REALTREE APG HD (KVF360CBF) - 2011 года выпуска

  • №
    Артикул
    Название
  • 11045
    11045-1882 BRACKET, FENDER
    BRACKET, FENDER
  • 14091
    14091-0007-16P COVER, FUEL TANK, CAMOUFLAGE (FOR 16P)
    COVER, FUEL TANK, CAMOUFLAGE (FOR 16P)
  • 14091A
    14091-7521 COVER, INNER FLAP (LEFT)
    COVER, INNER FLAP (LEFT)
  • 14091B
    14091-7527 COVER, INNER FLAP (RIGHT)
    COVER, INNER FLAP (RIGHT)
  • 35004
    35004-0144-16P FENDER-FRONT, CAMOUFLAGE (FOR 16P)
    FENDER-FRONT, CAMOUFLAGE (FOR 16P)
  • 35019
    35019-0021-6Z FLAP, FRONT (LEFT) (F.BLACK) (FOR 16P)
    FLAP, FRONT (LEFT) (F.BLACK) (FOR 16P)
  • 35019A
    35019-0022-6Z FLAP, FRONT (RIGHT) (F.BLACK) (FOR 16P)
    FLAP, FRONT (RIGHT) (F.BLACK) (FOR 16P)
  • 35063
    35063-7506 STAY, FRONT FENDER (LEFT)
    STAY, FRONT FENDER (LEFT)
  • 35063A
    35063-7507 STAY, FRONT FENDER (RIGHT)
    STAY, FRONT FENDER (RIGHT)
  • 53044
    53044-1303 TRIM, L=150
    TRIM, L=150
  • 92009
    92009-1166 SCREW, TAPPING, 6X16
    SCREW, TAPPING, 6X16
  • 92009A
    92009-1197 SCREW, TAPPING, 5X14
    SCREW, TAPPING, 5X14
  • 92009B
    92009-1621 SCREW, 6X16
    SCREW, 6X16
  • 92015
    92015-1367 NUT, FLANGED, 6MM
    NUT, FLANGED, 6MM
  • 92015A
    92015-1678 NUT, CLAMP, 6MM
    NUT, CLAMP, 6MM
  • 92022
    92022-1093 WASHER, 6.5X16X1.0
    WASHER, 6.5X16X1.0
  • 92022A
    92022-1346 WASHER, 6.5X20X1.6 (BLACK)
    WASHER, 6.5X20X1.6 (BLACK)
  • 92039
    92039-1229 RIVET
    RIVET
  • 92066
    92066-1485 PLUG
    PLUG
  • 92071
    92071-7503 GROMMET, FUEL TANK COVER
    GROMMET, FUEL TANK COVER
  • 92160
    92160-1834 DAMPER
    DAMPER
