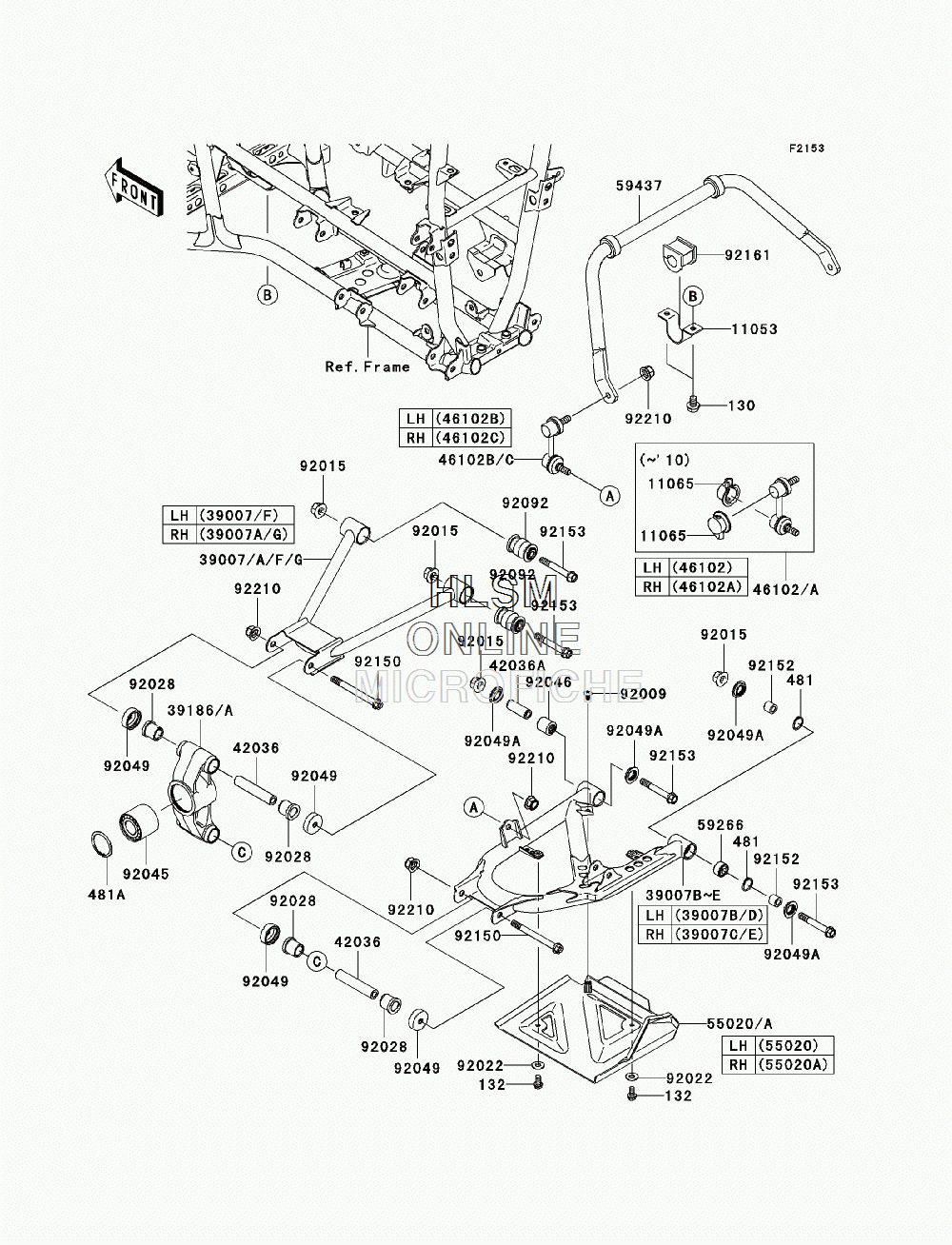

SUSPENSION - REAR для Kawasaki BRUTE FORCE 750 4X4I (KVF750D8F) - 2008 года выпуска

  • №
    Артикул
    Название
  • 130
    130BB0812 BOLT-FLANGED,8X12
    BOLT-FLANGED,8X12
  • 132
    132BB0612 BOLT-FLANGED-SMALL,6X12
    BOLT-FLANGED-SMALL,6X12
  • 481
    481J2400 CIRCLIP
    CIRCLIP
  • 481A
    481J5200 CIRCLIP
    CIRCLIP
  • 11053
    11053-1833 BRACKET,STABILIZER
    BRACKET,STABILIZER
  • 11065
    11065-0086 CAP
    CAP
  • 39007
    39007-0021 ARM-SUSP, REAR,UPP, LEFT HAND
    ARM-SUSP, REAR,UPP, LEFT HAND
  • 39007A
    39007-0022 ARM-SUSP, REAR,UPP, RIGHT HAND
    ARM-SUSP, REAR,UPP, RIGHT HAND
  • 39007B
    39007-0038 ARM-SUSP, REAR,LWR, LEFT HAND
    ARM-SUSP, REAR,LWR, LEFT HAND
  • 39007C
    39007-0039 ARM-SUSP, REAR,LWR, RIGHT HAND
    ARM-SUSP, REAR,LWR, RIGHT HAND
  • 39186
    39186-0030 KNUCKLE, REAR
    KNUCKLE, REAR
  • 42036
    42036-1190 SLEEVE,10X17X85.6
    SLEEVE,10X17X85.6
  • 42036A
    42036-1376 SLEEVE
    SLEEVE
  • 46102
    46102-0055 ROD,STABILIZER, LEFT HAND
    ROD,STABILIZER, LEFT HAND
  • 46102A
    46102-0056 ROD,STABILIZER, RIGHT HAND
    ROD,STABILIZER, RIGHT HAND
  • 55020
    55020-0166-6Z GUARD, REAR ARM, LEFT HAND,F.BLACK
    GUARD, REAR ARM, LEFT HAND,F.BLACK
  • 55020A
    55020-0167-6Z GUARD, REAR ARM, RIGHT HAND,F.BLACK
    GUARD, REAR ARM, RIGHT HAND,F.BLACK
  • 59266
    59266-0013 JOINT-BALL
    JOINT-BALL
  • 59437
    59437-0001 STABILIZER
    STABILIZER
  • 92009
    92009-1480 SCREW,6X12
    SCREW,6X12
  • 92015
    92015-1415 NUT,FLANGED,10MM
    NUT,FLANGED,10MM
  • 92022
    92022-024 WASHER,7X16X1.2
    WASHER,7X16X1.2
  • 92028
    92028-1466 BUSHING
    BUSHING
  • 92045
    92045-0094 BEARING-BALL,25BWD02ACA68
    BEARING-BALL,25BWD02ACA68
  • 92046
    92046-1046 BEARING-NEEDLE
    BEARING-NEEDLE
  • 92049
    92049-1198 SEAL-OIL,KNUCKLE
    SEAL-OIL,KNUCKLE
  • 92049A
    92049-1223 SEAL-OIL,MHA17245.7F
    SEAL-OIL,MHA17245.7F
  • 92092
    92092-0004 BUSHING-RUBBER
    BUSHING-RUBBER
  • 92150
    92150-1624 BOLT,FLANGED,10X105
    BOLT,FLANGED,10X105
  • 92152
    92152-1455 COLLAR,10X17X14.5
    COLLAR,10X17X14.5
  • 92153
    92153-0666 BOLT,FLANGED,10X70
    BOLT,FLANGED,10X70
  • 92161
    92161-0265 DAMPER
    DAMPER
  • 92210
    92210-0276 NUT,LOCK,FLANGED,10MM
    NUT,LOCK,FLANGED,10MM
