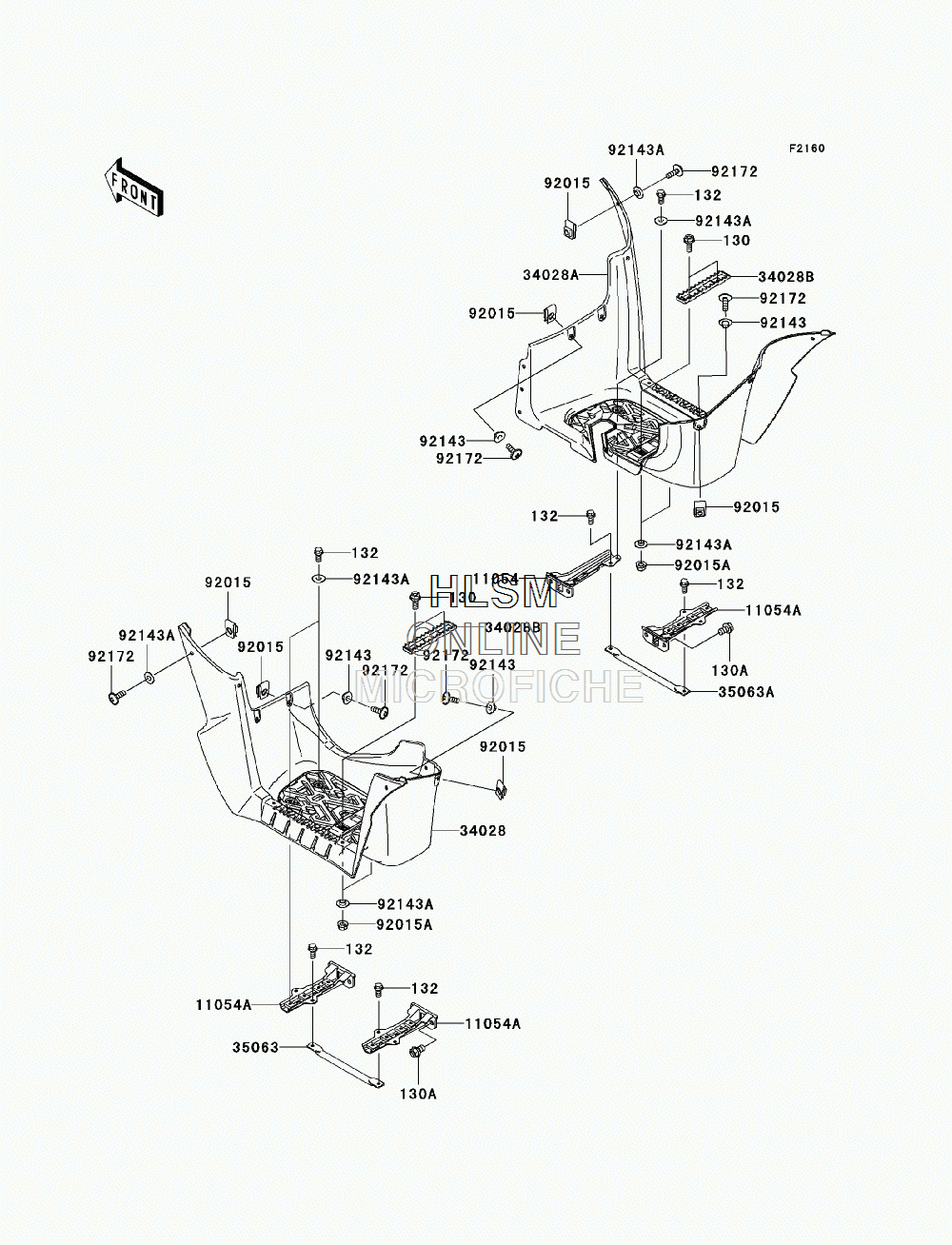

FOOTRESTS для Kawasaki BRUTE FORCE 750 4X4I (KVF750D8F) - 2008 года выпуска

  • №
    Артикул
    Название
  • 130
    130BB0616 BOLT-FLANGED,6X16
    BOLT-FLANGED,6X16
  • 130A
    130CB1016 BOLT-FLANGED,10X16
    BOLT-FLANGED,10X16
  • 132
    132BB0612 BOLT-FLANGED-SMALL,6X12
    BOLT-FLANGED-SMALL,6X12
  • 11054
    11054-1229 BRACKET,FOOT BOARD, RIGHT HAND
    BRACKET,FOOT BOARD, RIGHT HAND
  • 11054
    11054-1229 BRACKET,FOOT BOARD, RIGHT HAND
    BRACKET,FOOT BOARD, RIGHT HAND
  • 11054A
    11054-1232 BRACKET,FOOT BOARD
    BRACKET,FOOT BOARD
  • 34028
    34028-0054-6Z STEP,FOOT BOARD, LEFT HAND,F.BLACK
    STEP,FOOT BOARD, LEFT HAND,F.BLACK
  • 34028A
    34028-0055-6Z STEP,FOOT BOARD, RIGHT HAND,F.BLACK
    STEP,FOOT BOARD, RIGHT HAND,F.BLACK
  • 34028B
    34028-0087-21 STEP,FOOT PEG,F.BLACK
    STEP,FOOT PEG,F.BLACK
  • 35063
    35063-0394 STAY,STEP, LEFT HAND
    STAY,STEP, LEFT HAND
  • 35063A
    35063-0395 STAY,STEP, RIGHT HAND
    STAY,STEP, RIGHT HAND
  • 92015
    92015-1602 NUT,6MM
    NUT,6MM
  • 92015A
    92015-1603 NUT,LOCK,FLANGED,6MM
    NUT,LOCK,FLANGED,6MM
  • 92143
    92143-1057 COLLAR
    COLLAR
  • 92143A
    92143-1087 COLLAR
    COLLAR
  • 92172
    92172-0002 SCREW,6X18
    SCREW,6X18
