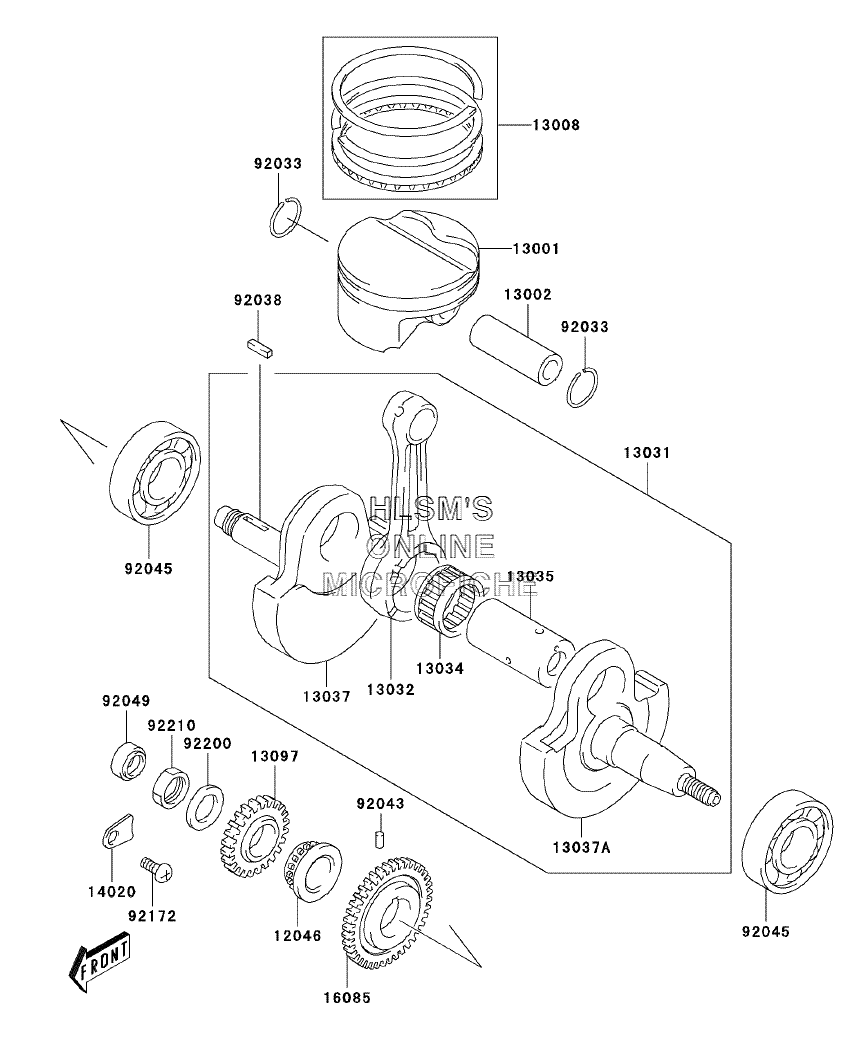

CRANKSHAFT/PISTON(S) для Kawasaki KFX400 (KSF400A6F) - 2006 года выпуска`
-
№АртикулНазвание
-
1204612046-S006 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
1300113001-S006 PISTON-ENGINEPISTON-ENGINE
-
1300213002-S006 PIN-PISTONPIN-PISTON
-
1300813008-S008 RING-SET-PISTONRING-SET-PISTON
-
1303113031-S012 CRANKSHAFT-COMPCRANKSHAFT-COMP
-
1303213032-S007 ROD-CONNECTINGROD-CONNECTING
-
1303413034-S008 BEARING-BIG ENDBEARING-BIG END
-
1303513035-S006 PIN-CRANKPIN-CRANK
-
1303713037-S011 CRANKSHAFT (RIGHT)CRANKSHAFT (RIGHT)
-
13037A13037-S012 CRANKSHAFT (LEFT)CRANKSHAFT (LEFT)
-
1309713097-S007 GEAR-PRIMARY SPURGEAR-PRIMARY SPUR
-
1402014020-S009 RETAINERRETAINER
-
1608516085-S004 GEAR, CRANK BALANCERGEAR, CRANK BALANCER
-
9203392033-S040 RING-SNAP, PISTON PINRING-SNAP, PISTON PIN
-
9203892038-S006 KEY, PRIMARY DRIVE GEARKEY, PRIMARY DRIVE GEAR
-
9204392043-S008 PIN, 5X8PIN, 5X8
-
9204592045-S054 BEARING-BALL, CRANKSHAFTBEARING-BALL, CRANKSHAFT
-
9204992049-S048 SEAL-OIL, CRANKSHAFT (RIGHT)SEAL-OIL, CRANKSHAFT (RIGHT)
-
9217292172-S166 SCREWSCREW
-
9220092200-S140 WASHERWASHER
-
9221092210-S102 NUT, PRIMARY DRIVE GEARNUT, PRIMARY DRIVE GEAR
