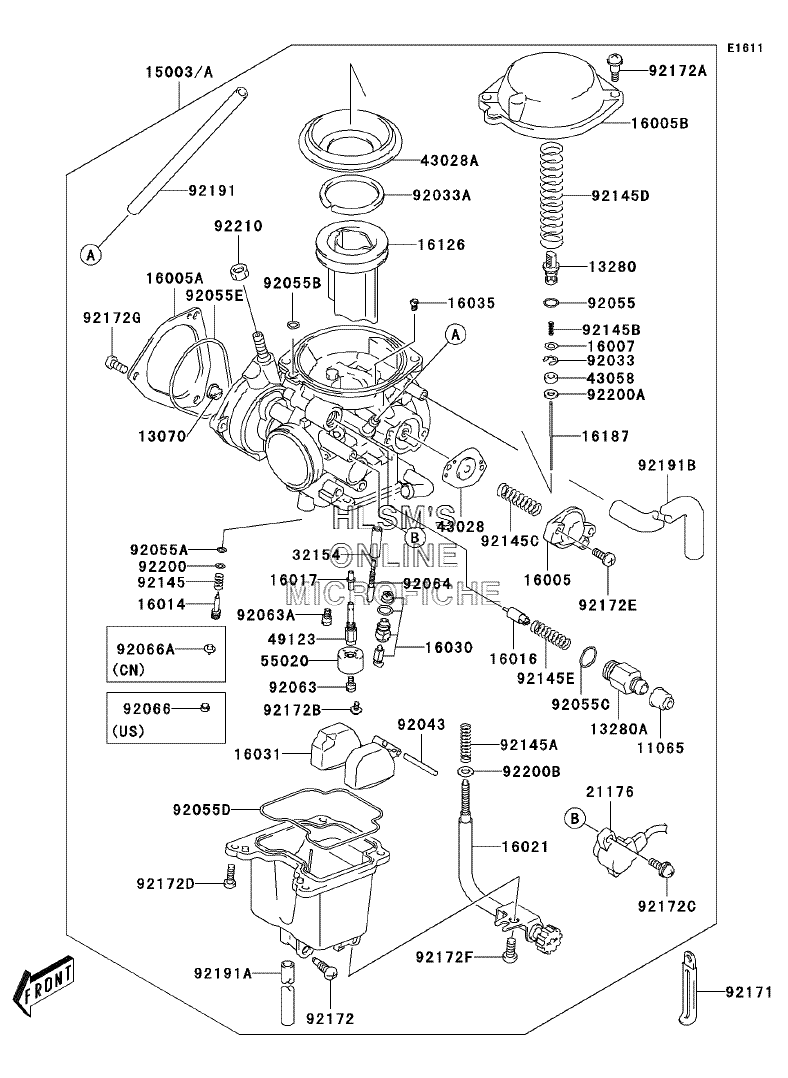

CARBURETOR для Kawasaki KFX400 (KSF400A6F) - 2006 года выпуска
-
№АртикулНазвание
-
1106511065-S020 CAPCAP
-
1307013070-S010 GUIDEGUIDE
-
1328013280-S002 HOLDERHOLDER
-
13280A13280-S038 HOLDERHOLDER
-
1500315003-S026 CARBURETOR-ASSY (CANADA ONLY)CARBURETOR-ASSY (CANADA ONLY)
-
15003A15003-S027 CARBURETOR-ASSY (USA ONLY)CARBURETOR-ASSY (USA ONLY)
-
1600516005-S004 TOP-CHAMBERTOP-CHAMBER
-
16005A16005-S005 TOP-CHAMBER, THROTTLETOP-CHAMBER, THROTTLE
-
16005B16005-S011 TOP-CHAMBER, DIAPHRAGMTOP-CHAMBER, DIAPHRAGM
-
1600716007-S005 SEAT-SPRINGSEAT-SPRING
-
1601416014-S010 SCREW-PILOT AIRSCREW-PILOT AIR
-
1601616016-S007 PLUNGERPLUNGER
-
1601716017-S005 JET-NEEDLE, P-0MJET-NEEDLE, P-0M
-
1602116021-S005 SCREW-THROTTLE STOPSCREW-THROTTLE STOP
-
1603016030-S006 VALVE-FLOATVALVE-FLOAT
-
1603116031-S006 FLOATFLOAT
-
1603516035-S006 JET-AIRJET-AIR
-
1612616126-S010 VALVEVALVE
-
1618716187-S007 NEEDLE-JET, 5E26-1NEEDLE-JET, 5E26-1
-
2117621176-S001 SENSORSENSOR
-
3215432154-S004 PIPEPIPE
-
4302843028-S008 DIAPHRAGMDIAPHRAGM
-
43028A43028-S009 DIAPHRAGMDIAPHRAGM
-
4305843058-S001 RINGRING
-
4912349123-S008 HOLDER-MAIN JETHOLDER-MAIN JET
-
5502055020-S039 GUARD, JETGUARD, JET
-
9203392033-S008 RING-SNAP, MULTIPLE JETRING-SNAP, MULTIPLE JET
-
92033A92033-S041 RING-SNAPRING-SNAP
-
9204392043-S034 PINPIN
-
9205592055-S003 RING-O, ID:4.8RING-O, ID:4.8
-
92055A92055-S013 RING-ORING-O
-
92055B92055-S044 RING-ORING-O
-
92055C92055-S048 RING-ORING-O
-
92055D92055-S058 RING-ORING-O
-
92055E92055-S065 RING-ORING-O
-
9206392063-S007 JET-MAIN, #130JET-MAIN, #130
-
92063A92063-S008 JET-MAIN, #60JET-MAIN, #60
-
9206492064-S008 JET-PILOT, #22.5JET-PILOT, #22.5
-
9206692066-S027 PLUG (USA ONLY)PLUG (USA ONLY)
-
92066A92066-S041 PLUG (CANADA ONLY)PLUG (CANADA ONLY)
-
9214592145-S010 SPRING, THROTTLE SCREWSPRING, THROTTLE SCREW
-
92145A92145-S095 SPRINGSPRING
-
92145B92145-S097 SPRINGSPRING
-
92145C92145-S098 SPRINGSPRING
-
92145D92145-S099 SPRINGSPRING
-
92145E92145-S109 SPRINGSPRING
-
9217192171-S132 CLAMP, L=45CLAMP, L=45
-
9217292172-S046 SCREW, DRAINSCREW, DRAIN
-
92172A92172-S047 SCREWSCREW
-
92172B92172-S048 SCREWSCREW
-
92172C92172-S049 SCREWSCREW
-
92172D92172-S057 SCREWSCREW
-
92172E92172-S139 SCREWSCREW
-
92172F92172-S164 SCREWSCREW
-
92172G92172-S180 SCREWSCREW
-
9219192191-S054 TUBE, 5X9X175TUBE, 5X9X175
-
92191A92191-S058 TUBETUBE
-
92191B92191-S059 TUBETUBE
-
9220092200-S019 WASHERWASHER
-
92200A92200-S083 WASHERWASHER
-
92200B92200-S151 WASHERWASHER
-
9221092210-S121 NUTNUT
