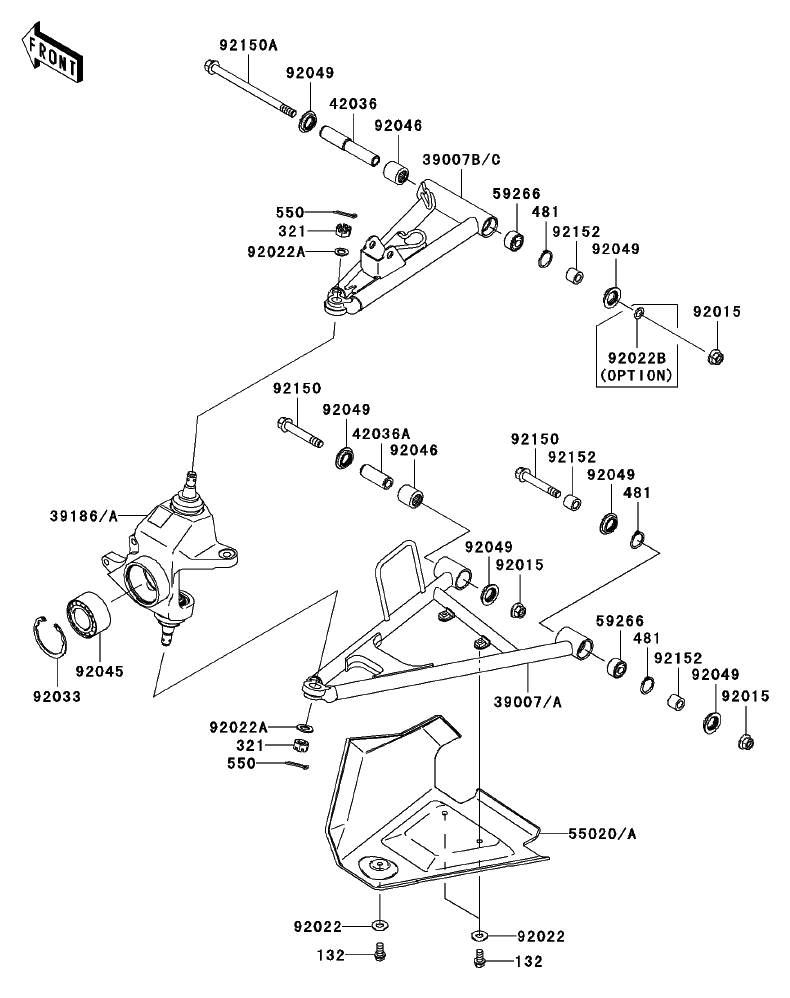

SUSPENSION - FRONT для Kawasaki Brute Force 750 4x4i (KVF750-A1) - 2005 года выпуска

  • №
    Артикул
    Название
  • 132
    132J0612 BOLT-FLANGED-SMALL
    BOLT-FLANGED-SMALL
  • 321
    321H1200 NUT-CASTLE, 12MM
    NUT-CASTLE, 12MM
  • 481
    481J2400 CIRCLIP
    CIRCLIP
  • 550
    550D3025 PIN-COTTER, 3.0X25
    PIN-COTTER, 3.0X25
  • 39007
    39007-0040 ARM-SUSPENSION FRONT (LOWER/LEFT)
    ARM-SUSPENSION FRONT (LOWER/LEFT)
  • 39007A
    39007-0041 ARM-SUSPENSION FRONT (LOWER/RIGHT)
    ARM-SUSPENSION FRONT (LOWER/RIGHT)
  • 39007B
    39007-7507 ARM-SUSPENSION FRONT (UPPER/LEFT)
    ARM-SUSPENSION FRONT (UPPER/LEFT)
  • 39007C
    39007-7508 ARM-SUSPENSION FRONT (UPPER/RIGHT)
    ARM-SUSPENSION FRONT (UPPER/RIGHT)
  • 39186
    39186-0020 KNUCKLE, FRONT (LEFT)
    KNUCKLE, FRONT (LEFT)
  • 39186A
    39186-0021 KNUCKLE, FRONT (RIGHT)
    KNUCKLE, FRONT (RIGHT)
  • 42036
    42036-0016 SLEEVE, SUSPENSION ARM
    SLEEVE, SUSPENSION ARM
  • 42036A
    42036-1376 SLEEVE
    SLEEVE
  • 55020
    55020-0109-6Z GUARD, FRONT ARM (LEFT/F.BLACK)
    GUARD, FRONT ARM (LEFT/F.BLACK)
  • 55020A
    55020-0110-6Z GUARD, FRONT ARM (RIGHT/F.BLACK)
    GUARD, FRONT ARM (RIGHT/F.BLACK)
  • 59266
    59266-1011 JOINT-BALL
    JOINT-BALL
  • 92015
    92015-1415 NUT, FLANGED, 10MM
    NUT, FLANGED, 10MM
  • 92022
    92022-024 WASHER, 7X16X1.2
    WASHER, 7X16X1.2
  • 92022A
    92022-1065 WASHER, 12.3X22X1.6
    WASHER, 12.3X22X1.6
  • 92022B
    92022-1829 WASHER, 10.2X16X1 (OPT)
    WASHER, 10.2X16X1 (OPT)
  • 92033
    92033-1274 RING-SNAP, 55MM
    RING-SNAP, 55MM
  • 92045
    92045-1448 BEARING-BALL, 30BWD08A
    BEARING-BALL, 30BWD08A
  • 92046
    92046-1046 BEARING-NEEDLE
    BEARING-NEEDLE
  • 92049
    92049-1223 SEAL-OIL, MHA17245.7F
    SEAL-OIL, MHA17245.7F
  • 92150
    92150-1384 BOLT, FLANGED, 10X63
    BOLT, FLANGED, 10X63
  • 92150A
    92150-1686 BOLT, FLANGED, 10X150
    BOLT, FLANGED, 10X150
  • 92152
    92152-1455 COLLAR, 10X17X14.5
    COLLAR, 10X17X14.5
