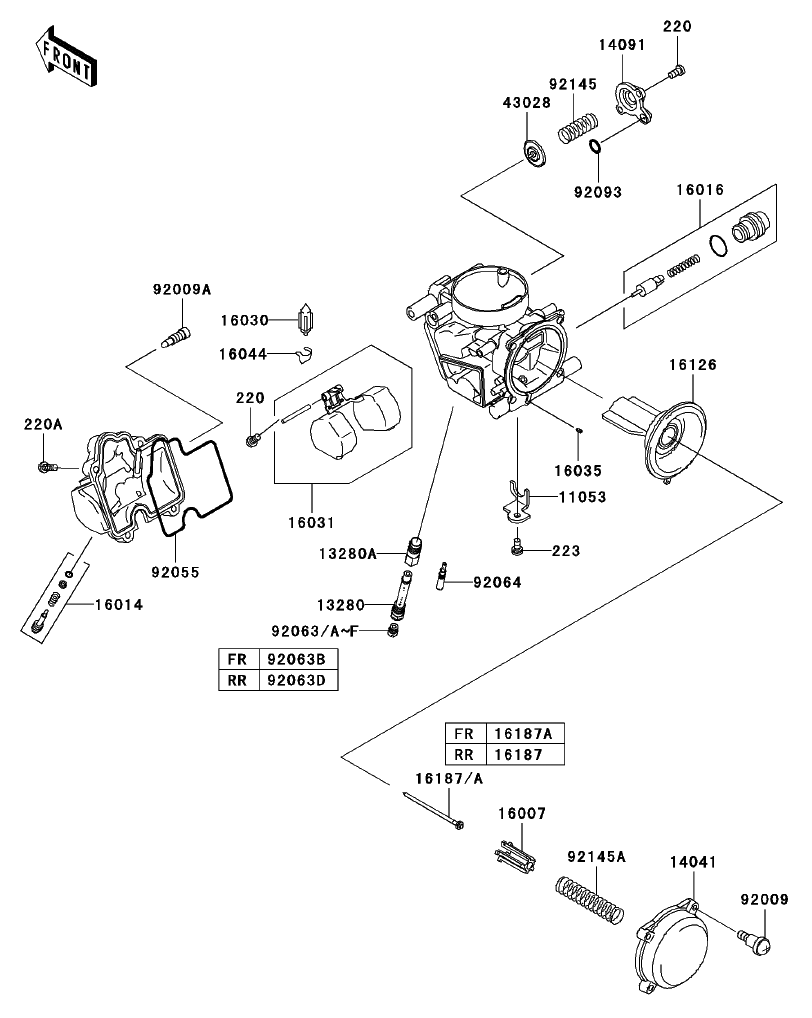

CARBURETOR PARTS для Kawasaki Brute Force 750 4x4i (KVF750-A1) - 2005 года выпуска
-
№АртикулНазвание
-
220220D0408 SCREW-PAN-CROSSCREW-PAN-CROS
-
220A220D0414 SCREW-PAN-CROSSCREW-PAN-CROS
-
223223D0408 SCREW-PAN-WS-CROSSCREW-PAN-WS-CROS
-
1105311053-1606 BRACKETBRACKET
-
1328013280-0115 HOLDERHOLDER
-
13280A13280-1096 HOLDER, JETHOLDER, JET
-
1404114041-1091 CAP-CHAMBER, MIXINGCAP-CHAMBER, MIXING
-
1409114091-1246 COVER, AIR CUT VALVECOVER, AIR CUT VALVE
-
1600716007-1117 SEAT-SPRING, VALVESEAT-SPRING, VALVE
-
1601416014-0009 SCREW-PILOT AIRSCREW-PILOT AIR
-
1601616016-1117 PLUNGERPLUNGER
-
1603016030-1007 VALVE-FLOATVALVE-FLOAT
-
1603116031-1097 FLOATFLOAT
-
1603516035-1055 JET-AIR, LEAKJET-AIR, LEAK
-
1604416044-007 CLAMP, FLOAT VALVECLAMP, FLOAT VALVE
-
1612616126-0015 VALVEVALVE
-
1618716187-0156 NEEDLE-JET, NFKLNEEDLE-JET, NFKL
-
16187A16187-0169 NEEDLE-JET, N4MTNEEDLE-JET, N4MT
-
4302843028-1085 DIAPHRAGM, AIR CUT VALVEDIAPHRAGM, AIR CUT VALVE
-
9200992009-1549 SCREW, 4X4.4SCREW, 4X4.4
-
92009A92009-1551 SCREW, DRAIN, M6X0.75SCREW, DRAIN, M6X0.75
-
9205592055-1589 RING-O, FLOAT CHAMBERRING-O, FLOAT CHAMBER
-
9206392063-1324 JET-MAIN, #148 (OPT)JET-MAIN, #148 (OPT)
-
92063A92063-1330 JET-MAIN, #150 (OPT)JET-MAIN, #150 (OPT)
-
92063B92063-1331 JET-MAIN, #152JET-MAIN, #152
-
92063C92063-1332 JET-MAIN, #155 (OPT)JET-MAIN, #155 (OPT)
-
92063D92063-1344 JET-MAIN, #158JET-MAIN, #158
-
92063E92063-1345 JET-MAIN, #160 (OPT)JET-MAIN, #160 (OPT)
-
92063F92063-1346 JET-MAIN, #162 (OPT)JET-MAIN, #162 (OPT)
-
9206492064-0011 JET-PILOT, #38JET-PILOT, #38
-
9209392093-1046 SEAL, "U"RINGSEAL, "U"RING
-
9214592145-0097 SPRING, AIR CUT VALVESPRING, AIR CUT VALVE
-
92145A92145-0267 SPRINGSPRING
