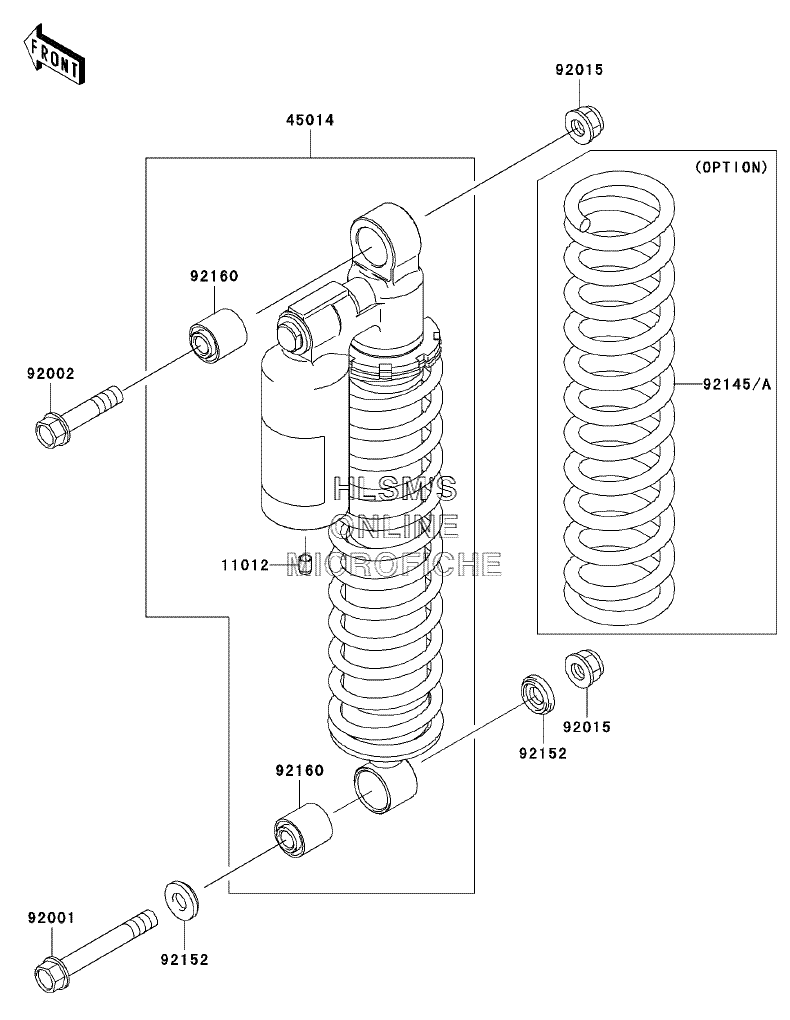

SUSPENSION - SHOCK ABSORBER для Kawasaki Prairie 700 4x4 (KVF700-A1) - 2004 года выпуска
-
№АртикулНазвание
-
1101211012-1283 CAPCAP
-
4501445014-0028 SHOCKABSORBERSHOCKABSORBER
-
9200192001-1693 BOLT,FLANGED,12X88BOLT,FLANGED,12X88
-
9200292002-1840 BOLT,FLANGED,12X55BOLT,FLANGED,12X55
-
9201592015-1617 NUT,FLANGED,LOCK,12MMNUT,FLANGED,LOCK,12MM
-
9214592145-0010 SPRING,SHOCKABSORBER,K=2.5 (OPTION)SPRING,SHOCKABSORBER,K=2.5 (OPTION)
-
9215292152-1293 COLLARCOLLAR
-
9216092160-1777 DAMPER,SHOCKABSORBERDAMPER,SHOCKABSORBER
