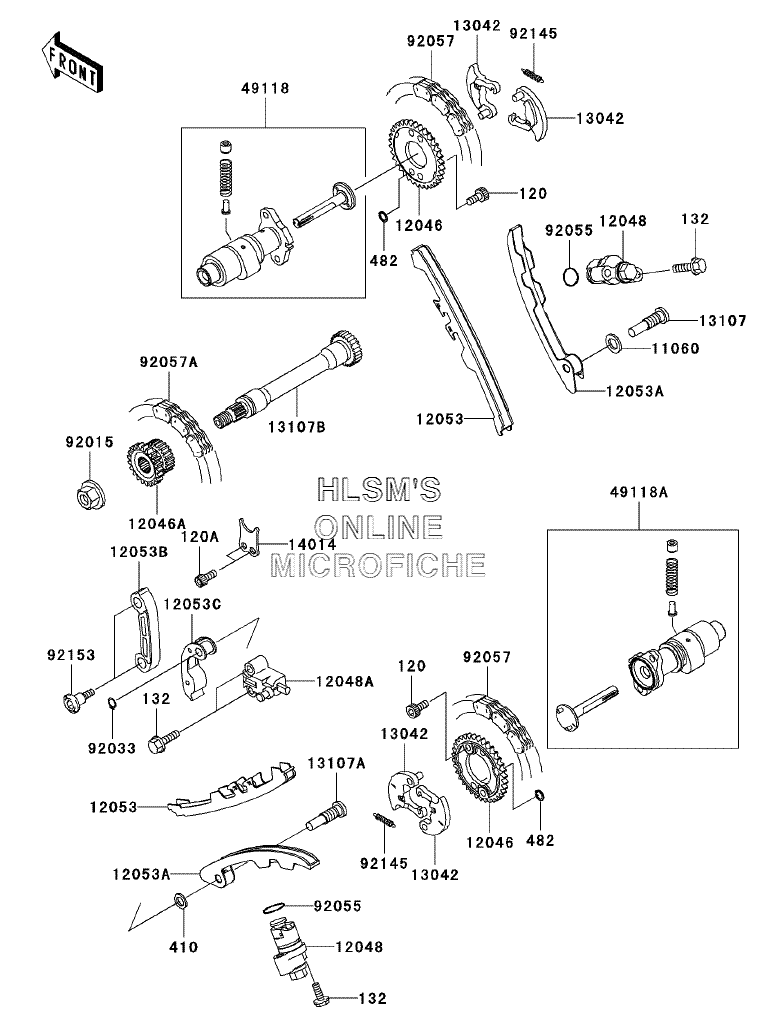

CAMSHAFT(S)/TENSIONER для Kawasaki Prairie 700 4x4 (KVF700-A1) - 2004 года выпуска

  • №
    Артикул
    Название
  • 120
    120P0610 BOLT-SOCKET,6X10
    BOLT-SOCKET,6X10
  • 120A
    120S0614 BOLT-SOCKET,6X14
    BOLT-SOCKET,6X14
  • 132
    132Y0630 BOLT-FLANGED-SMALL,6X30
    BOLT-FLANGED-SMALL,6X30
  • 410
    410B0800 WASHER-PLAIN-SMALL,8MM
    WASHER-PLAIN-SMALL,8MM
  • 482
    482J5000 CIRCLIP-TYPE-E
    CIRCLIP-TYPE-E
  • 11060
    11060-1966 GASKET
    GASKET
  • 12046
    12046-1203 SPROCKET,CAMSHAFT,34T
    SPROCKET,CAMSHAFT,34T
  • 12046A
    12046-1207 SPROCKET,2ND SHAFT,21T & 17T
    SPROCKET,2ND SHAFT,21T & 17T
  • 12048
    12048-1176 TENSIONER-ASSY,CAM
    TENSIONER-ASSY,CAM
  • 12048A
    12048-1177 TENSIONER-ASSY,SECONDARY
    TENSIONER-ASSY,SECONDARY
  • 12053
    12053-1441 GUIDE-CHAIN,CAMSHAFT,TENSION
    GUIDE-CHAIN,CAMSHAFT,TENSION
  • 12053A
    12053-1442 GUIDE-CHAIN,CAMSHAFT,SLACK
    GUIDE-CHAIN,CAMSHAFT,SLACK
  • 12053B
    12053-1443 GUIDE-CHAIN,TENSION
    GUIDE-CHAIN,TENSION
  • 12053C
    12053-1444 GUIDE-CHAIN,SLACK
    GUIDE-CHAIN,SLACK
  • 13042
    13042-1141 WEIGHT,DECOMP
    WEIGHT,DECOMP
  • 13107
    13107-1443 SHAFT,CHAIN GUIDE,FR
    SHAFT,CHAIN GUIDE,FR
  • 13107A
    13107-1444 SHAFT,CHAIN GUIDE,RR
    SHAFT,CHAIN GUIDE,RR
  • 13107B
    13107-1514 SHAFT,SECONDARY
    SHAFT,SECONDARY
  • 14014
    14014-1148 PLATE-POSITION,DRIVE
    PLATE-POSITION,DRIVE
  • 49118
    49118-1193 CAMSHAFT-COMP,FR
    CAMSHAFT-COMP,FR
  • 49118A
    49118-1194 CAMSHAFT-COMP,RR
    CAMSHAFT-COMP,RR
  • 92015
    92015-1433 NUT,FLANGED,12MM
    NUT,FLANGED,12MM
  • 92033
    92033-1039 RING-SNAP,8MM
    RING-SNAP,8MM
  • 92055
    92055-086 RING-O,18.8X1.9
    RING-O,18.8X1.9
  • 92057
    92057-1487 CHAIN,CAM SHAFT
    CHAIN,CAM SHAFT
  • 92057A
    92057-1488 CHAIN,SECONDARY SHAFT
    CHAIN,SECONDARY SHAFT
  • 92145
    92145-1303 SPRING,DECOMP
    SPRING,DECOMP
  • 92153
    92153-1200 BOLT,SOCKET,6X24.5
    BOLT,SOCKET,6X24.5
