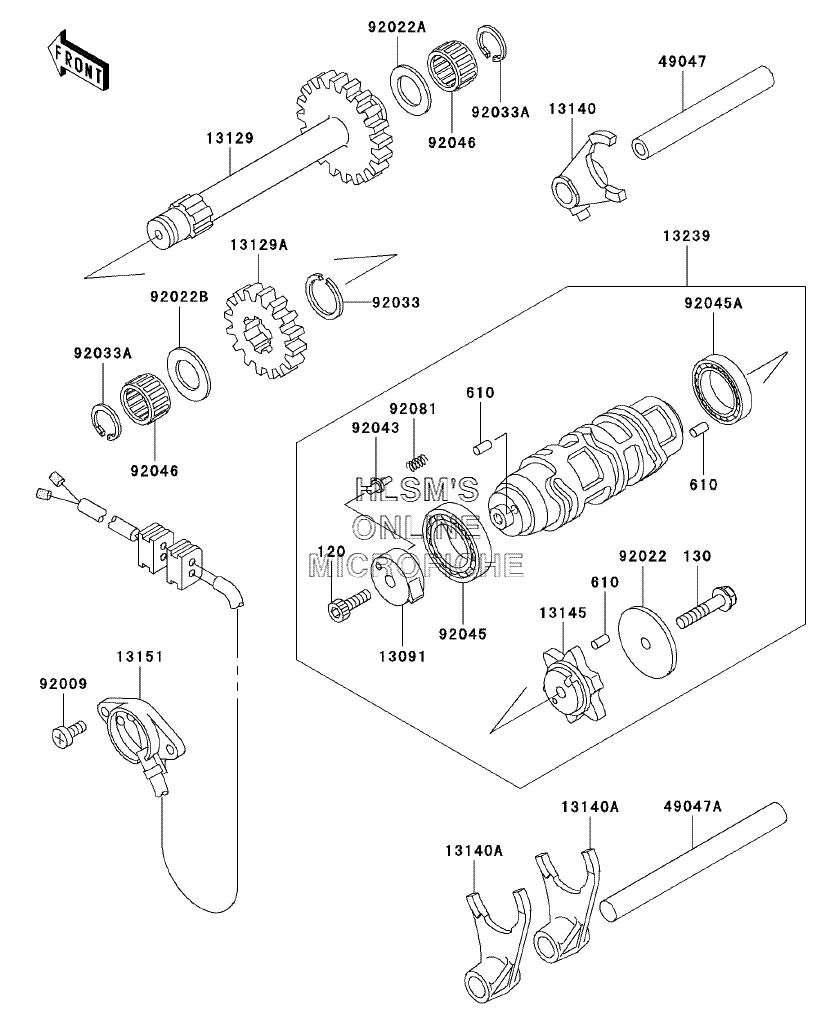

GEAR CHANGE DRUM/SHIFT FORK(S) для Kawasaki Lakota Sport (KEF300-B3) - 2003 года выпуска`
-
№АртикулНазвание
-
120120Q0620 BOLT-SOCKET, 6X20BOLT-SOCKET, 6X20
-
130130G0630 BOLT-FLANGED, 6X30BOLT-FLANGED, 6X30
-
610610A0410 ROLLER, 4X10ROLLER, 4X10
-
1309113091-1443 HOLDER, NEUTRAL SWITCHHOLDER, NEUTRAL SWITCH
-
1312913129-1705 GEAR-REVERSEGEAR-REVERSE
-
13129A13129-1706 GEAR-REVERSE (20 TEETH)GEAR-REVERSE (20 TEETH)
-
1314013140-1134 FORK-SHIFTFORK-SHIFT
-
13140A13140-1135 FORK-SHIFTFORK-SHIFT
-
1314513145-1057 CAM-CHANGE DRUMCAM-CHANGE DRUM
-
1315113151-1097 SWITCH-COMPSWITCH-COMP
-
1323913239-1154 DRUM-ASSY-CHANGEDRUM-ASSY-CHANGE
-
4904749047-1003 ROD-SHIFT, L=93.7ROD-SHIFT, L=93.7
-
49047A49047-1062 ROD-SHIFTROD-SHIFT
-
9200992009-1341 SCREW, 5X14SCREW, 5X14
-
9202292022-1500 WASHER, 6.2X38X1.2WASHER, 6.2X38X1.2
-
92022A92022-255 WASHER, 17.3X28X1WASHER, 17.3X28X1
-
92022B92022-270 WASHER, 17.3X30X1.4WASHER, 17.3X30X1.4
-
9203392033-025 RING-SNAP, 20X25.5X1.2RING-SNAP, 20X25.5X1.2
-
92033A92033-032 RING-SNAPRING-SNAP
-
9204392043-1287 PINPIN
-
9204592045-1122 BEARING-BALL, 6805BEARING-BALL, 6805
-
92045A92045-1150 BEARING-BALL, 6905X1BEARING-BALL, 6905X1
-
9204692046-1184 BEARING-NEEDLE, K17X23X13.8BEARING-NEEDLE, K17X23X13.8
-
9208192081-1763 SPRINGSPRING
