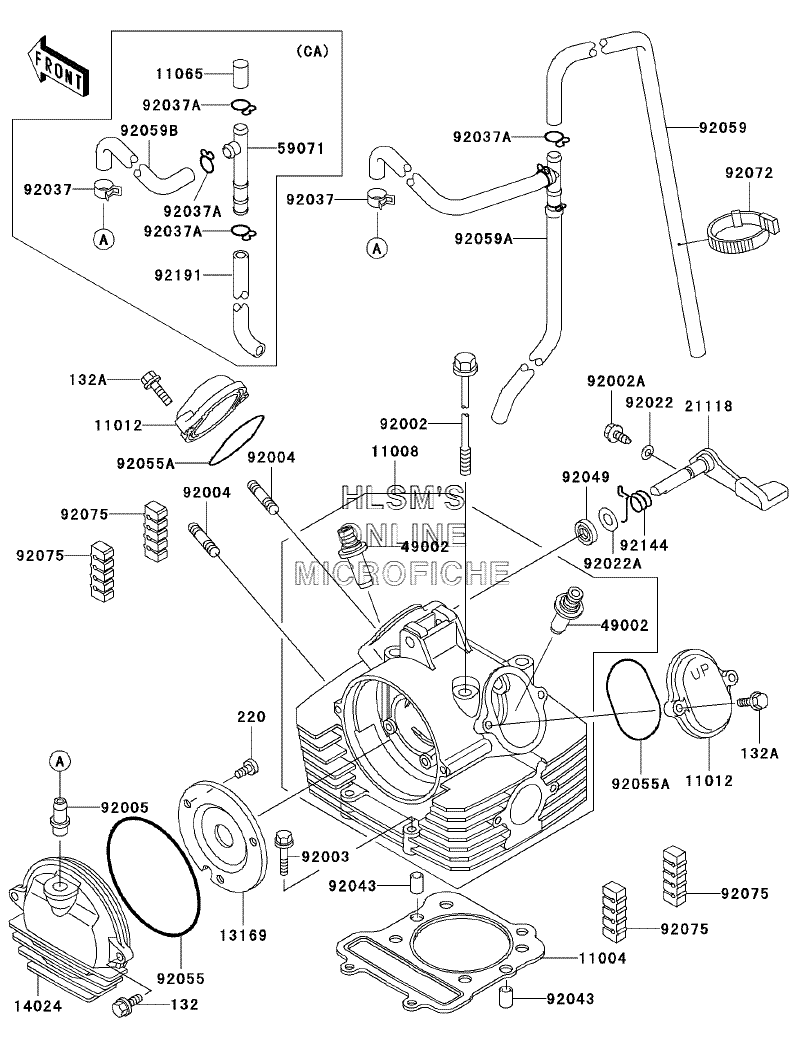

CYLINDER HEAD для Kawasaki Lakota Sport (KEF300-B3) - 2003 года выпуска

  • №
    Артикул
    Название
  • 132
    132Y0616 BOLT-FLANGED-SMALL
    BOLT-FLANGED-SMALL
  • 132A
    132Y0625 BOLT-FLANGED-SMALL
    BOLT-FLANGED-SMALL
  • 220
    220B0610 SCREW-PAN-CROS, 6X10
    SCREW-PAN-CROS, 6X10
  • 11004
    11004-1340 GASKET-HEAD
    GASKET-HEAD
  • 11008
    11008-1292 HEAD-COMP-CYLINDER
    HEAD-COMP-CYLINDER
  • 11012
    11012-1486 CAP, ROCKER ARM
    CAP, ROCKER ARM
  • 11065
    11065-1075 CAP (CALIF. ONLY)
    CAP (CALIF. ONLY)
  • 13169
    13169-1961 PLATE, CAMSHAFT COVER
    PLATE, CAMSHAFT COVER
  • 14024
    14024-1060 COVER, CAMSHAFT
    COVER, CAMSHAFT
  • 21118
    21118-1062 DECOMPRESSOR, LEVER
    DECOMPRESSOR, LEVER
  • 49002
    49002-1092 GUIDE-VALVE
    GUIDE-VALVE
  • 59071
    59071-1124 JOINT (CALIF. ONLY)
    JOINT (CALIF. ONLY)
  • 92002
    92002-1515 BOLT, 8X233
    BOLT, 8X233
  • 92002A
    92002-1962 BOLT, DECOMPRESSOR
    BOLT, DECOMPRESSOR
  • 92003
    92003-229 BOLT, FLANGED, 6X32
    BOLT, FLANGED, 6X32
  • 92004
    92004-1121 STUD, 8X30
    STUD, 8X30
  • 92005
    92005-1124 FITTING, BREATHER PIPE
    FITTING, BREATHER PIPE
  • 92022
    92022-077 WASHER, 6.1X12X1
    WASHER, 6.1X12X1
  • 92022A
    92022-1649 WASHER, 10.2X20X0.5
    WASHER, 10.2X20X0.5
  • 92037
    92037-1181 CLAMP
    CLAMP
  • 92037A
    92037-1271 CLAMP, FUEL TUBE (EXCEPT CALIF)
    CLAMP, FUEL TUBE (EXCEPT CALIF)
  • 92037A
    92037-1271 CLAMP, FUEL TUBE (CALIF. ONLY)
    CLAMP, FUEL TUBE (CALIF. ONLY)
  • 92043
    92043-1264 PIN, 8.2X10X14
    PIN, 8.2X10X14
  • 92049
    92049-1542 SEAL-OIL
    SEAL-OIL
  • 92055
    92055-107 RING-O, 99MM
    RING-O, 99MM
  • 92055A
    92055-112 RING-O, 53.5X2.6
    RING-O, 53.5X2.6
  • 92059
    92059-1511 TUBE, BREATHER (EXCEPT CALIF)
    TUBE, BREATHER (EXCEPT CALIF)
  • 92059A
    92059-1787 TUBE, ASSY (EXCEPT CALIF)
    TUBE, ASSY (EXCEPT CALIF)
  • 92059B
    92059-1789 TUBE (CALIF. ONLY)
    TUBE (CALIF. ONLY)
  • 92072
    92072-031 BAND, L=149 (EXCEPT CALIF)
    BAND, L=149 (EXCEPT CALIF)
  • 92075
    92075-1657 DAMPER
    DAMPER
  • 92144
    92144-1154 SPRING, DECOMPRESSOR
    SPRING, DECOMPRESSOR
  • 92191
    92191-1170 TUBE (CALIF. ONLY)
    TUBE (CALIF. ONLY)
