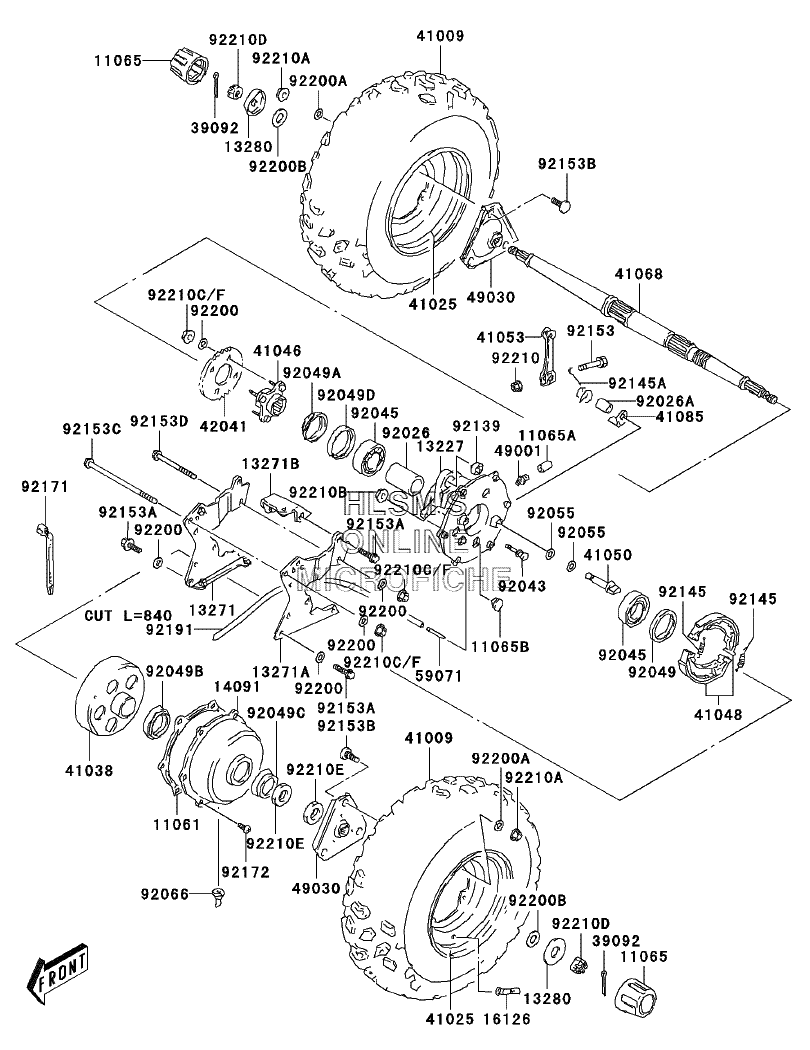

REAR HUB для Kawasaki KFX80 (KSF80-A1) - 2003 года выпуска

  • №
    Артикул
    Название
  • 11061
    11061-S067 GASKET, REAR BRAKE DRUM
    GASKET, REAR BRAKE DRUM
  • 11065
    11065-S022 CAP, WHEEL
    CAP, WHEEL
  • 11065A
    11065-S028 CAP, GREASE NIPPLE
    CAP, GREASE NIPPLE
  • 11065B
    11065-S029 CAP, HOUSING SEAL
    CAP, HOUSING SEAL
  • 13227
    13227-S003 HOUSING, REAR AXLE
    HOUSING, REAR AXLE
  • 13271
    13271-S043 PLATE, REAR AXLE HOUSING (RIGHT)
    PLATE, REAR AXLE HOUSING (RIGHT)
  • 13271A
    13271-S044 PLATE, REAR AXLE HOUSING (LEFT)
    PLATE, REAR AXLE HOUSING (LEFT)
  • 13271B
    13271-S045 PLATE, MUFFLER
    PLATE, MUFFLER
  • 13280
    13280-S017 HOLDER, CENTER CAP
    HOLDER, CENTER CAP
  • 14091
    14091-S077 COVER, BRAKE DRUM
    COVER, BRAKE DRUM
  • 16126
    16126-S008 VALVE, WHEEL RIM
    VALVE, WHEEL RIM
  • 39092
    39092-S010 PIN-HAIR, REAR HUB
    PIN-HAIR, REAR HUB
  • 41009
    41009-S011 TIRE, AT19X7-8(DUNLOP)
    TIRE, AT19X7-8(DUNLOP)
  • 41025
    41025-S007-530 RIM, FRONT WHEEL, B.SILVER
    RIM, FRONT WHEEL, B.SILVER
  • 41038
    41038-S002 DRUM, REAR BRAKE
    DRUM, REAR BRAKE
  • 41046
    41046-S003 HOUSING-BEARING
    HOUSING-BEARING
  • 41048
    41048-S006 SHOE-BRAKE
    SHOE-BRAKE
  • 41050
    41050-S006 CAM-BRAKE, REAR BRAKE
    CAM-BRAKE, REAR BRAKE
  • 41053
    41053-S007 LEVER-BRAKE CAM
    LEVER-BRAKE CAM
  • 41068
    41068-S008 AXLE, RR
    AXLE, RR
  • 41085
    41085-S004 INDICATOR
    INDICATOR
  • 42041
    42041-S005 SPROCKET-HUB (22 TEETH)
    SPROCKET-HUB (22 TEETH)
  • 49001
    49001-S002 NIPPLE-GREASE
    NIPPLE-GREASE
  • 49030
    49030-S002 HUB, REAR
    HUB, REAR
  • 59071
    59071-S004 JOINT, BREATHER HOSE
    JOINT, BREATHER HOSE
  • 92026
    92026-S074 SPACER, REAR AXLE
    SPACER, REAR AXLE
  • 92026A
    92026-S077 SPACER, REAR BRAKE CAM
    SPACER, REAR BRAKE CAM
