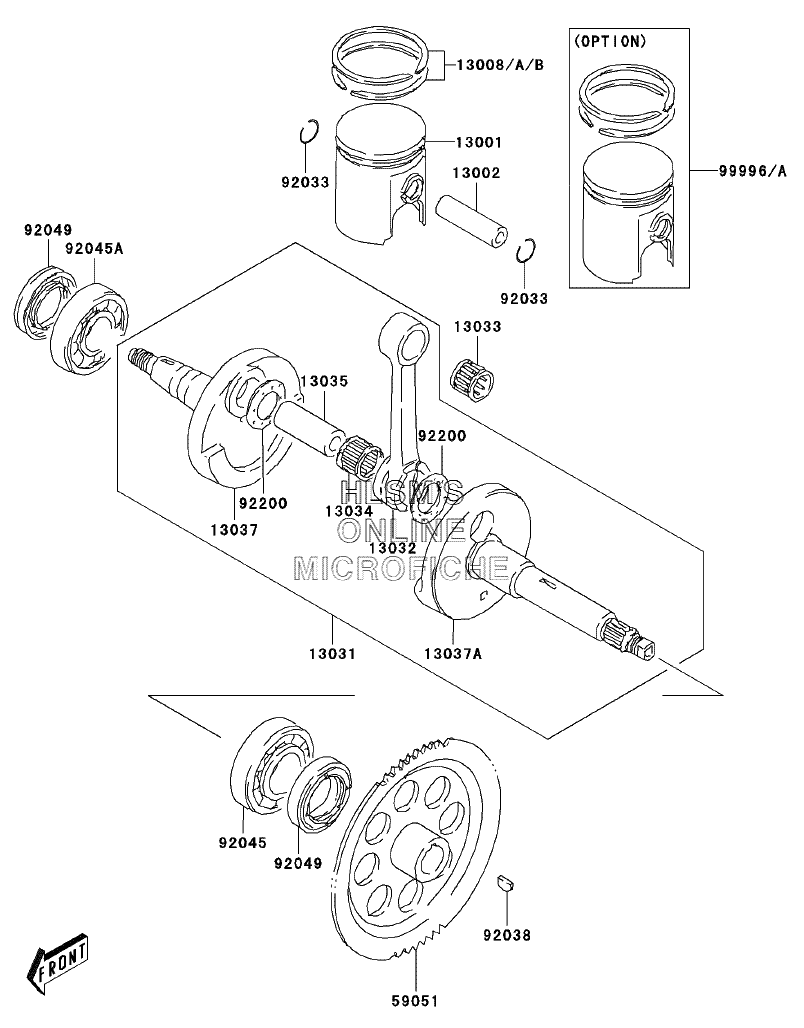

CRANKSHAFT для Kawasaki KFX80 (KSF80-A1) - 2003 года выпуска

  • №
    Артикул
    Название
  • 13001
    13001-S005 PISTON-ENGINE
    PISTON-ENGINE
  • 13002
    13002-S005 PIN-PISTON
    PIN-PISTON
  • 13008
    13008-S005 RING-SET-PISTON( STD)
    RING-SET-PISTON( STD)
  • 13008A
    13008-S006 RING-SET-PISTON (O/S 0.50) (OPT)
    RING-SET-PISTON (O/S 0.50) (OPT)
  • 13008B
    13008-S007 RING-SET-PISTON (O/S 1.00) (OPT)
    RING-SET-PISTON (O/S 1.00) (OPT)
  • 13031
    13031-S005 CRANKSHAFT-COMP
    CRANKSHAFT-COMP
  • 13032
    13032-S006 ROD-CONNECTING
    ROD-CONNECTING
  • 13033
    13033-S001 BEARING-SMALL END
    BEARING-SMALL END
  • 13034
    13034-S005 BEARING-BIG END
    BEARING-BIG END
  • 13035
    13035-S005 PIN-CRANK
    PIN-CRANK
  • 13037
    13037-S009 CRANKSHAFT (RIGHT)
    CRANKSHAFT (RIGHT)
  • 13037A
    13037-S010 CRANKSHAFT (LEFT)
    CRANKSHAFT (LEFT)
  • 59051
    59051-S004 GEAR-SPUR, STARTER
    GEAR-SPUR, STARTER
  • 92033
    92033-S024 RING-SNAP, PISTON PIN
    RING-SNAP, PISTON PIN
  • 92038
    92038-S001 KEY, MAGNETO ROTOR
    KEY, MAGNETO ROTOR
  • 92045
    92045-S017 BEARING-BALL, 20X47X14
    BEARING-BALL, 20X47X14
  • 92045A
    92045-S039 BEARING-BALL, CRANKSHAFT (RIGHT)
    BEARING-BALL, CRANKSHAFT (RIGHT)
  • 92049
    92049-S034 SEAL-OIL, CRANKSHAFT
    SEAL-OIL, CRANKSHAFT
  • 92200
    92200-S105 WASHER
    WASHER
  • 99996
    99996-S010 PISTON SET (O/S 0.50) (OPT)
    PISTON SET (O/S 0.50) (OPT)
  • 99996A
    99996-S011 PISTON SET (O/S 1.00) (OPT)
    PISTON SET (O/S 1.00) (OPT)
