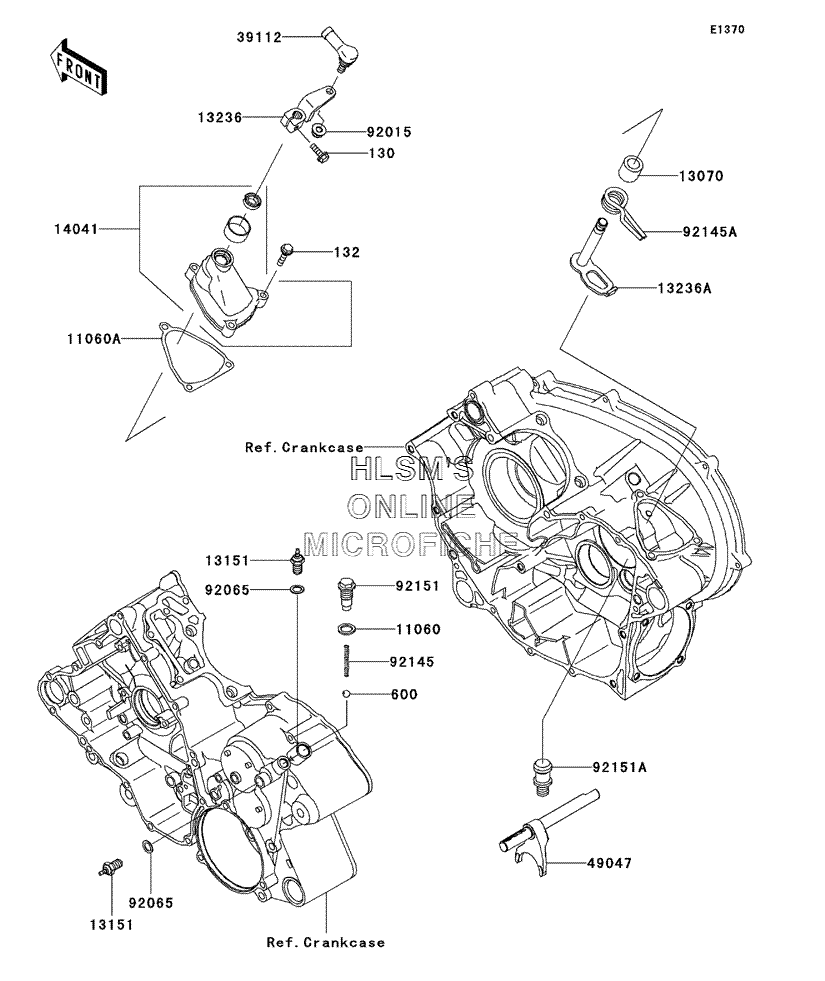

GEAR CHANGE MECHANISM для Kawasaki Prairie 650 4x4 (KVF650-B1) - 2002 года выпуска

  • №
    Артикул
    Название
  • 130
    130Z0620 BOLT-FLANGED
    BOLT-FLANGED
  • 132
    132Y0630 BOLT-FLANGED-SMALL
    BOLT-FLANGED-SMALL
  • 600
    600A1000 BALL-STEEL, 5/16"
    BALL-STEEL, 5/16"
  • 11060
    11060-1287 GASKET, ROCKER SHAFT
    GASKET, ROCKER SHAFT
  • 11060A
    11060-1956 GASKET, CHANGE LEVER COVER
    GASKET, CHANGE LEVER COVER
  • 13070
    13070-1352 GUIDE
    GUIDE
  • 13151
    13151-1080 SWITCH-COMP, NEUTRAL
    SWITCH-COMP, NEUTRAL
  • 13236
    13236-1343 LEVER-COMP, CHANGE LEVER
    LEVER-COMP, CHANGE LEVER
  • 13236A
    13236-1377 LEVER-COMP, CHANGE
    LEVER-COMP, CHANGE
  • 14041
    14041-1136 COVER-COMP, CHANGE LEVER
    COVER-COMP, CHANGE LEVER
  • 39112
    39112-1080 RODEND-TIE, CHANGE LEVER
    RODEND-TIE, CHANGE LEVER
  • 49047
    49047-1104 ROD-SHIFT
    ROD-SHIFT
  • 92015
    92015-1432 NUT, 8MM
    NUT, 8MM
  • 92065
    92065-058 GASKET, 10.5X16X1
    GASKET, 10.5X16X1
  • 92145
    92145-1297 SPRING, CHANGE POSITION
    SPRING, CHANGE POSITION
  • 92145A
    92145-1299 SPRING, CHANGE LEVER
    SPRING, CHANGE LEVER
  • 92151
    92151-1687 BOLT, CHANGE POSITION
    BOLT, CHANGE POSITION
  • 92151A
    92151-1699 BOLT, SHIFT ROD
    BOLT, SHIFT ROD
