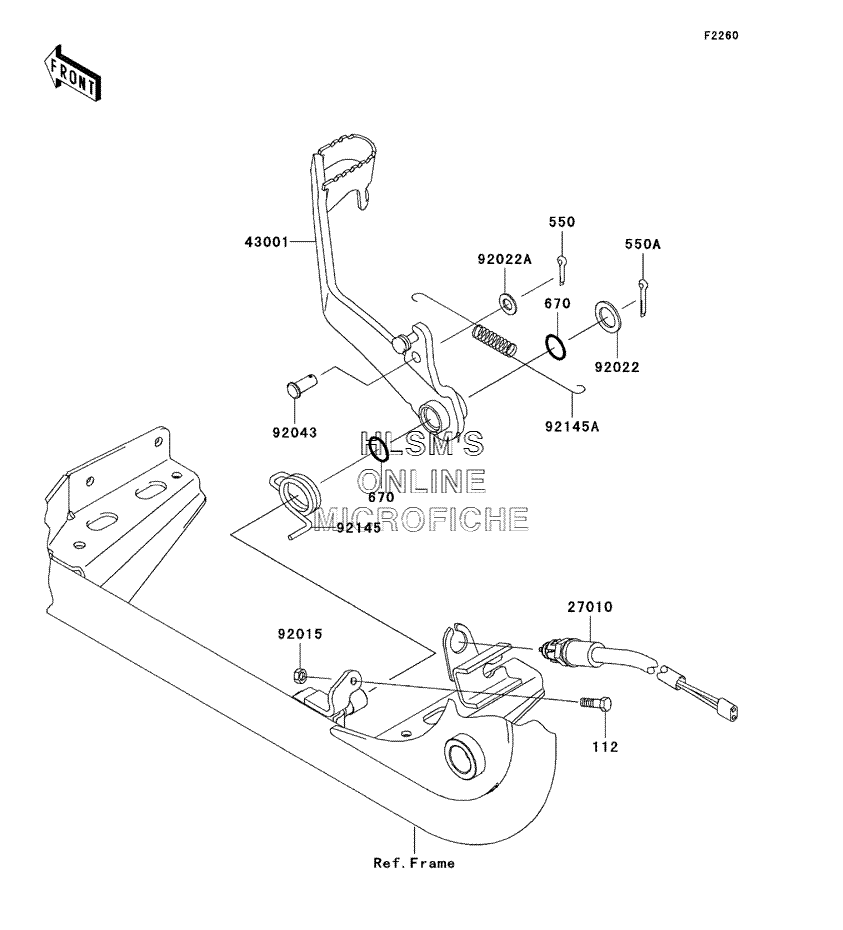

BRAKE PEDAL для Kawasaki Prairie 650 4x4 (KVF650-B1) - 2002 года выпуска
-
№АртикулНазвание
-
112112G0620 BOLT-UPSETBOLT-UPSET
-
550550D2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
550A550D2022 PIN-COTTER, 2.0X22PIN-COTTER, 2.0X22
-
670670B2015 O RING, 15MMO RING, 15MM
-
2701027010-1301 SWITCH, BRAKE LAMPSWITCH, BRAKE LAMP
-
4300143001-1441 LEVER-BRAKE, PEDALLEVER-BRAKE, PEDAL
-
9201592015-1410 NUT, 6MMNUT, 6MM
-
9202292022-1049 WASHER, 15.5X24X1.6WASHER, 15.5X24X1.6
-
92022A92022-1582 WASHER, 8.5X16X1.2WASHER, 8.5X16X1.2
-
9204392043-1013 PIN, 8X16PIN, 8X16
-
9214592145-1421 SPRING, BRAKE PEDAL RETURNSPRING, BRAKE PEDAL RETURN
-
92145A92145-1422 SPRING, BRAKE SWITCHSPRING, BRAKE SWITCH
