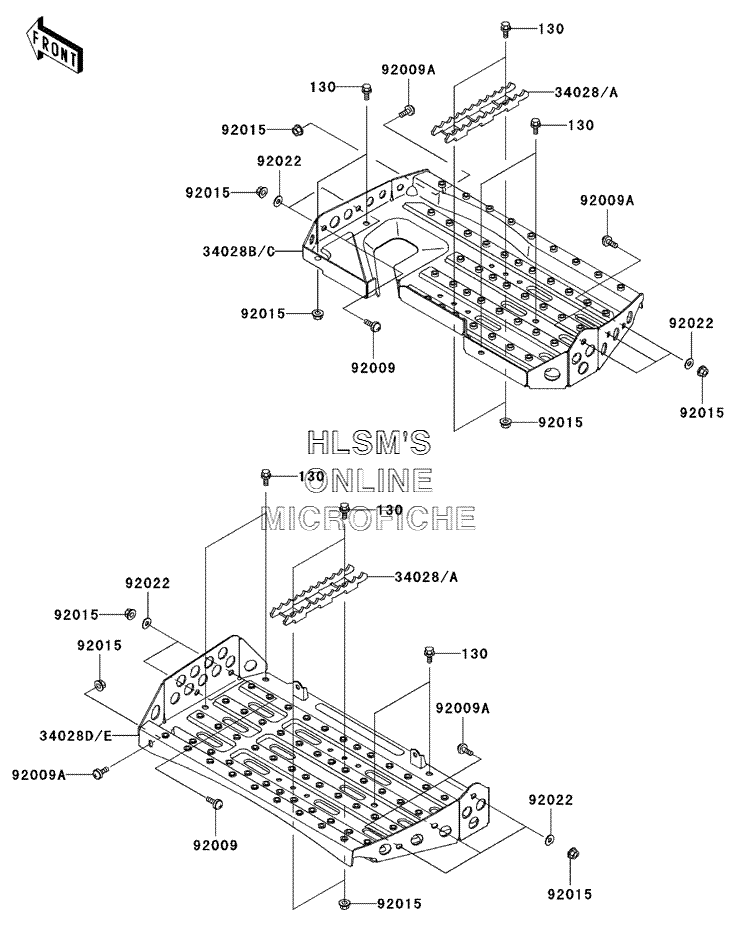

FOOTRESTS для Kawasaki Prairie 650 4x4 (KVF650-A1) - 2002 года выпуска
-
№АртикулНазвание
-
130130J0614 BOLT-FLANGED, 6X14 (BLACK)BOLT-FLANGED, 6X14 (BLACK)
-
3402834028-1487-UF STEP, FOOT PEG (S.GOLD)STEP, FOOT PEG (S.GOLD)
-
34028A34028-1487-5A STEP, FOOT PEG (SILVER)STEP, FOOT PEG (SILVER)
-
34028B34028-1513-UF STEP (RIGHT) (S.GOLD)STEP (RIGHT) (S.GOLD)
-
34028C34028-1513-5A STEP (RIGHT) (SILVER)STEP (RIGHT) (SILVER)
-
34028D34028-1521-UF STEP (LEFT) (S.GOLD)STEP (LEFT) (S.GOLD)
-
34028E34028-1521-5A STEP (LEFT) (SILVER)STEP (LEFT) (SILVER)
-
9200992009-1181 SCREW, 6X18 (BLACK)SCREW, 6X18 (BLACK)
-
92009A92009-1621 SCREW, 6X16SCREW, 6X16
-
9201592015-1367 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9202292022-1093 WASHER, 6.5X16X1.0WASHER, 6.5X16X1.0
