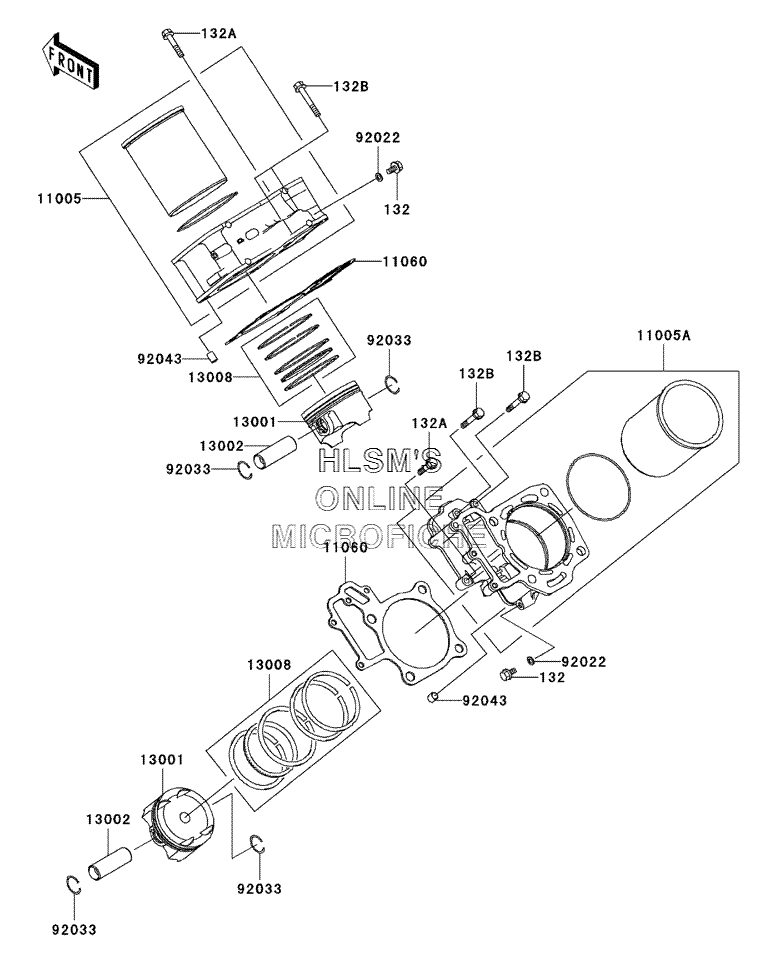

CYLINDER/PISTON(S) для Kawasaki Prairie 650 4x4 (KVF650-A1) - 2002 года выпуска`
-
№АртикулНазвание
-
132132Y0612 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132A132Y0630 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132B132Y0640 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
1100511005-1918 CYLINDER-ENGINE, FRONTCYLINDER-ENGINE, FRONT
-
11005A11005-1920 CYLINDER-ENGINE, REARCYLINDER-ENGINE, REAR
-
1106011060-1965 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
1300113001-1574 PISTON-ENGINEPISTON-ENGINE
-
1300213002-1060 PIN-PISTONPIN-PISTON
-
1300813008-1198 RING-SET-PISTONRING-SET-PISTON
-
9202292022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9203392033-1207 RING-SNAPRING-SNAP
-
9204392043-4009 PIN, 10.1X12X14PIN, 10.1X12X14
