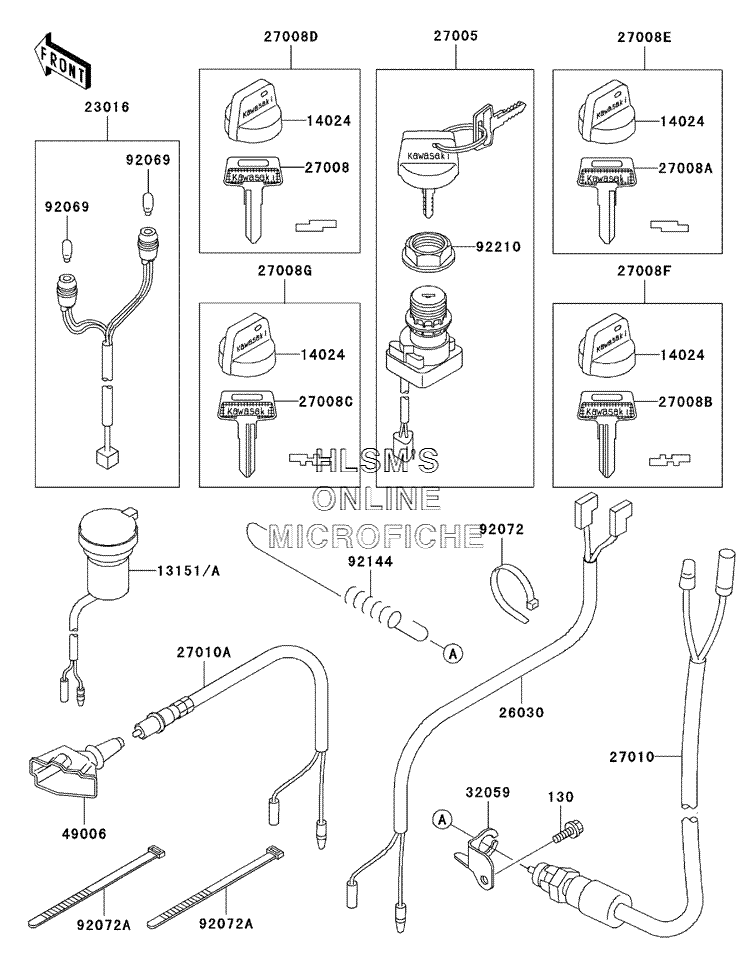

IGNITION SWITCH для Kawasaki Prairie 400 4x4 (KVF400-C4) - 2002 года выпуска

  • №
    Артикул
    Название
  • 130
    130J0610 BOLT-FLANGED, 6X10
    BOLT-FLANGED, 6X10
  • 13151A
    13151-1094 SWITCH-COMP, D.C.TERMINAL
    SWITCH-COMP, D.C.TERMINAL
  • 14024
    14024-1551 COVER, KEY (OPT)
    COVER, KEY (OPT)
  • 23016
    23016-1083 LAMP-ASSY, NEUTRAL AND REVERSE
    LAMP-ASSY, NEUTRAL AND REVERSE
  • 26030
    26030-1058 HARNESS
    HARNESS
  • 27005
    27005-1229 SWITCH-ASSY-IGNITION
    SWITCH-ASSY-IGNITION
  • 27008
    27008-1041 KEY-LOCK, BLANK (OPT)
    KEY-LOCK, BLANK (OPT)
  • 27008A
    27008-1042 KEY-LOCK, BLANK (OPT)
    KEY-LOCK, BLANK (OPT)
  • 27008B
    27008-1043 KEY-LOCK, BLANK (OPT)
    KEY-LOCK, BLANK (OPT)
  • 27008C
    27008-1044 KEY-LOCK, BLANK (OPT)
    KEY-LOCK, BLANK (OPT)
  • 27008D
    27008-1132 KEY-LOCK, BLANK, W/COVER (OPT)
    KEY-LOCK, BLANK, W/COVER (OPT)
  • 27008E
    27008-1133 KEY-LOCK, BLANK, W/COVER (OPT)
    KEY-LOCK, BLANK, W/COVER (OPT)
  • 27008F
    27008-1134 KEY-LOCK, BLANK, W/COVER (OPT)
    KEY-LOCK, BLANK, W/COVER (OPT)
  • 27008G
    27008-1135 KEY-LOCK, BLANK, W/COVER (OPT)
    KEY-LOCK, BLANK, W/COVER (OPT)
  • 27010
    27010-025 SWITCH, BRAKE LAMP
    SWITCH, BRAKE LAMP
  • 27010A
    27010-1294 SWITCH, BRAKE
    SWITCH, BRAKE
  • 32059
    32059-1136 BRACKET-SWITCH, REAR BRAKE
    BRACKET-SWITCH, REAR BRAKE
  • 49006
    49006-1261 BOOT
    BOOT
  • 92069
    92069-1020 BULB, 12V 3W, T7
    BULB, 12V 3W, T7
  • 92072
    92072-031 BAND, L=149
    BAND, L=149
  • 92072A
    92072-056 BAND, L=186
    BAND, L=186
  • 92144
    92144-1343 SPRING, BRAKE LAMP SWITCH
    SPRING, BRAKE LAMP SWITCH
  • 92210
    92210-1109 NUT, IGNITION SWITCH
    NUT, IGNITION SWITCH
