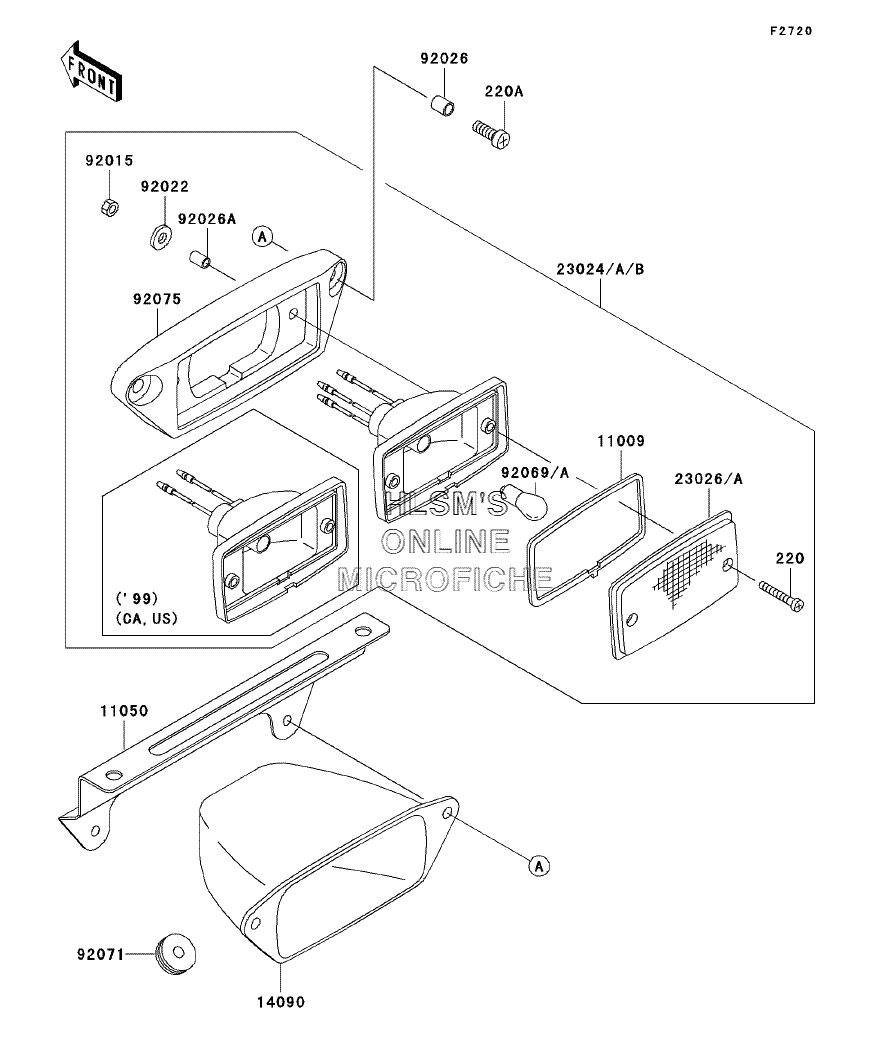

TAILLIGHT(S) для Kawasaki Prairie 300 4x4 (KVF300-A4) - 2002 года выпуска
-
№АртикулНазвание
-
220220C0430 SCREW-PAN-CROS, 4X30SCREW-PAN-CROS, 4X30
-
220A220C0620 SCREW-PAN-CROS, 6X20 (BLACK)SCREW-PAN-CROS, 6X20 (BLACK)
-
1100911009-4004 GASKET, TAIL LAMPGASKET, TAIL LAMP
-
1105011050-1718 BRACKET, TAIL LAMPBRACKET, TAIL LAMP
-
1409014090-1911 COVER, TAIL LAMPCOVER, TAIL LAMP
-
23024B23024-1131 LAMP-ASSY-TAILLAMP-ASSY-TAIL
-
2302623026-1239 LENS, TAIL LAMPLENS, TAIL LAMP
-
9201592015-1550 NUT, 4MMNUT, 4MM
-
9202292022-1762 WASHER, PLAIN, 4MMWASHER, PLAIN, 4MM
-
9202692026-1260 SPACER, 6.3X8.3X10SPACER, 6.3X8.3X10
-
92026A92026-1261 SPACER, 4.5X6.5X10SPACER, 4.5X6.5X10
-
9206992069-059 BULB, 12V 27/8WBULB, 12V 27/8W
-
9207192071-1058 GROMMET, SENSOR LEADGROMMET, SENSOR LEAD
-
9207592075-1782 DAMPER, TAIL LAMPDAMPER, TAIL LAMP
