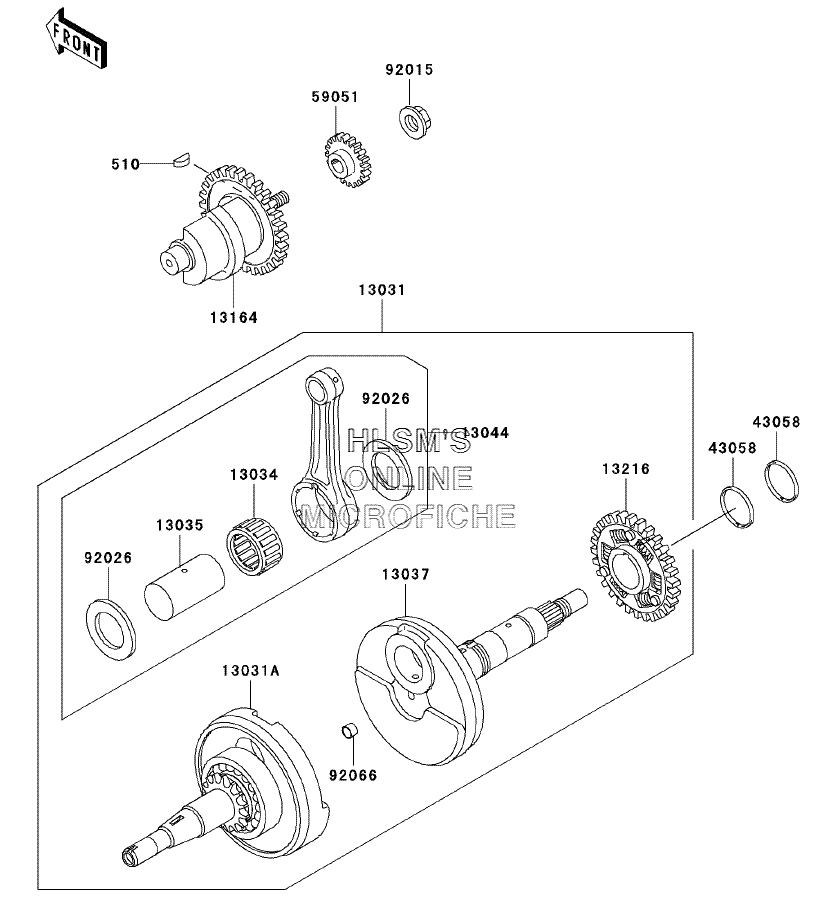

CRANKSHAFT для Kawasaki Prairie 300 4x4 (KVF300-A4) - 2002 года выпуска
-
№АртикулНазвание
-
510510A3100 KEY-WOODRUFFKEY-WOODRUFF
-
1303113031-1440 CRANKSHAFT-COMPCRANKSHAFT-COMP
-
13031A13031-1445 CRANKSHAFT-COMP (LEFT)CRANKSHAFT-COMP (LEFT)
-
1303413034-1061 BEARING-BIG END, PK32X43X22.4BEARING-BIG END, PK32X43X22.4
-
1303513035-1067 PIN-CRANKPIN-CRANK
-
1303713037-1582 CRANKSHAFT (RIGHT)CRANKSHAFT (RIGHT)
-
1304413044-5066 SET-CONNECTING RODSET-CONNECTING ROD
-
1316413164-1010 BALANCER-COMPBALANCER-COMP
-
1321613216-1171 GEAR-COMP, BALANCERGEAR-COMP, BALANCER
-
4305843058-1091 RINGRING
-
5905159051-1378 GEAR-SPUR, OIL PUMPGEAR-SPUR, OIL PUMP
-
9201592015-1428 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
9202692026-1232 SPACER, 32X51.5X1.2SPACER, 32X51.5X1.2
-
9206692066-1159 PLUG, CRANKSHAFTPLUG, CRANKSHAFT
