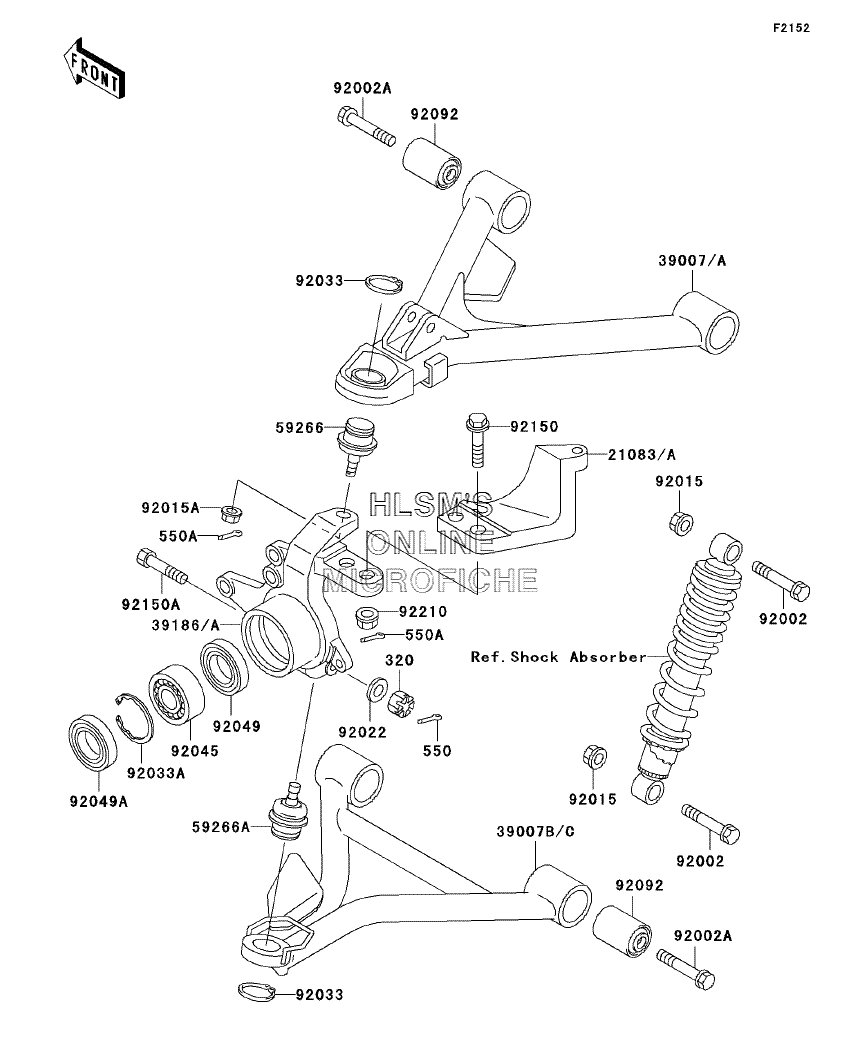

SUSPENSION - FRONT для Kawasaki Bayou 300 4x4 (KLF300-C14) - 2002 года выпуска

  • №
    Артикул
    Название
  • 320
    320H1000 NUT-CASTLE
    NUT-CASTLE
  • 550
    550D2015 PIN-COTTER, 2.0X15
    PIN-COTTER, 2.0X15
  • 550A
    550D2518 PIN-COTTER, 2.5X18
    PIN-COTTER, 2.5X18
  • 21083
    21083-1074 ARM, FRONT (LEFT)
    ARM, FRONT (LEFT)
  • 21083A
    21083-1075 ARM, FRONT (RIGHT)
    ARM, FRONT (RIGHT)
  • 39007
    39007-1159 ARM-SUSPENSION FRONT (LEFT/UPPER)
    ARM-SUSPENSION FRONT (LEFT/UPPER)
  • 39007A
    39007-1160 ARM-SUSPENSION FRONT (RIGHT/UPPER)
    ARM-SUSPENSION FRONT (RIGHT/UPPER)
  • 39007B
    39007-1246 ARM-SUSPENSION FRONT (LEFT/LOWER)
    ARM-SUSPENSION FRONT (LEFT/LOWER)
  • 39007C
    39007-1247 ARM-SUSPENSION FRONT (RIGHT/LOWER)
    ARM-SUSPENSION FRONT (RIGHT/LOWER)
  • 39186
    39186-1098 KNUCKLE, FRONT (LEFT)
    KNUCKLE, FRONT (LEFT)
  • 39186A
    39186-1099 KNUCKLE, FRONT (RIGHT)
    KNUCKLE, FRONT (RIGHT)
  • 59266
    59266-1075 JOINT-BALL
    JOINT-BALL
  • 59266A
    59266-1098 JOINT-BALL
    JOINT-BALL
  • 92002
    92002-1740 BOLT, FLANGED, 10X46
    BOLT, FLANGED, 10X46
  • 92002A
    92002-1861 BOLT, FLANGED, 12X67
    BOLT, FLANGED, 12X67
  • 92015
    92015-1597 NUT, LOCK, 10MM
    NUT, LOCK, 10MM
  • 92015A
    92015-1717 NUT, LOCK, FLANGED, 10MM
    NUT, LOCK, FLANGED, 10MM
  • 92022
    92022-1829 WASHER, 10.2X16X1
    WASHER, 10.2X16X1
  • 92033
    92033-1218 RING-SNAP, 30MM
    RING-SNAP, 30MM
  • 92033A
    92033-1274 RING-SNAP, 55MM
    RING-SNAP, 55MM
  • 92045
    92045-1222 BEARING-BALL, DAC3055C2RKCD3
    BEARING-BALL, DAC3055C2RKCD3
  • 92049
    92049-1476 SEAL-OIL, MT038N1
    SEAL-OIL, MT038N1
  • 92049A
    92049-1477 SEAL-OIL, SDD04 38 55 8
    SEAL-OIL, SDD04 38 55 8
  • 92092
    92092-1065 BUSHING-RUBBER
    BUSHING-RUBBER
  • 92150
    92150-1215 BOLT, FLANGED, 10X42
    BOLT, FLANGED, 10X42
  • 92150A
    92150-1226 BOLT, 10X44
    BOLT, 10X44
  • 92210
    92210-1204 NUT, LOCK, 10MM
    NUT, LOCK, 10MM
