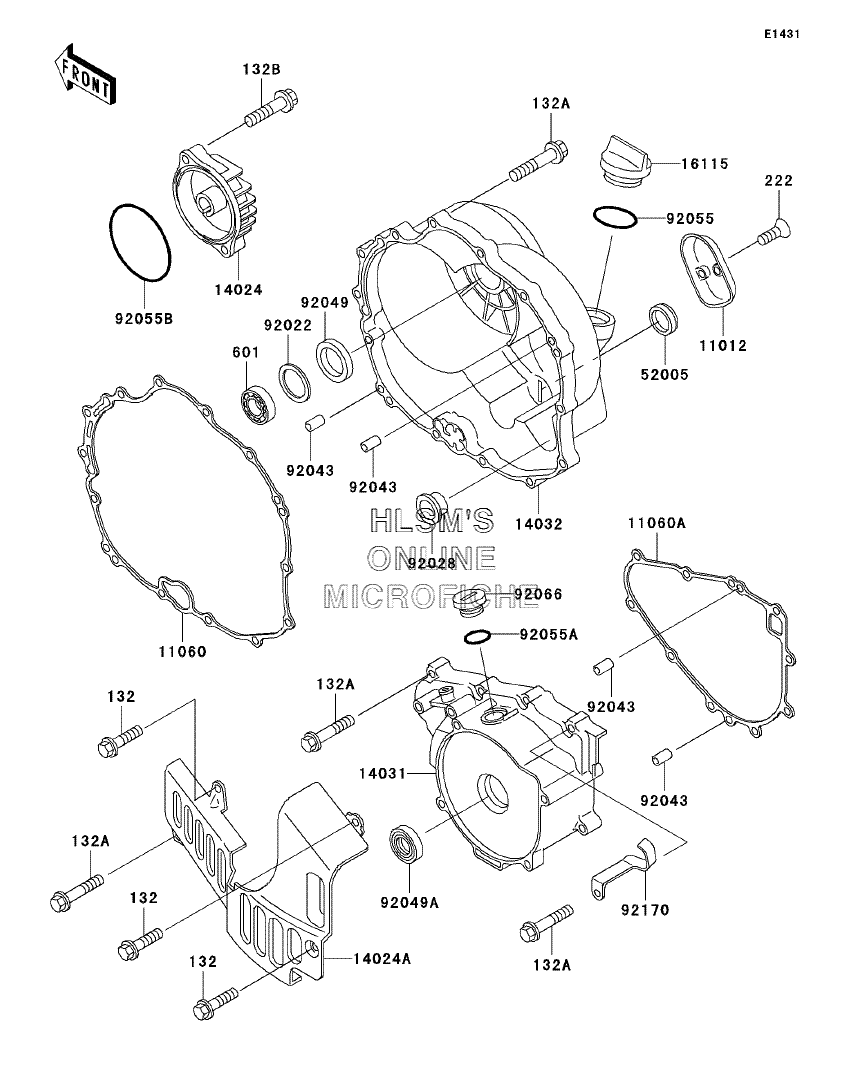

ENGINE COVER(S) для Kawasaki Bayou 300 4x4 (KLF300-C14) - 2002 года выпуска`
-
№АртикулНазвание
-
132132J0612 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132A132J0630 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132B132Y0625 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
222222C0512 SCREW-CSK-RD-CROSSCREW-CSK-RD-CROS
-
601601B6202 BEARING-BALL, #6202C3BEARING-BALL, #6202C3
-
1101211012-1644 CAP, CLUTCH RELEASECAP, CLUTCH RELEASE
-
1106011060-1715 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
11060A11060-1716 GASKET, GENERATOR COVERGASKET, GENERATOR COVER
-
1402414024-1062 COVER, OIL FILTERCOVER, OIL FILTER
-
14024A14024-1655 COVERCOVER
-
1403114031-1337 COVER-GENERATORCOVER-GENERATOR
-
1403214032-1450 COVER-CLUTCHCOVER-CLUTCH
-
1611516115-1009 CAP-OIL FILLERCAP-OIL FILLER
-
5200552005-1009 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
9202292022-1109 WASHER, 25.3X33X1WASHER, 25.3X33X1
-
9202892028-1544 BUSHINGBUSHING
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9204992049-1158 SEAL-OIL, SCY 15X30X7SEAL-OIL, SCY 15X30X7
-
92049A92049-1317 SEAL-OIL, TC25356SEAL-OIL, TC25356
-
9205592055-049 RING-O, 31.7X2.4RING-O, 31.7X2.4
-
92055A92055-1146 RING-ORING-O
-
92055B92055-1433 RING-O, 63.6X2.4RING-O, 63.6X2.4
-
9206692066-1163 PLUG, COVERPLUG, COVER
-
9217092170-1065 CLAMPCLAMP
